Description

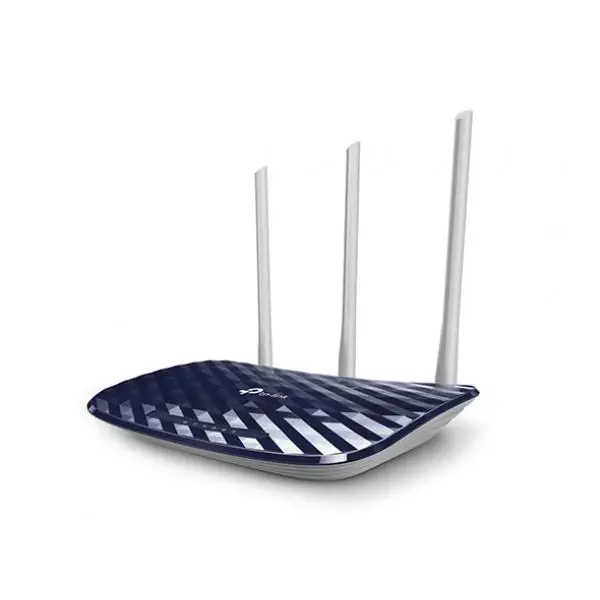

Tp Link Archer C20 Wi-Fi Router
TP Link Archer C20 AC750 is a High-Speed reliable Wi-Fi Dual Band Router with three external antennas for stable and superior wireless coverage. Sending Emails, Web Browsing, online gaming and HD video streaming all can be done effortlessly.
FEATURES
AC750 Wireless Dual Band Router
Archer C20
- Supports 802.11ac standard – the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
- 3 external antennas provide stable omnidirectional signal and superior wireless coverage
802.11ac – The Next Generation of Wi-Fi
TP-Link’s Archer C20 comes with the next generation Wi-Fi standard – 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.
733Mbps Dual Band
Connections for Lag-Free Work
With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.
Stable Omnidirectional Signal and Superior Coverage
With 3 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.
Easy Setup and Use
Set up the Archer C20 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

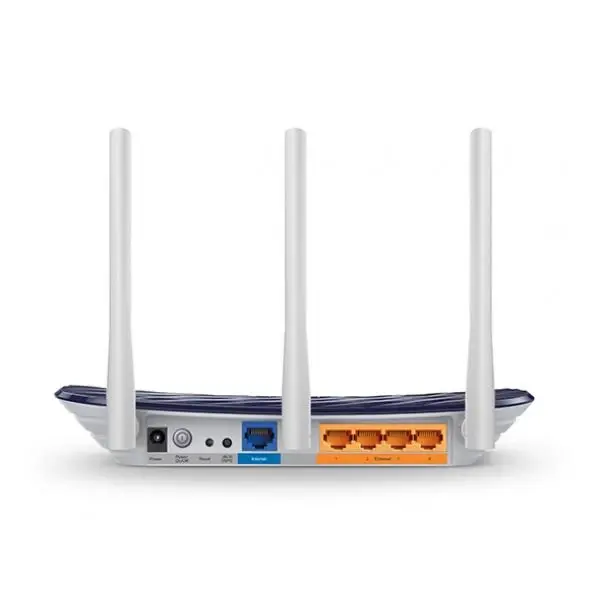

| Interface | 4 10/100Mbps LAN ports 1 10/100Mbps WAN port |
| Bluetooth | WPS/Wi-Fi Button Reset Button Power On/Off Button |
| External Power Supply | 9V/0.6A(EU), 9V/0.85A(US) |
| Dimensions (WxDxH) | 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm) |
| Antenna | 2 × 2.4GHz Antennas 1 × 5GHz Antenna |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps |
| Reception Sensitivity | 5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
| Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5GHz) |
| Software Features | |
| Quality of Service | WMM, Bandwidth Control |
| Management | Access Control Local Management Remote Management |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network × 1 5GHz guest network × 1 |
| Others | |
| Certification | CE, RoHS |
| Package Content | AC750 Wireless Dual Band Router Archer C20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Box Dimension (WxDxH) | 14 x 8.8 x 2.7 in. (357x223x68mm) |
| System Requirements | Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux
Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browsers Cable or DSL or Fiber Modem/Terminal Subscription with an Internet Service Provider (for Internet access) |
| Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Warranty | 3 Years |
| Note** | Features, Price and Specifications are subject to change without notice.*** |
