Description
Thermaltake Vision 330 CR ARGB Snow ATX Mid Tower Case

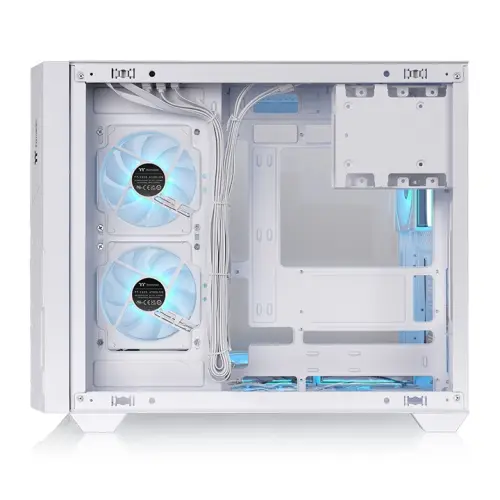

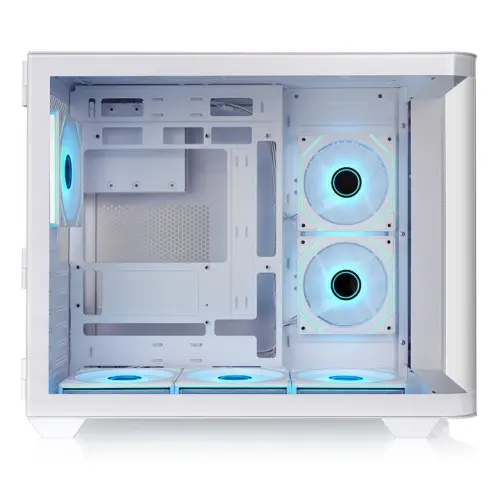

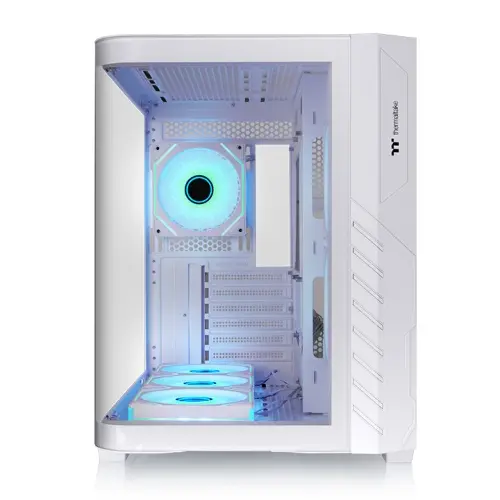

Built for amazing views, the Vision 330 CR ARGB Snow Mid Tower Chassis is an ATX case with a curved tempered glass front and left panel, and comes with five 120mm Infinity ARGB Reverse PWM Fans on the MB side and bottom, along with one 120mm Infinity ARGB PWM Fan at rear.
| P/N | CA-11V-00M6WN-00 | |
|---|---|---|
| CASE TYPE | Mid Tower | |
| Dimension (H x W x D) | 388 x 295 x 479.4 mm (15.28 x 11.61 x 18.87 inch) |
|
| PANEL | 4mm Curved Tempered Glass x 1 | |
| MATERIAL | SPCC | |
| COOLING SYSTEM | Right(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 2 Bottom(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 1 |
|
| Drive Bays | 2 x 3.5”, 2 x 2.5” | |
| EXPANSION SLOTS | 6 | |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) | |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) | |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 | |
| PSU | Standard PS2 PSU (optional) | |
| FAN SUPPORT | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mmRight (M/B Side): 2 x 120mm, 1 x 120mmBottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mmRear: 1 x 120mm 1 x 140mm |
|
| RADIATOR SUPPORT | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mmRight (M/B Side): 1 x 240mm, 1 x 120mm |
|
| CLEARANCE | CPU cooler max height: 175mm VGA max length: 420mm PSU max length: 250mm |
|
| Warranty | 3 Years | |
| Note** |
|
