Description

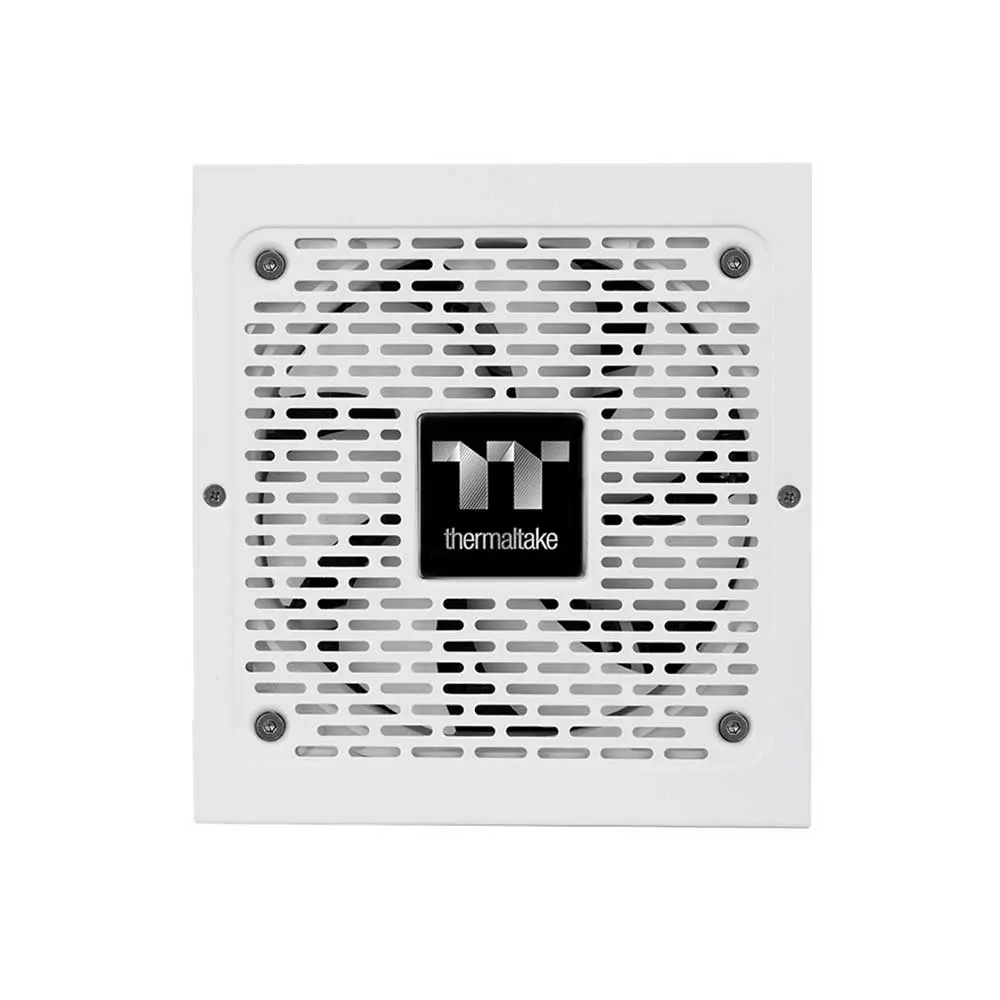

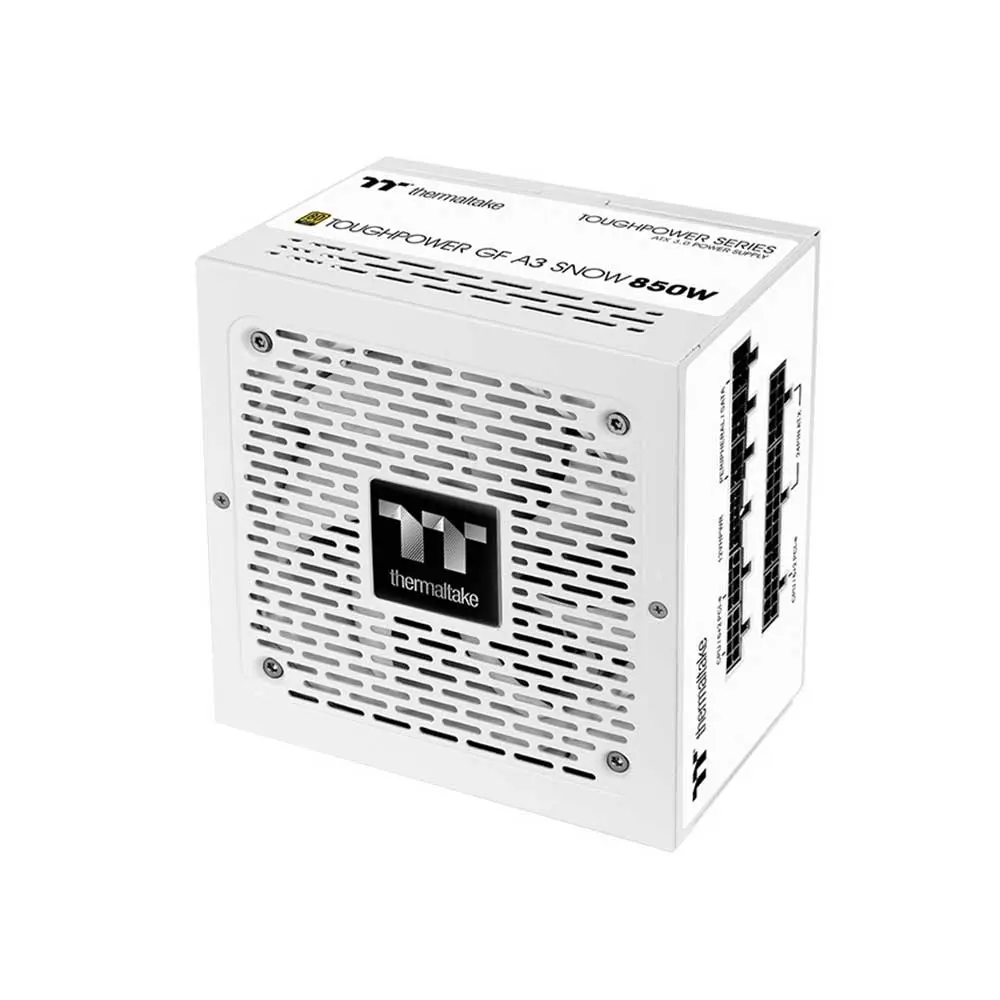

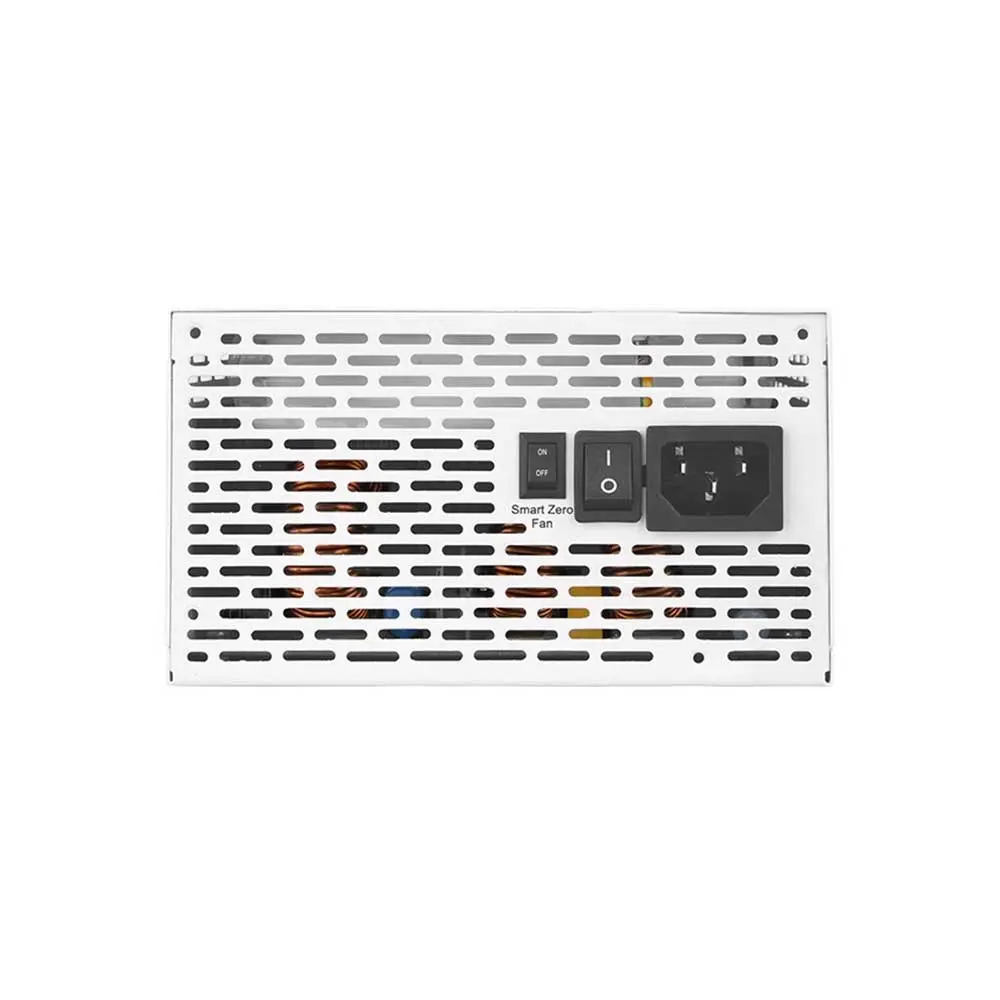

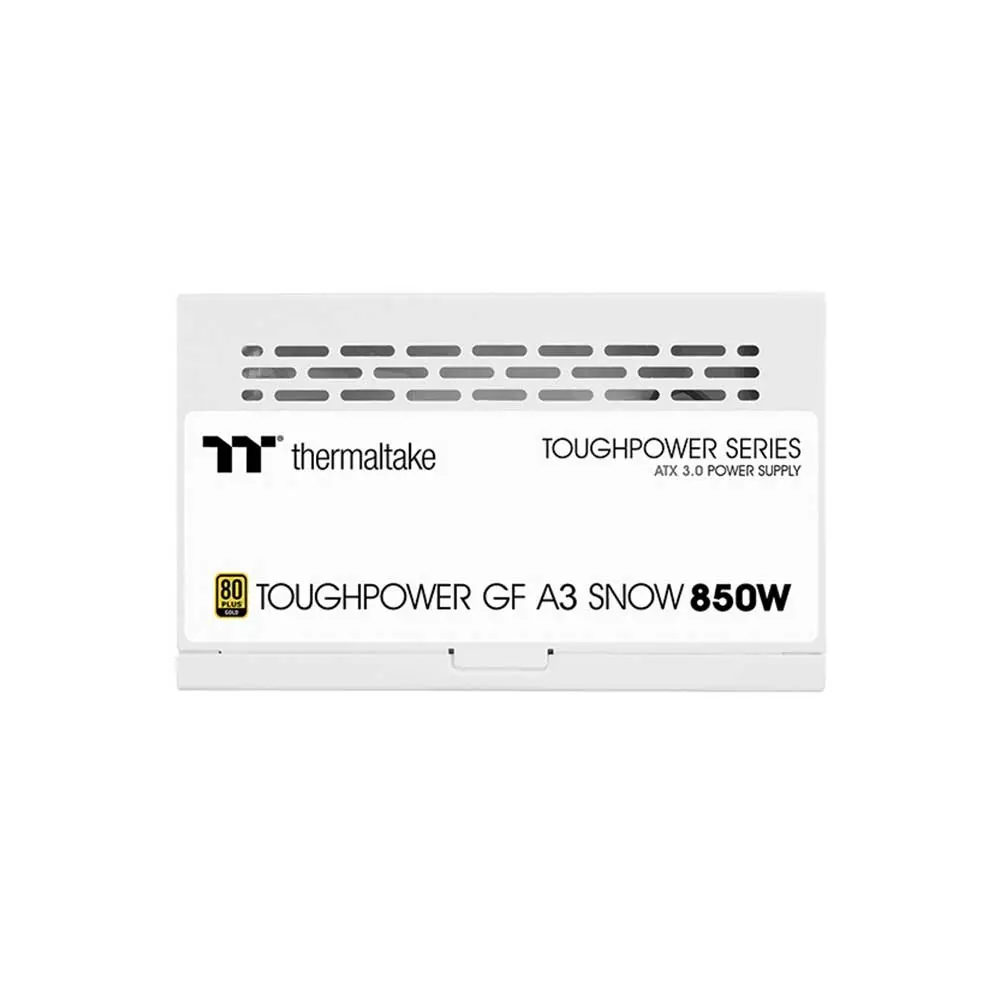

Thermaltake Toughpower GF A3 Snow 850 Watt TT Premium Edition Power Supply
Toughpower GF A3 Snow 850 Watt is 80 PLUS Gold certified and compatible with Intel’s ATX 3.1 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.
| P/N | PS-TPD-0850FNFAGx-N |
| watts | 850W |
| Model | TTP-0850AH2FLG |
| Max. Output Capacity | 850W |
| Color | White |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 100 – 240Vac |
| OPERATING TEMPERATURE | 5°C to + 45°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC/EAC |

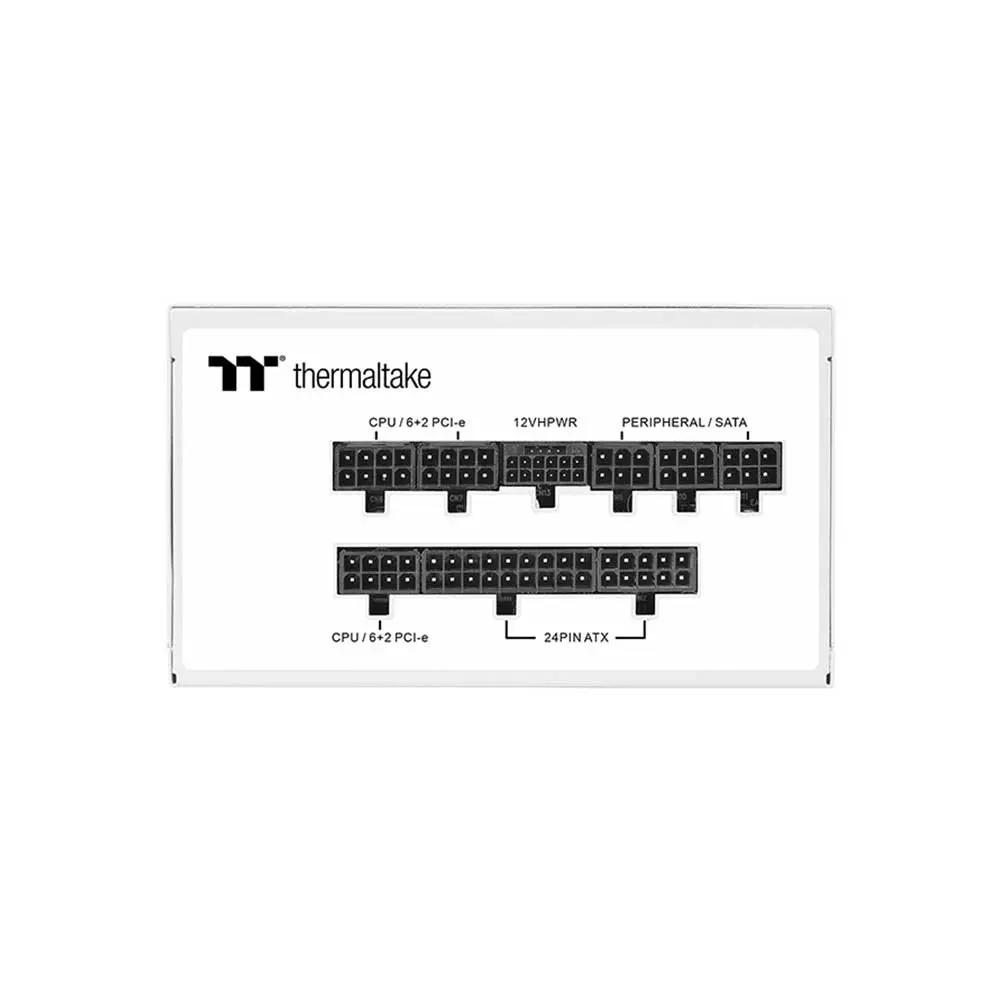

| PCI-E 6+2pin | 4 |
| PCIe 12+4pin | 1(450W) |
| Input current | 15A-8A |
