Thermaltake Minecube 360 Ultra ARGB Sync White CPU Liquid Cooler (CL-W482-PL12SW-A)

Description

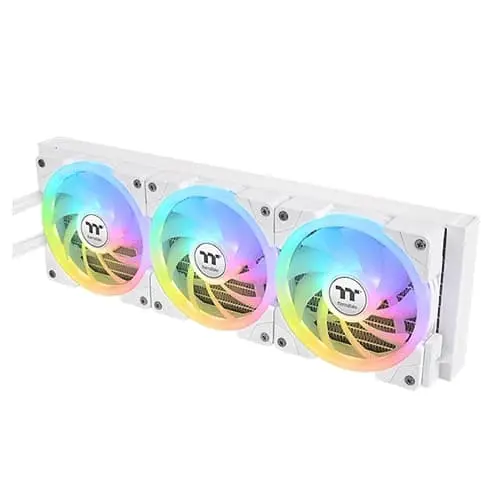

Thermaltake Minecube 360 Ultra ARGB Sync White CPU Liquid Cooler

Thermaltake Minecube 360 Ultra ARGB Sync Snow Edition features a Patented Quad-LCD Cube Display, composed of four 3.95” TFT LCDs. Each LCD display can independently showcase system information, custom visuals, or combine into a multi-screen layout for a single expansive illustration. This AIO liquid cooler includes SWAFAN EX fans with MAGForce 2.0 Quick Connection Design and Swappable Fan Blade Design, minimizing cable clutter while fully presenting dual-ring RGB lighting in different airflow directions.

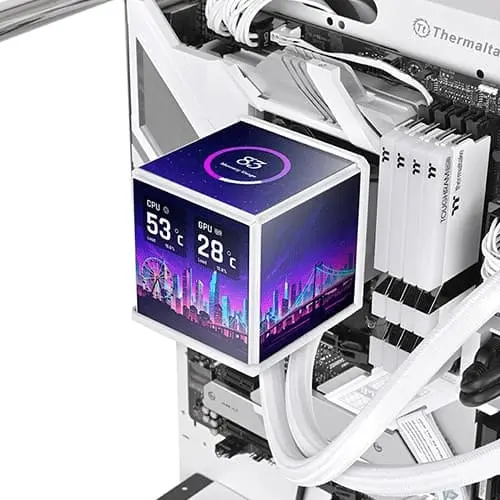

Immersive Multi-Screen Fusion

The Quad-LCD Cube Design reimagines the art of creative expression. Each of the four 3.95” LCD displays can operate independently, presenting striking backgrounds and real-time data for a versatile showcase. When combined, the displays blend seamlessly into one expansive canvas, delivering a refined illustration that stretches around the cube. This transformative mode turns your cooler into an interactive centerpiece, showing visuals that feel both distinctive and captivating.

Next-Level Personalization with TT LCD Screen Software

TT LCD Screen Software is an advanced tool designed for MINECUBE’s Quad-LCD Cube Display. With highly flexible controls, you can freely choose backgrounds and display as much real-time information as you need, arranging layouts effortlessly to suit your preferences. Easily create a fully personalized screen that reflects your style.

Maximize Insights with Diverse Information Presentation

MINECUBE Snow Edition’s Quad-LCD Cube empowers you to display multiple types of information at the same time, providing a comprehensive view at a glance. Keep critical data always visible for accurate monitoring and precise system management, ensuring you remain informed and fully in control.

Tailor Every Detail of Your Information

MINECUBE Snow Edition allows you to fine-tune every detail of your real-time system information. Choose from a variety of backgrounds, adjust the position and size, and customize the colors and fonts for each information element. This level of flexibility ensures that your display is not only informative but also visually aligned with your personal style.

Unlocks the Full Potential of RGB Lighting

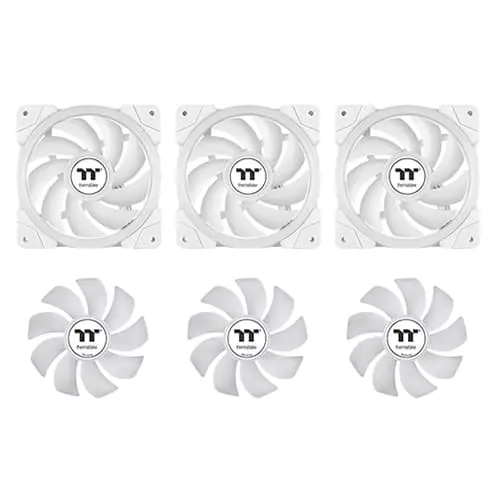

With the Swappable Fan Blade Design, the MINECUBE Ultra ARGB Sync AIO Liquid Cooler Snow Edition incorporates three standard blades and reversed blades, effortlessly switching between the airflow direction for intake or exhaust while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!

Steady Connection with MagForce 2.0

The SWAFAN EX White fans included in MINECUBE Ultra ARGB Sync Snow Edition are upgraded to the MagForce 2.0 connector, whose Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment, whether you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Enhanced Cooling Surface With A Compact Design

The MINECUBE Ultra ARGB Sync series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

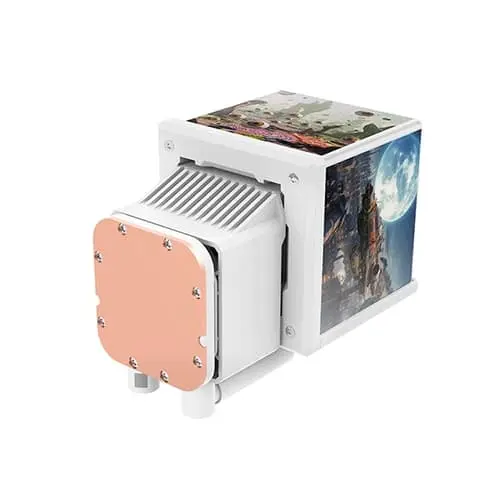

Efficient Cooling with Premium Pump & Copper Base

The high-quality and reliable pump enables maximum water circulation, keeping the copper plate consistently cool. Combined with a high-performance copper base plate, this design accelerates thermal conductivity and rapidly transfers heat away from your CPU. It is engineered for effective and long-lasting cooling performance.

Optimal VRM Fan for Thermal Management

The water block features a built-in VRM Fan with a speed of up to 3500 RPM, ensuring efficient heat dissipation for the surrounding VRM module, motherboard, and the LCD displays. This design prevents overheating, maintaining stable operation while protecting both the internal hardware and the vivid multi-screen visuals.

PUMP

• Motor Speed: PWM 1500~3300 RPM
• Rated Voltage: 12V
• Rated Current: 0.43A
• Power Input: 5.16W

Pump Fan

• Fan Speed: 3500 RPM
• Rated Voltage: 12V
• Rated Current: 0.06A
• Power Input: 0.72W
• Noise Level: 20 dB-A
• Air Flow: 6.8 CFM
• Static Pressure: 1.5 mm-H2O

CPU Display

• Rated Voltage: 5V
• Rated Current: 1.2A
• Power Input: 6W
• Display Type: 3.95” TFT-LCD x 4
• Display Resolution: 720×720 (RGB) px

Display Support

• Interface: Micro USB to USB (9PIN)
• System Compatibility: Windows 10 / 11

WATER BLOCK

Material: Copper

Fan

• Dimension: 120 x 120 x 25 mm
• Fan Speed: PWM 500~2000 R.P.M
• Rated Voltage: 12V/5V
• Rated Current: 0.27 A & 0.72 A (one fan)
• Power Input: 3.24 W & 3.6 W (one fan)
• Air Flow : Standard Fan Blade: 57.11 CFM (one fan)
• Air Flow : Reverse Fan Blade: 56.26 CFM (one fan)
• Static Pressure : Standard Fan Blade: 2.39 mm-H2O (one fan)
• Static Pressure : Reverse Fan Blade: 2.02 mm-H2O (one fan)
• Noise Level : Standard Fan Blade: 30.6 dB-A (one fan)
• Noise Level : Reverse Fan Blade: 32.5 dB-A (one fan)

Tube

• Length : 460mm
• Material : Rubber

Radiator

• Dimension : 396 x 120 x 27 mm
• Material : Aluminum
• TDP : 360W
