Description

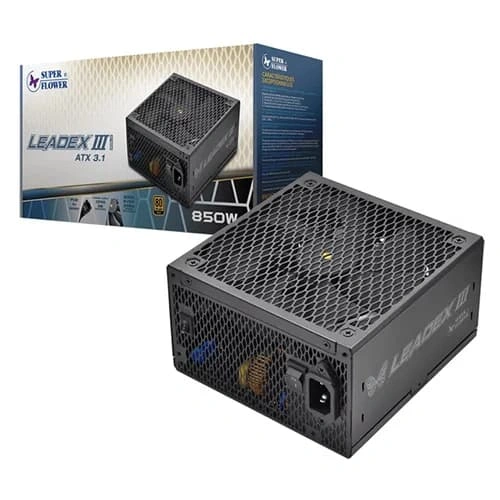

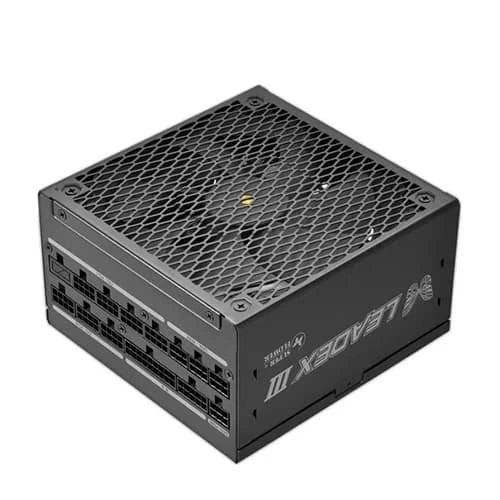

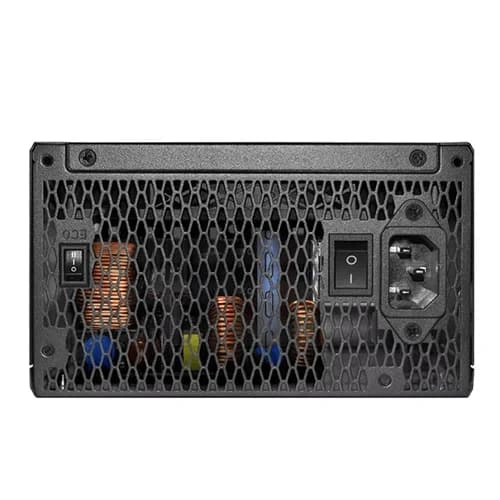

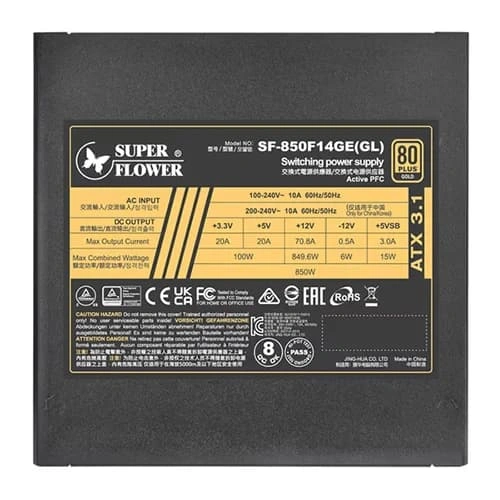

Super Flower Leadex III Gold 850W ATX3.1 Fully Modular SMPS SF-850F14GE(GL)-ATX-3.1
Features:
- 140mm F.D.B Fan: Unique 7-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
- Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.
- Innovative Design for gaming System & PSU protection
- DC output +12V/+5V/+3.3V remain stable
- Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
- +12V Output With Exceptional Low Ripple Measurements
- Low Output Voltage Ripple
- Auto & ECO Fan Control
- High efficiency on all rails, including 5VSB
- 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
- 80 PLUS Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
- Japanese Main Capacitor
- Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
- Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
- Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
- Support NVIDIA SLI & ATI CrossFireX High Performance Graphic Card
- More than 2,000 times On/Off test
- Lead-free Green Materials with RoHS / WEEE Compliance
- Perfect For Professional & High Performance Gaming System
- PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
LEADEX III GE is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.
12V-2×6 Connector Revision of 12VHPWR More Relaible, More safe Solution
PCIe 5.1 Graphic card support with up to 600W power output unlimited performance with dynamic over rating
Excellent Heat Dissipation Achieve High Energy Moment
Unique blade fan design provides precise RPM to reduce core temperature effectively.The heat dissipation capability is more advanced and the fan has a reliable and stable copper shaft and increase the life of fan
ECO Intelligent Thermal Control System
Linear fan grill design and 140mm and F.D.B Fan with ECO function.Provides superb airflow for better heat dissipation thus maintaining overall
Top Tier Japanese Capacitor
Primary Capacitor With Top Tier Japanese Brand For Higher Reliability and Durability
Accquired 80 Plus Gold Certification
Steady Power output and up to 90% Efficiency Rating.Reduce Power Consumption Loss Thus Eco-Friendly
Design for Reliability
Voltage Regulation With in 0.5% To Ensure Stability,Durability And Reliablity To Every System Build.
| Psu | |
| Wattage | 850 Watt |
| Series | LEADEX III GOLD |
| Certification | 80 Plus Gold |
| Modular | FULLY MODULAR |
| PCIe Connector (6+2) | 1 |
| SATA Connector | 2 |
| Peripheral (4-Pin) | 1 |
| Warranty | 10 Years |
