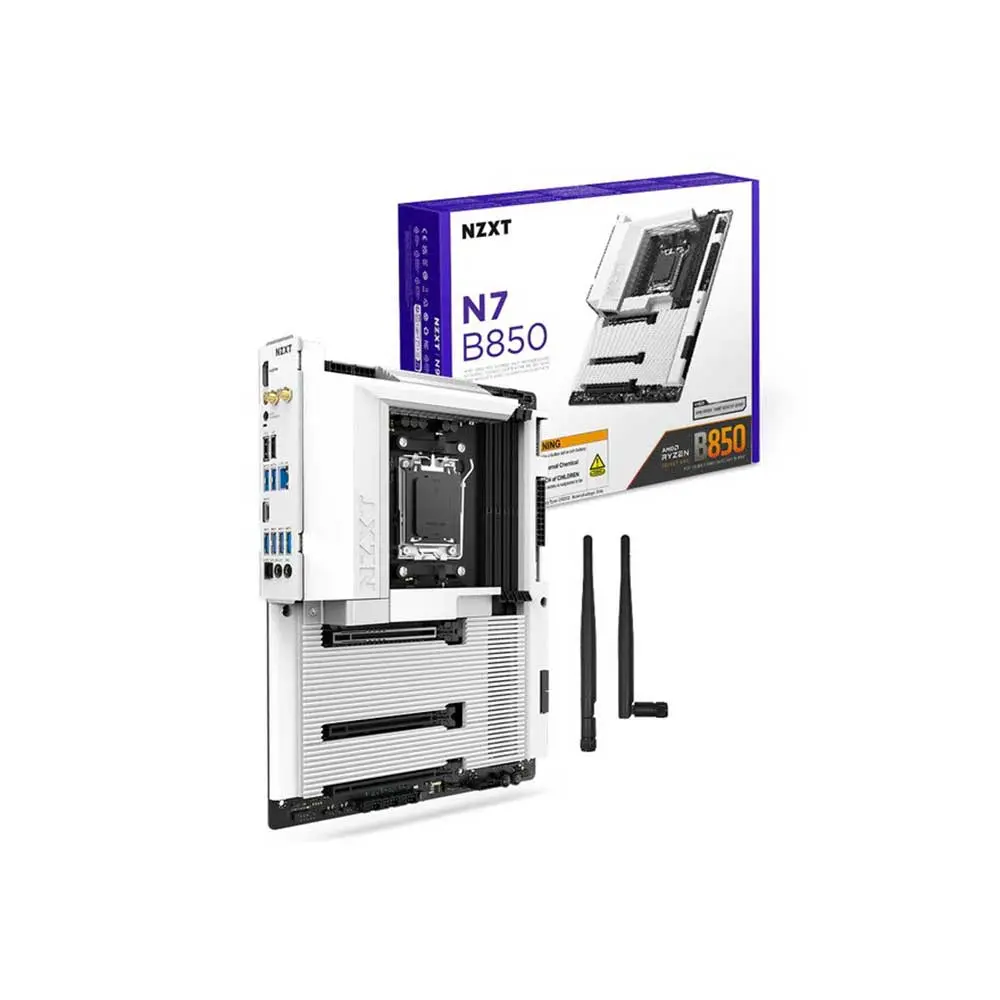

NZXT N7 B850 AM5 ATX Gaming WiFi Motherboard White
The NZXT N7 B850 pairs advanced gaming performance with a sleek, refined design. Built for AMD® Ryzen™ processors, it features robust power delivery, optimized thermals, and high-speed connectivity with DDR5 and PCIe 5.0. A full PCB cover enhances aesthetics, creating a clean and modern foundation for any build.
- AMD® AM5 Socket: Ready for AMD® Ryzen™ 9000, 8000, and 7000 series desktop processors.
- Optimal Power: 16+2+1 power phase design with 80A DrMOS and an eight-layer 2-ounce copper PCB ensure stable power delivery.
- M.2 Heatsink: An aluminum heatsink on the top-most PCIe 5.0 M.2 slot keeps temperatures low.
- PCIe® 5.0 Expansion: One PCIe® 5.0 x16 slot for next-gen GPUs and two PCIe® 4.0 x16 slots for high-speed expansion.
- High-Speed Storage: Three M.2 slots, including one PCIe® 5.0 with a quick-release latch and two PCIe® 4.0 provide ultra-fast storage speeds and quick load times.
- DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- Fast Connectivity: Wi-Fi 6E and 2.5GbE enable high-speed data transfers and low-latency networking.

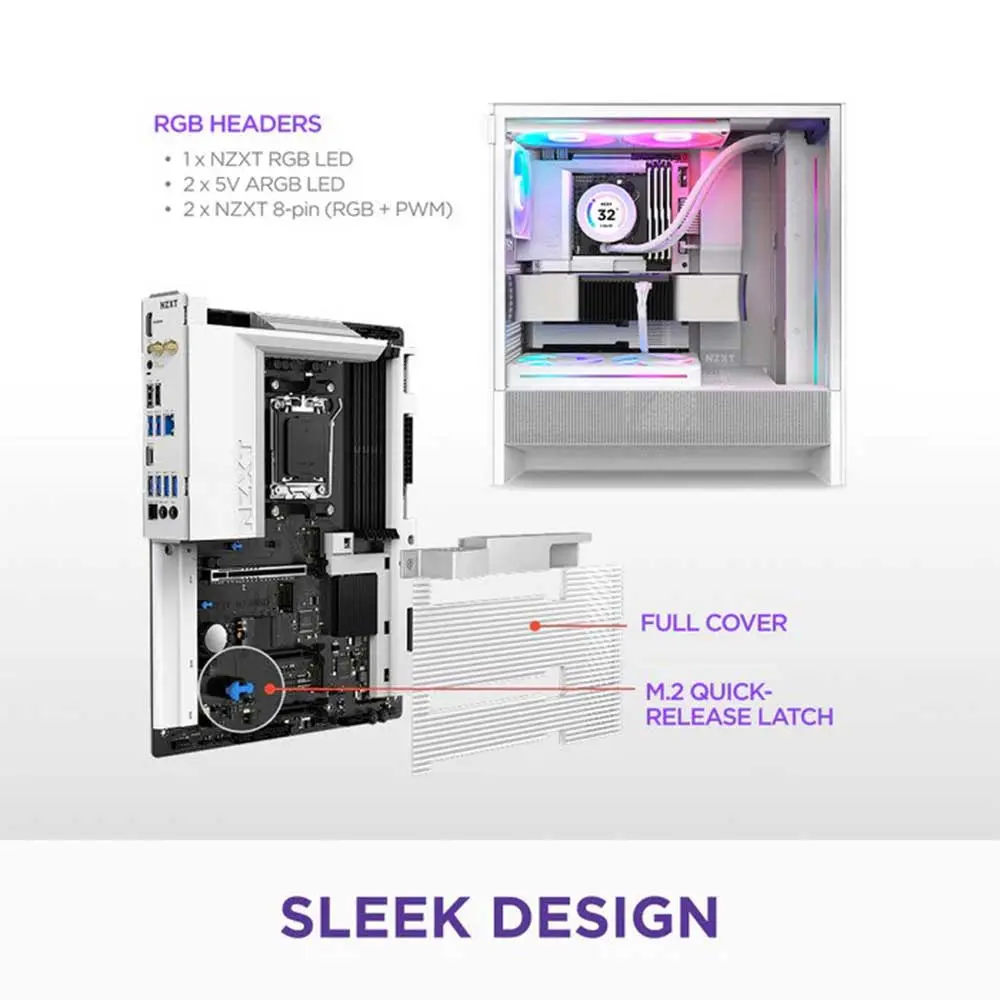

- Sleek, Minimal Design: A full PCB cover provides a clean, modern aesthetic that integrates seamlessly into any build.
IMPORTANT: BIOS & Driver Updates Required
Update your BIOS and drivers for the best compatibility, stability, and performance.
- BIOS: Version 3.20 or later is required for the AMD® Ryzen™ 7 9800X3D. While your system will boot, update immediately to prevent memory-related issues. You can check your BIOS version in NZXT CAM.
- Drivers: Keep your chipset and system drivers updated for optimal performance and stability.
| CPU | AMD Socket AM5 for AMD® Ryzen™ 9000, 8000, and 7000 series processors |
| Chipset | AMD® B850 |
| DIMM Slots | 4 x DDR5 |
| Memory Architecture | Dual-Channel |
| Extreme Memory Profile (XMP) | Supported |
| EXTended Profiles for Overclocking (EXPO) | Supported |
| PCIe 5.0 ×16 slot (PCIEX16_1) | 1 (supports ×16 mode) |
| PCIe 4.0 ×16 slots (PCIEX16_2 & PCIEX16_3) | 2 (supports ×2 mode) |
| M.2 Socket (Key E) | 1 (supports Type 2230 Wi-Fi/BT PCIe module) |
| M.2_1 (2280 PCIe 5.0 ×4) | 1 |
| M.2_2 (2280 PCIe 4.0 ×4) | 1 |
| M.2_3 (2280 PCIe 4.0 ×2) | 1 |
| SATA 6Gb/s ports | 4 |
| LAN | Realtek® 2.5G LAN |
| Dual-Band Wi-Fi 6E | Supported |
| Bluetooth | v5.2 |
| Audio Codec | Realtek® ALC1220 |

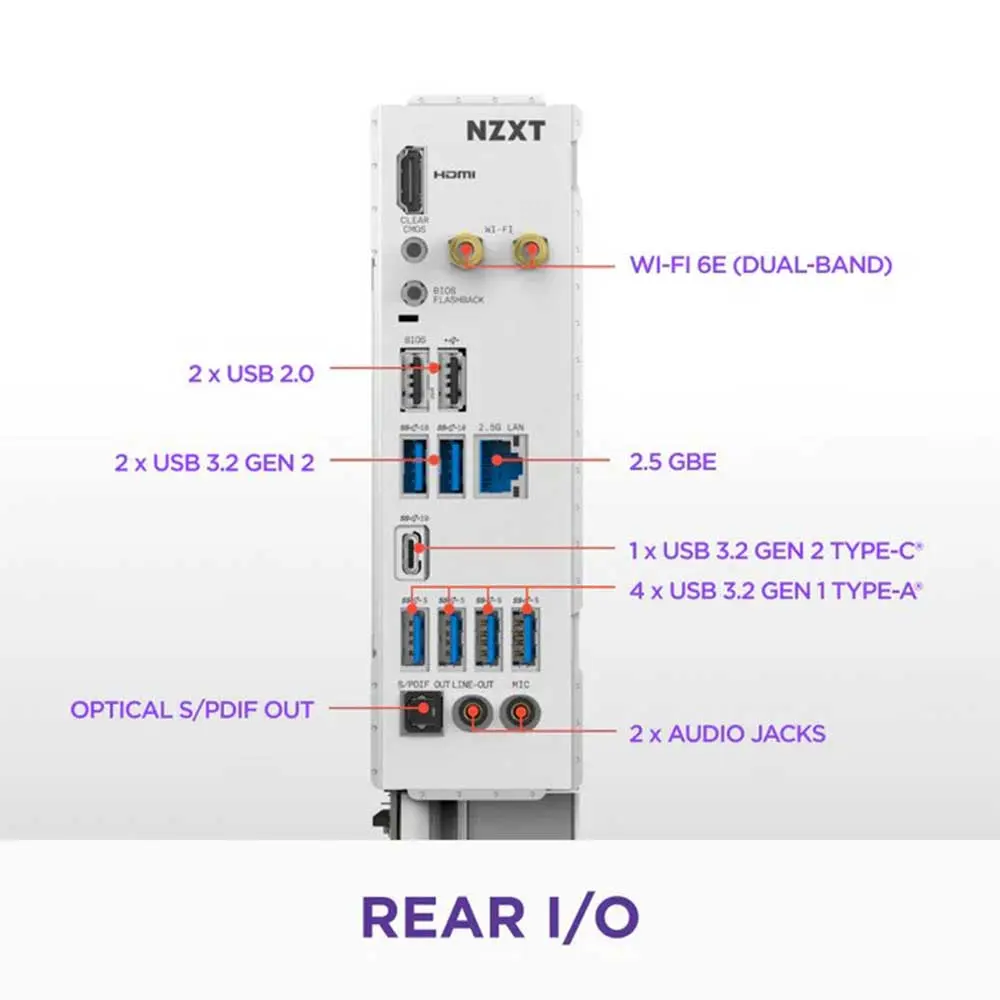

| Rear I/O | |
| Wireless antenna SMA connectors | 2 |
| HDMI™ port | 1 |
| USB 3.2 Gen 2 Type-C port | 1 |
| USB 3.2 Gen 2 Type-A ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 4 |
| USB 2.0 ports | 2 |
| Clear CMOS button | 1 |
| LAN (RJ45) port | 1 |
| Audio jacks | 2 |
| Optical S/PDIF Out port | 1 |
| 24-pin ATX power connector | 1 |
| 8-pin ATX 12V power connectors | 2 |
| CPU_FAN connector (4-pin) | 1 |
| AIO_PUMP connector (4-pin) | 1 |
| SYS_FAN connectors (4-pin) | 3 |
| NZXT RGB LED connector | 1 |
| 5V ARGB LED connectors | 2 |
| NZXT 8-pin PWM connectors | 2 |

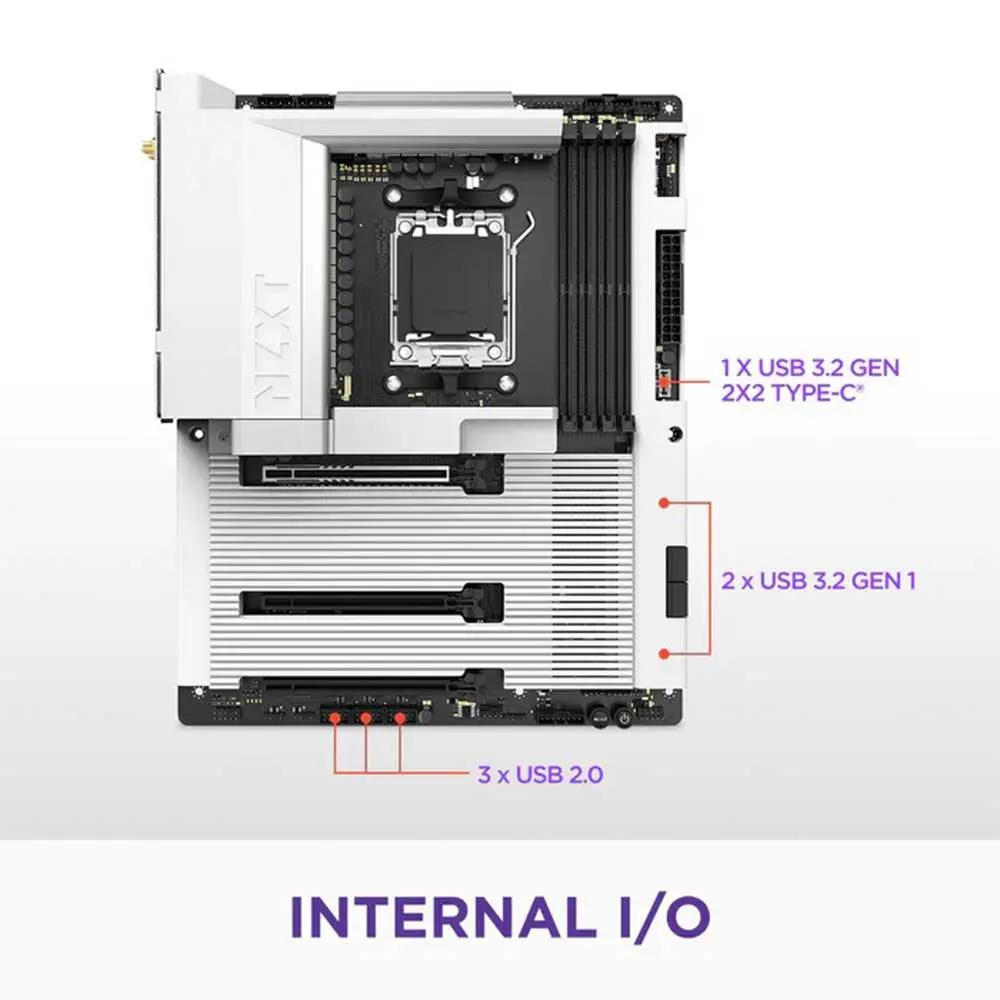

| USB 2.0 header (up to 6 ports) | 3 |
| USB 3.2 Gen1 header (up to 4 ports) | 2 |
| USB 3.2 Gen2x2 front panel header | 1 |
| Front panel audio connector | 1 |
| Power button | 1 |
| Reset Button | 1 |
| POST LEDs | 1 |
| Operating System | Windows® 11/10 64-bit |
| Form Factor | ATX |
| Warranty | 3 years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
