Description

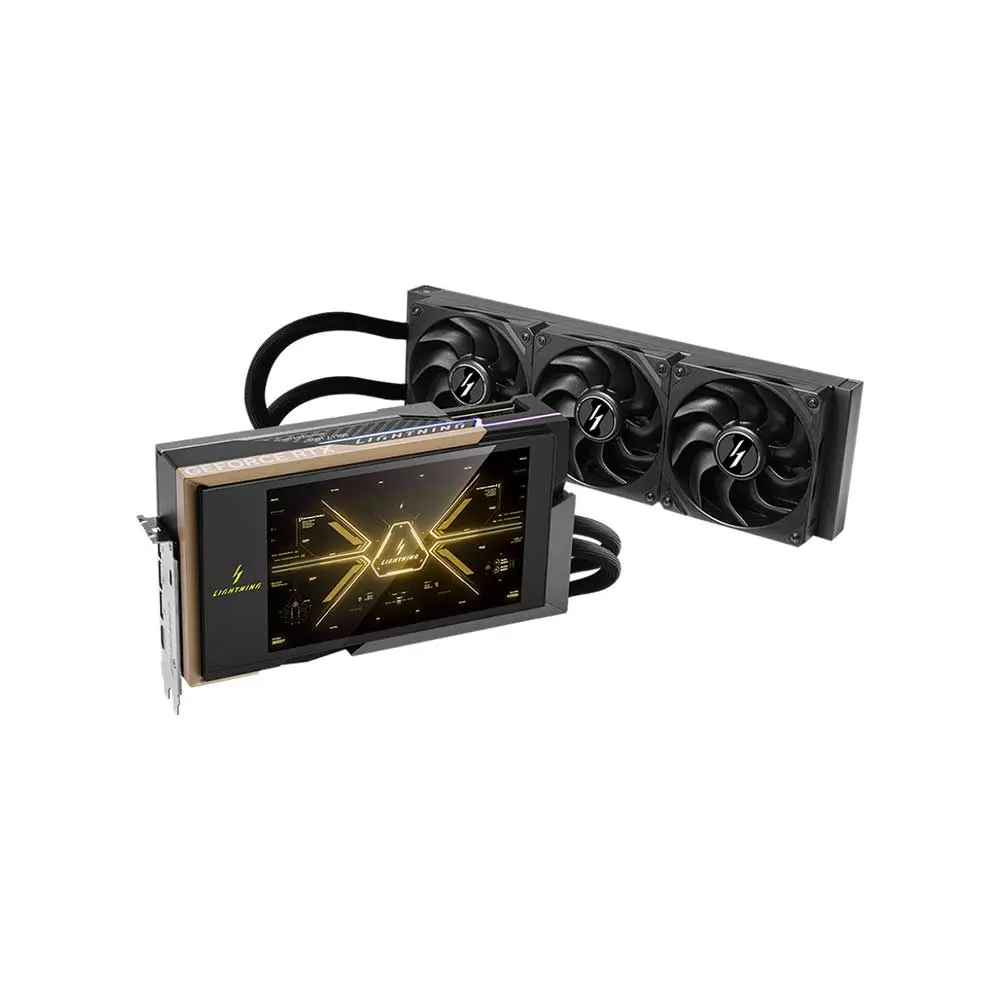

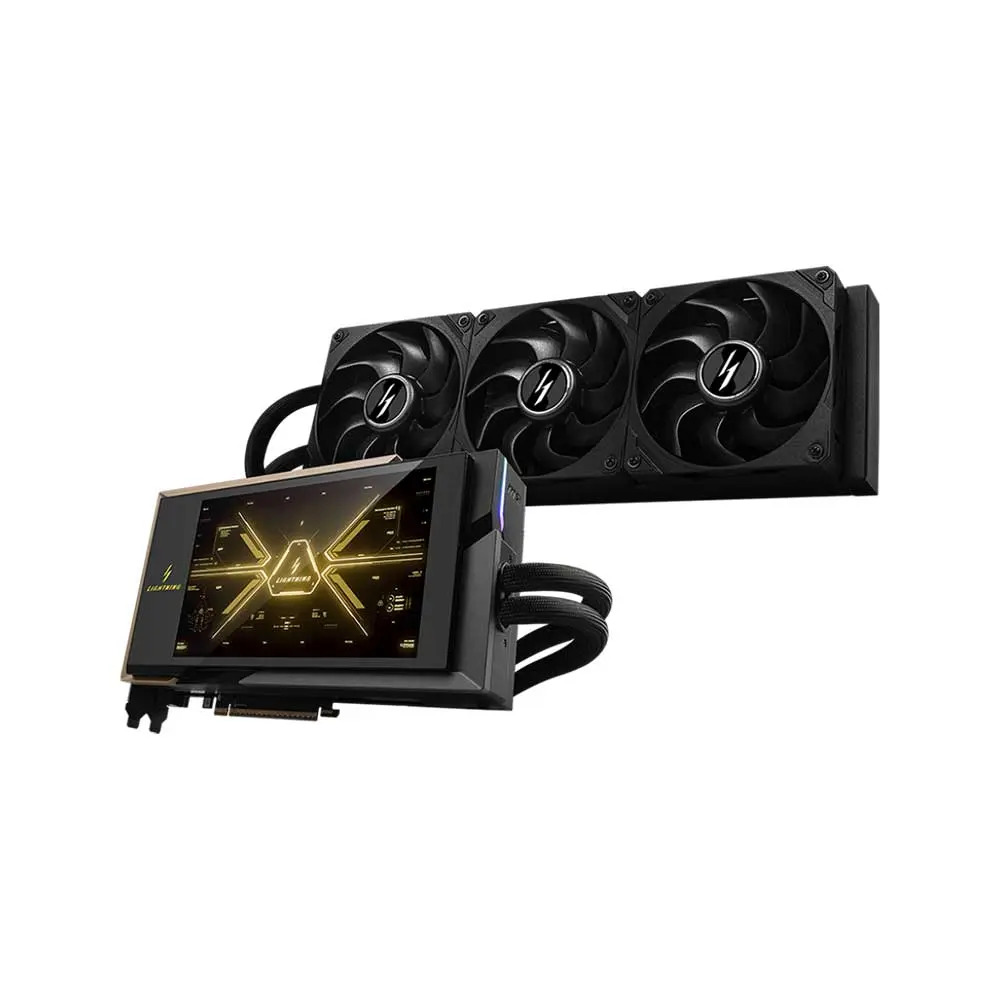

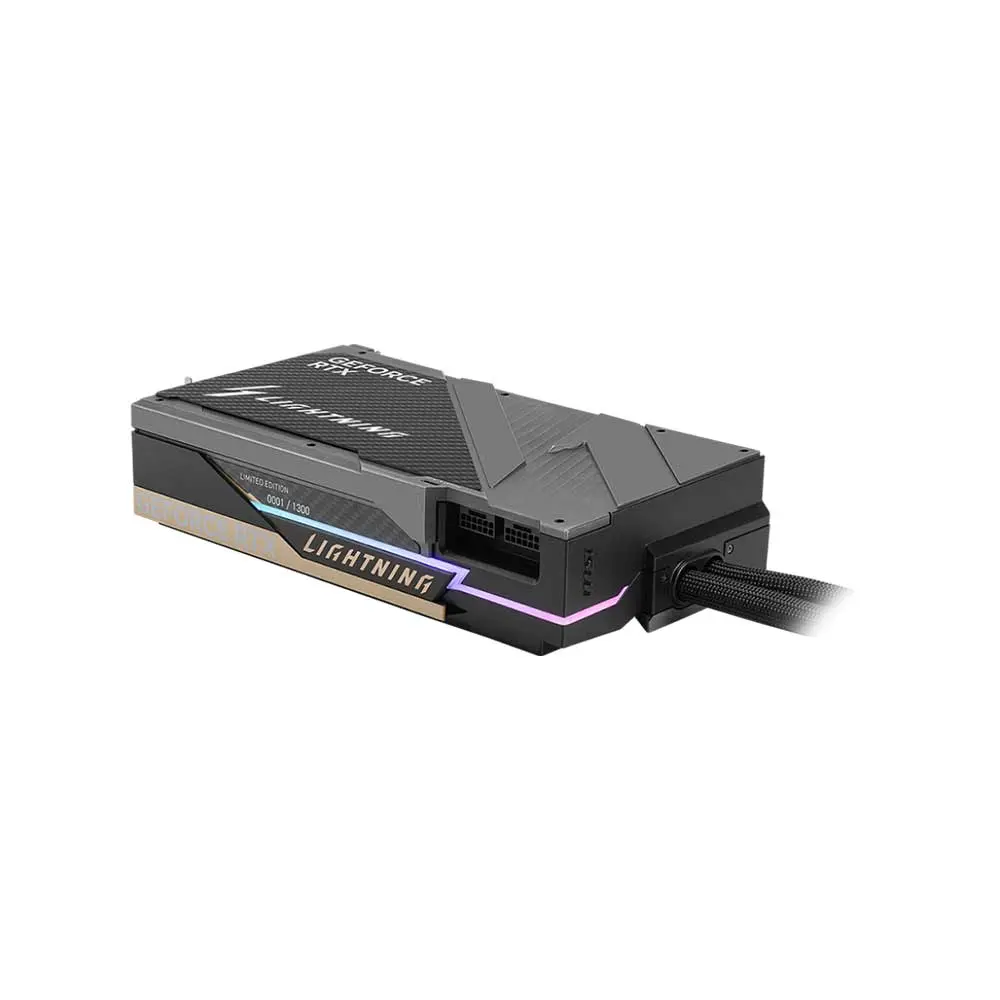

MSI RTX 5090 Lightning Z 32GB GDDR7 Graphics Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2775 MHz (MSI Center)
Boost: 2730 MHz - Custom PCB:Â A reinforced PCB with 3oz copper and premium components delivers superior conductivity, stability, and extreme OC performance.
- Full-cover Cold Plate:Â Precision-engineered waterways cover the GPU, VRAM, and MOSFETs, ensuring uncompromised thermal performance.
- Hybrid-fin Radiator: Dense and sparse fin sections create contrasting hot–cold zones that enhance heat exchange and airflow for maximum cooling efficiency.
- Next-generation Advanced Pump:Â Delivers higher pressure and precision-optimized coolant flow for thermal efficiency and sustained peak performance.
- A Full 8-Inch Display: Introducing the world’s first graphics card with a fully integrated 8-inch screen, blending aesthetics and function.
- LIGHTNING Fan: Designed for the Lightning series, the fan’s aerodynamic blades optimize airflow and pressure to ensure maximum cooling.
- LIGHTNING HUB & OVERDRIVE APP:Â Exclusive to the Lightning series, this web-based hub and mobile app deliver seamless GPU, display, and lighting control.
- Carbon Fiber Backplate:Â Rigid carbon fiber and Lightning Pattern detailing deliver technical elegance.
- MSI Center:Â The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner:Â Take full control with the most recognized and widely used graphics card overclocking software in the world.
| Marketing Name | GeForce RTX™ 5090 32G LIGHTNING Z |
| Memory | 32GB GDDR7 |

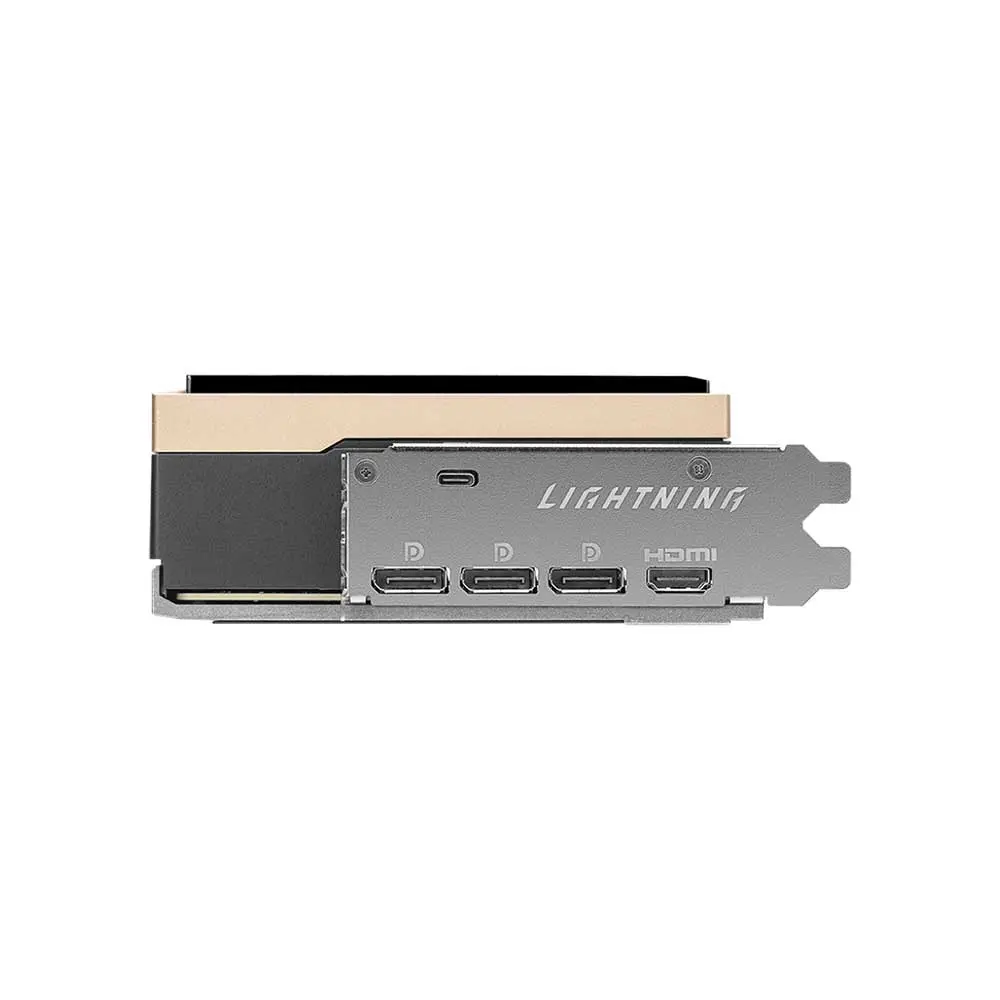

| Output | USB Type-C x 1 (Dedicated for Lightning display panel only), DisplayPort x 3 (2.1b), HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
| Interface | PCI Express® Gen 5x 16 |
| Core Clock Speed (Mhz) | Extreme Performance: 2775 MHz (MSI Center) Boost: 2730 MHz |
| Memory Interface | 512 Bit |
| Memory Clock Speed (Mhz) | 28 Gbps |
| Open GL Version Support | 4.6 |
| Maximum Displays | 4 |
| HDCP Support | Y |
| Direct X Version Support | 12 Ultimate |
| Card Dimension (mm) | Card: 260 x 151 x 61 mm Radiator: 394 x 120 x 56 mm |
| Card Weight (g) | TBD g / TBD g |
| Power Consumption (W) | OC:800 W EXtreme:1000W |
| Recommended PSU (W) | 1600W |
| Digital Maximum Resolution | 7680 x 4320 |
| Power Connectors | 16-pin x 2 (1-to-3 dongle not supported.) |
| Mic-in/Headphone-out | 01-Jan |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
