Description

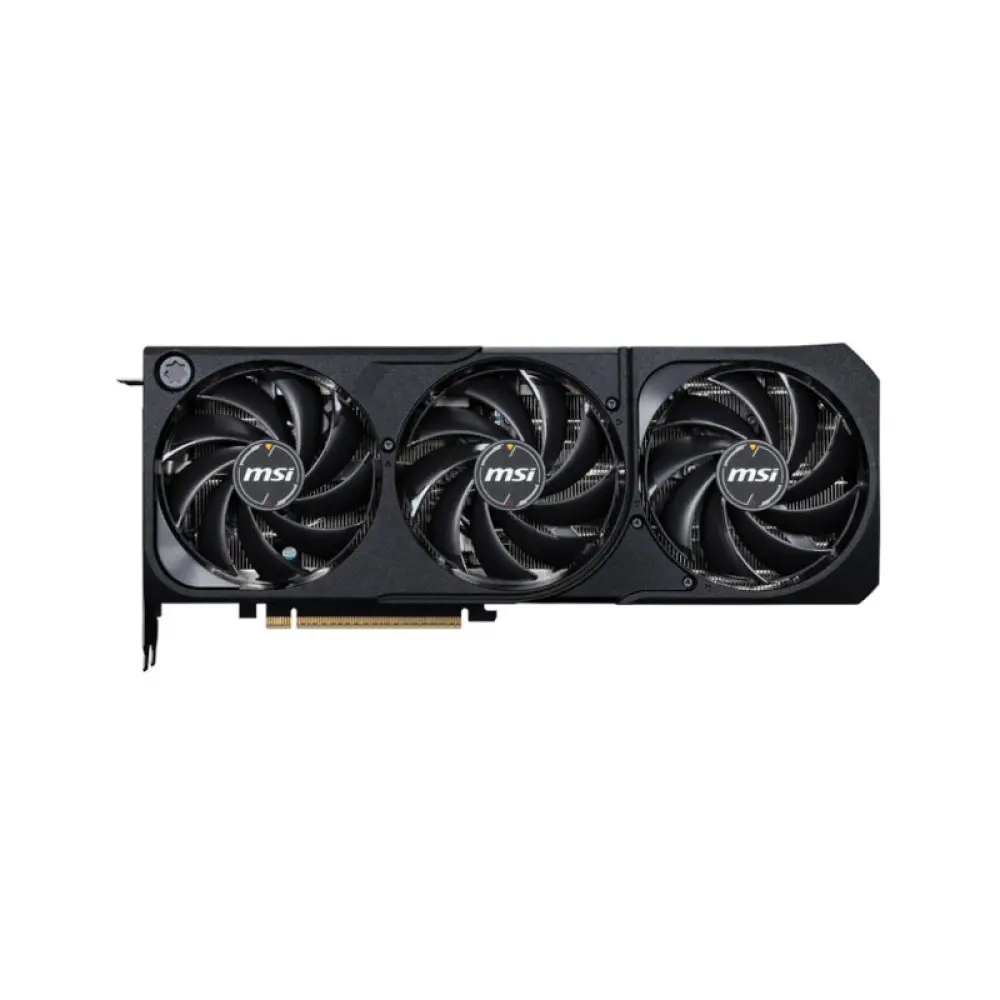

MSI RTX 5070 Ti Shadow 3X OC 16GB GDDR7 Graphics Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

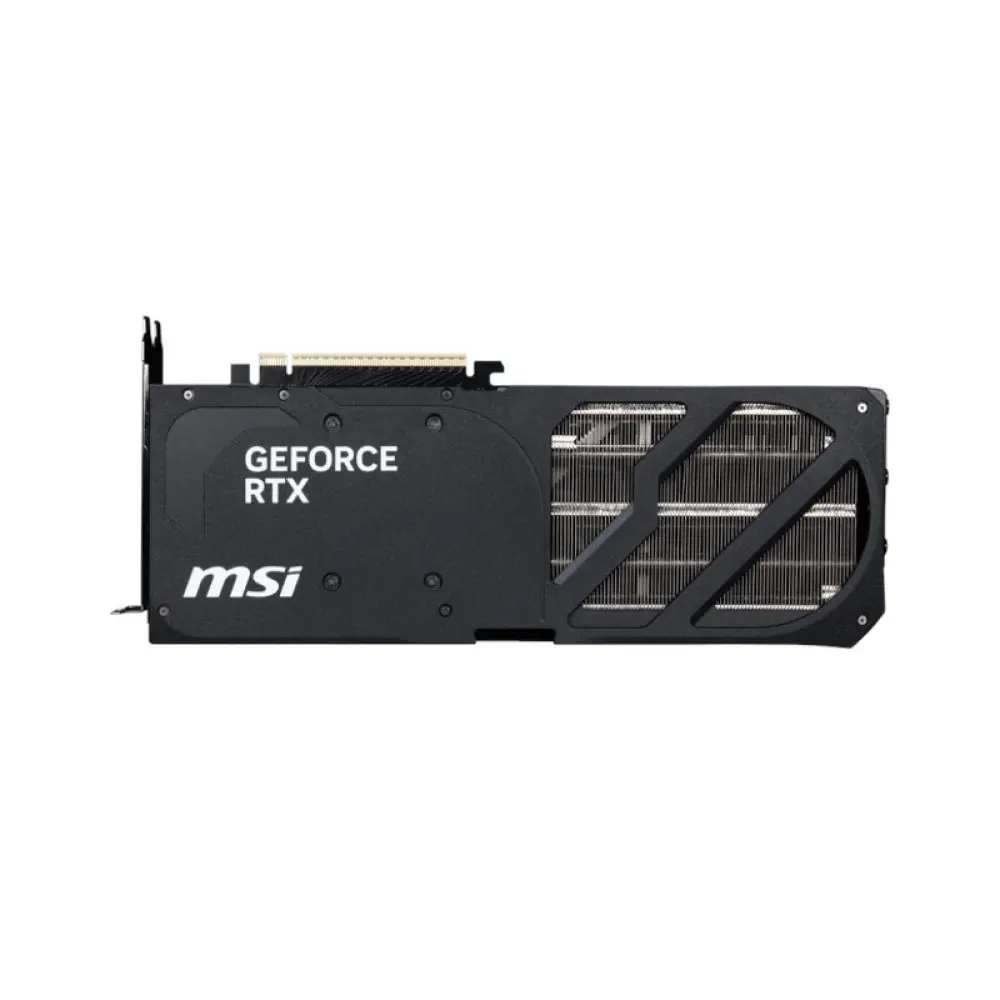

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Specification | |
| MARKETING NAME | GeForce RTX 5070 Ti 16G SHADOW 3X OC |
| MODEL NAME | G507T-16S3C |
| GRAPHICS PROCESSING UNIT | NVIDIA GeForce RTX 5070 Ti |
| INTERFACE | PCI Express Gen 5 |
| CORE CLOCKS | Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz |
| CUDA® CORES | 8960 Units |
| MEMORY SPEED | 28 Gbps |
| MEMORY | 16GB GDDR7 |
| MEMORY BUS | 256-bit |

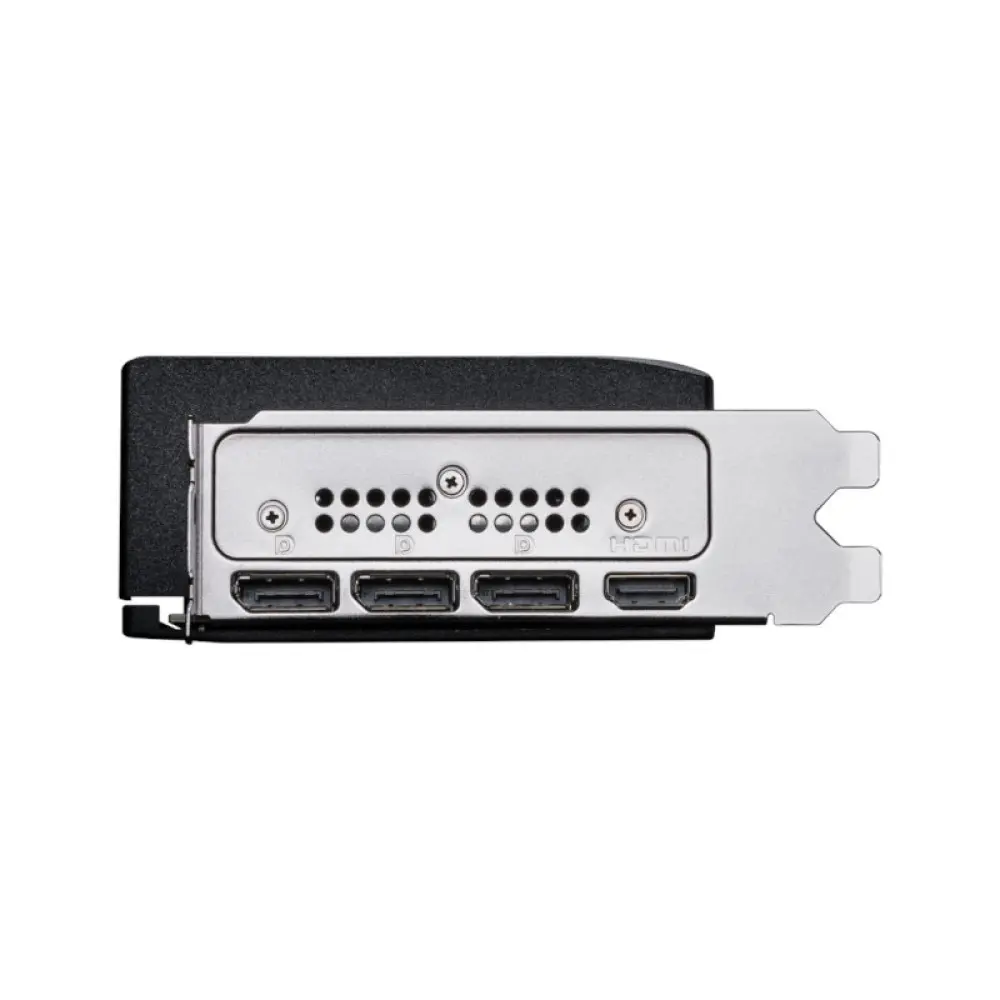

| OUTPUT | DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 300W |
| POWER CONNECTORS | 16-pin x1 |
| RECOMMENDED PSU | 750W |
| CARD DIMENSION (MM) | 303 x 121 x 49 mm |
| WEIGHT (CARD / PACKAGE) | |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| WARRANTY | 3 Years |
| Note* | Price, Feature and Specifications Are Subject to Change Without Notice. |
