MSI RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card
MSI RTX 5060 Ventus 2X OC focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2535 MHz (MSI Center)

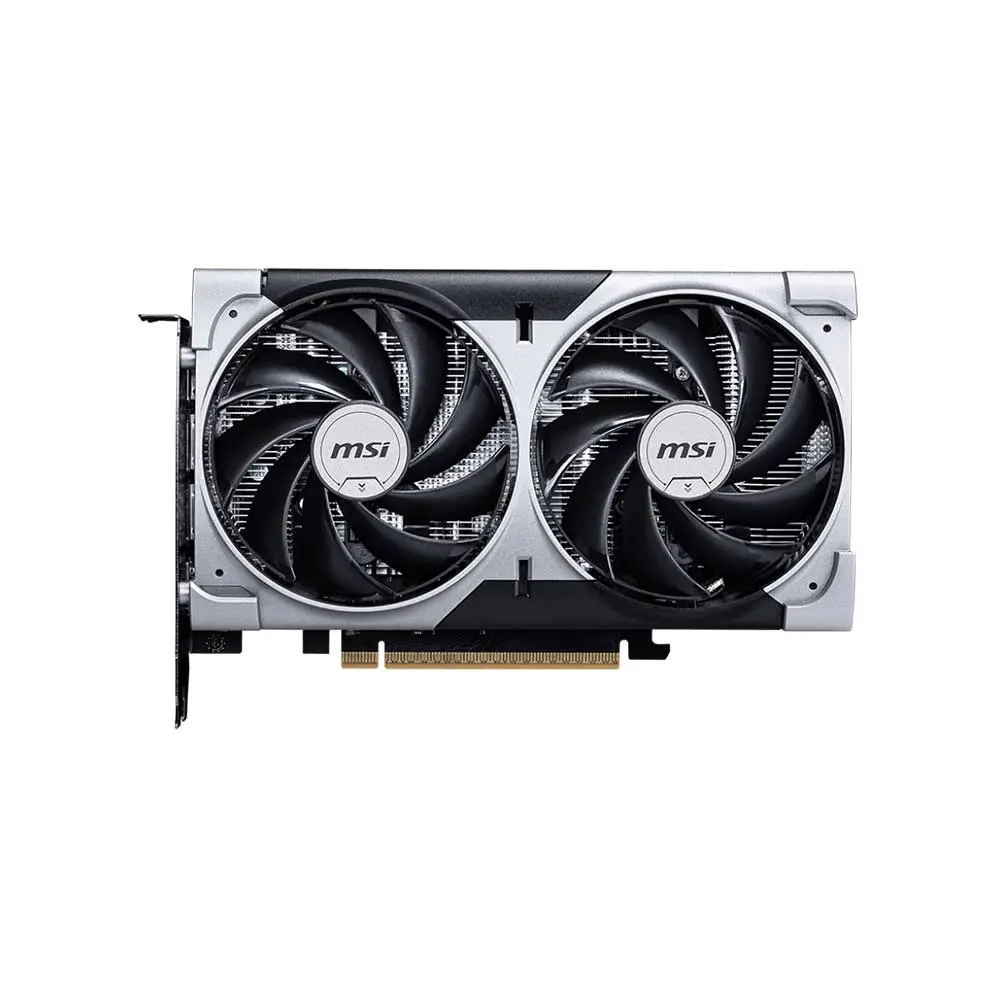

Boost: 2527 MHz - TORX Fan 5.0:Â Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

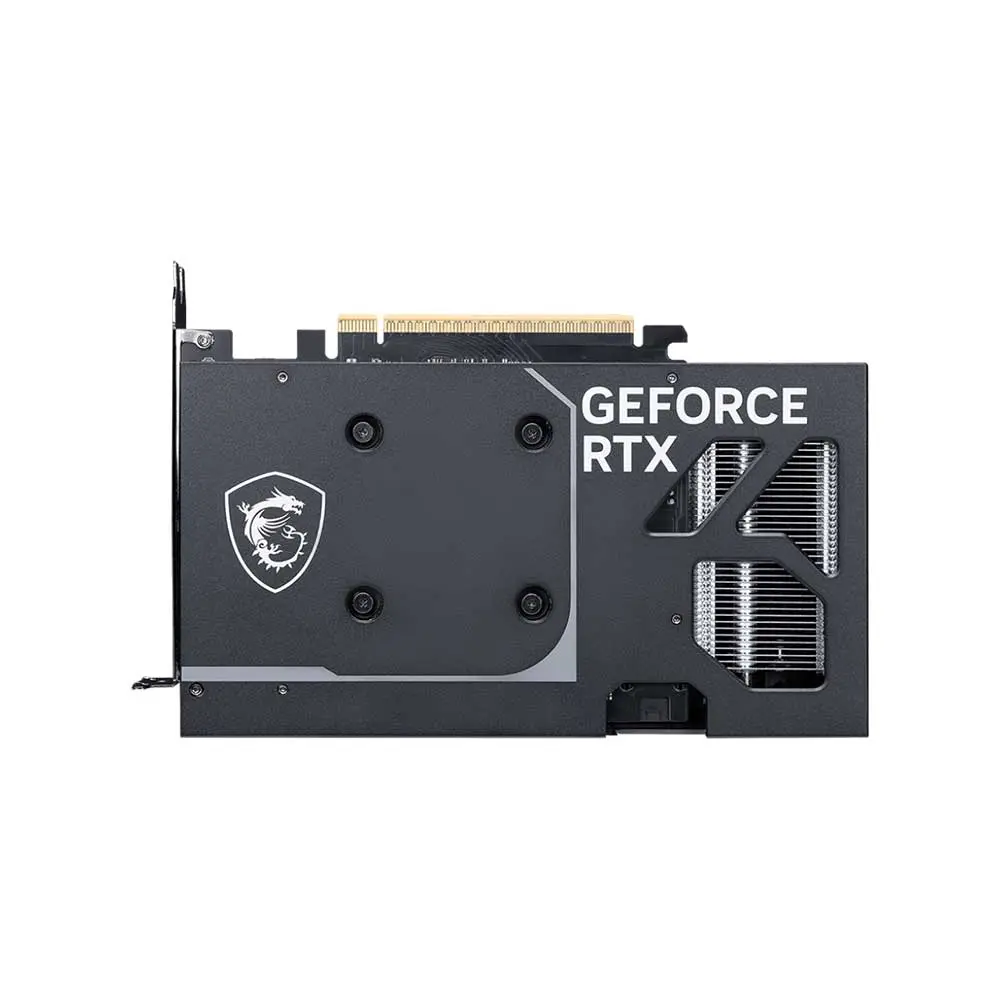

- Reinforcing Backplate:Â The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center:Â The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Marketing Name | GeForce RTX™ 5060 8G VENTUS 2X OC |
| Model Name | G5060-8V2C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2535 MHz (MSI Center) Boost: 2527 MHz |
| Cuda Cores | 3840 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128 Bit |

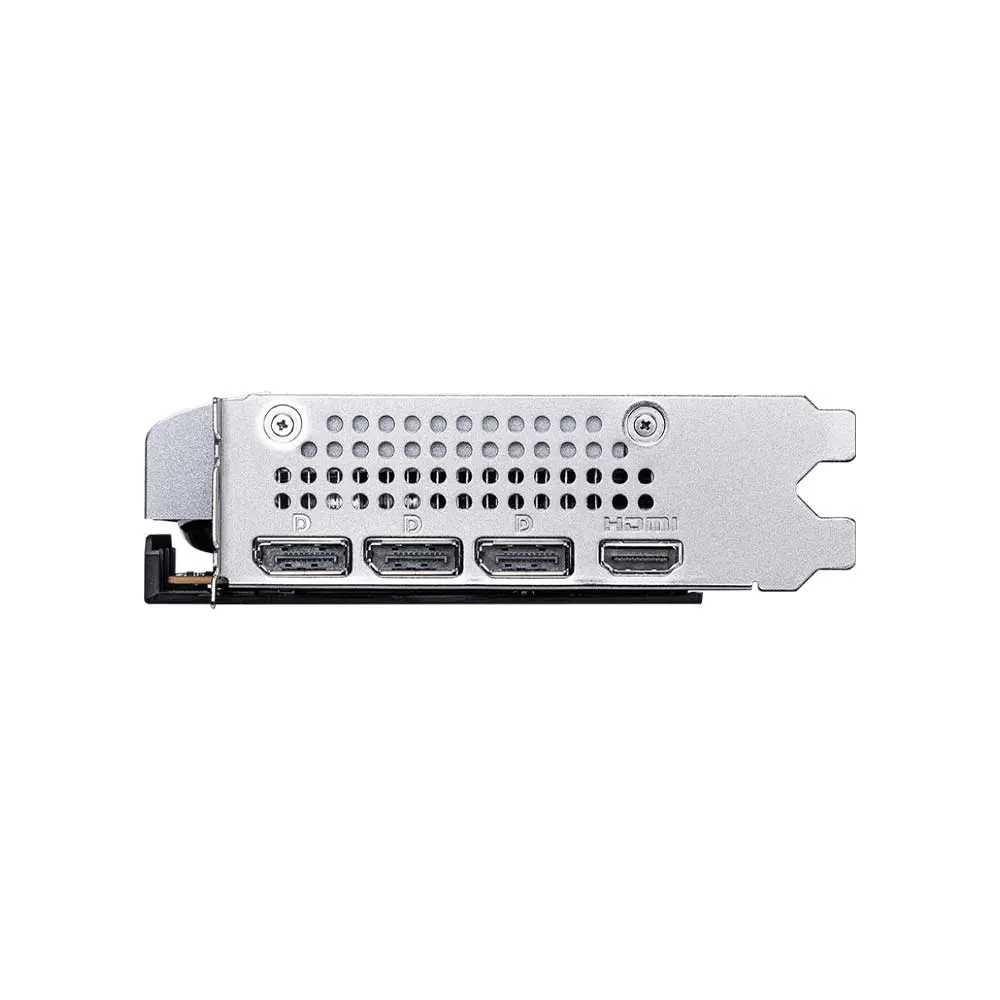

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 145 W |
| Power Connectors | 8-pin x 1 |
| Recommended PSU | 550W |
| Card Dimension (mm) | 197 x 120 x 40 mm |
| Weight (Card/Package) | 511 g / 829 g |
| Direct X Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680Ă—4320 |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
