Description

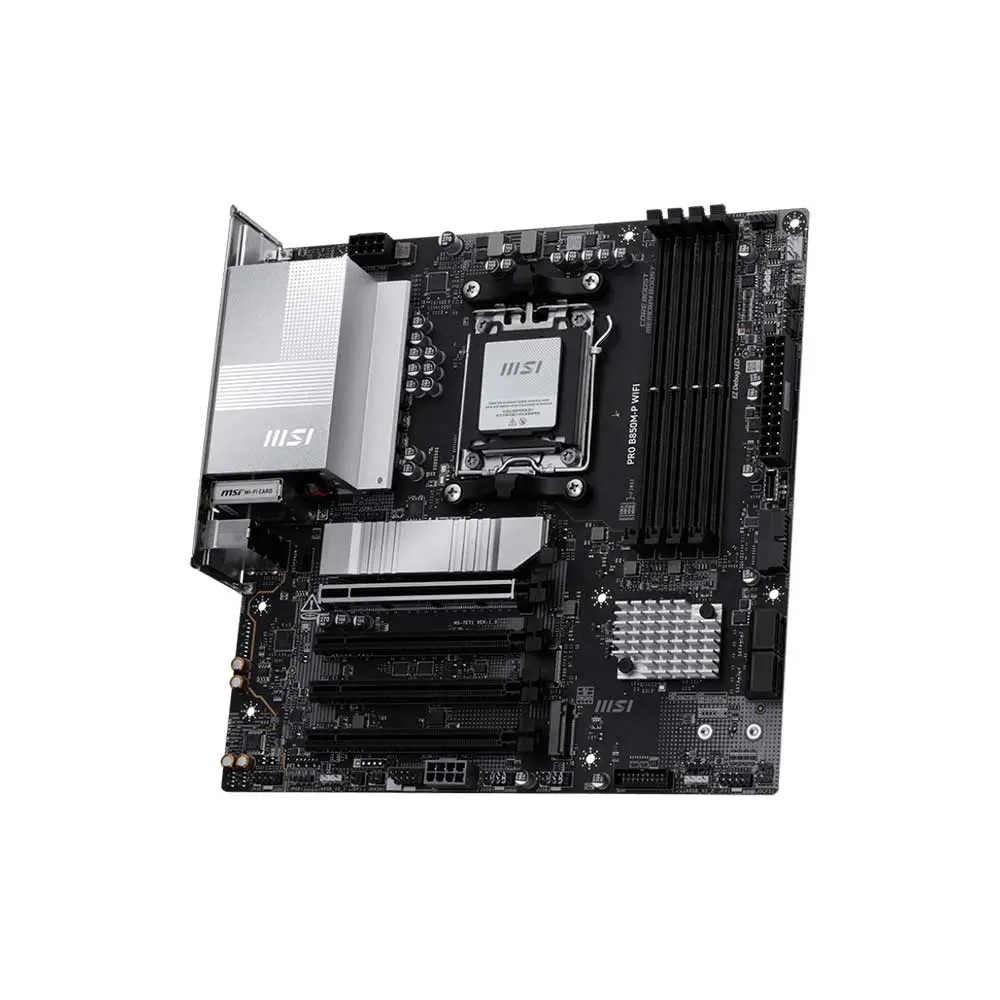

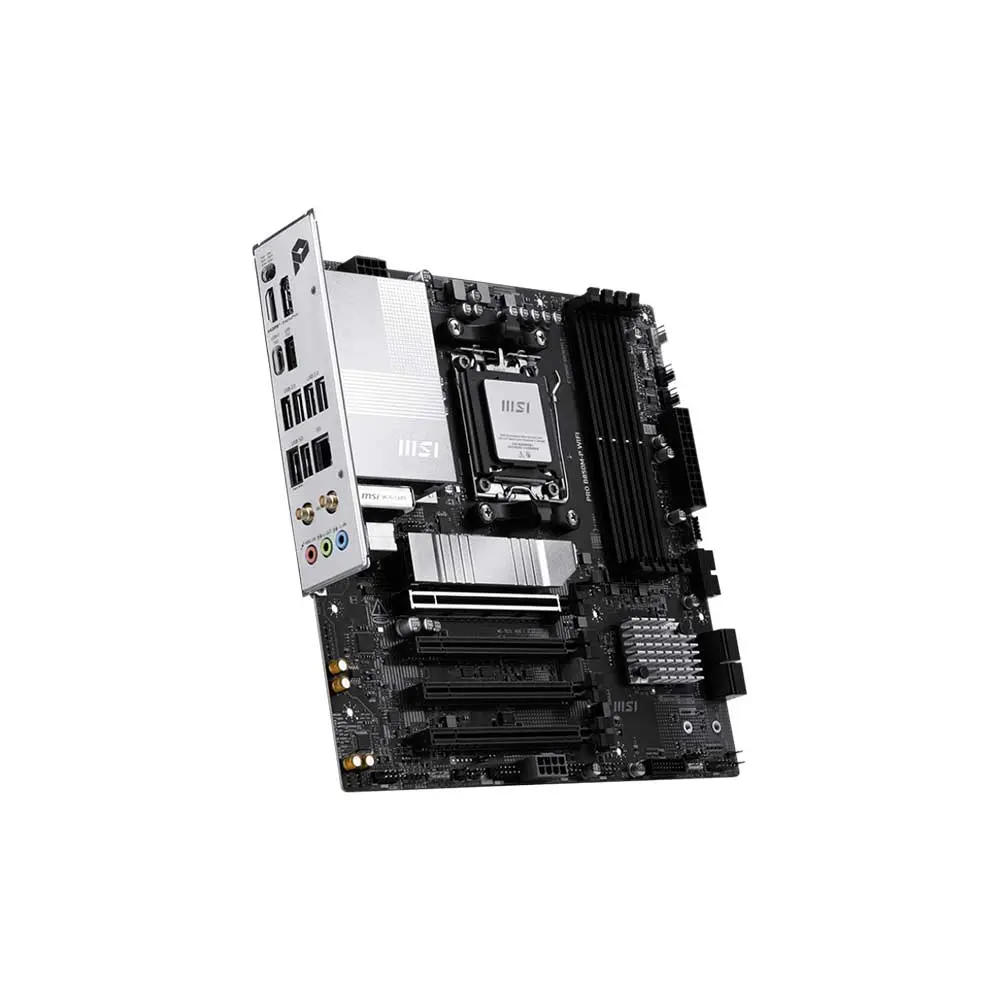

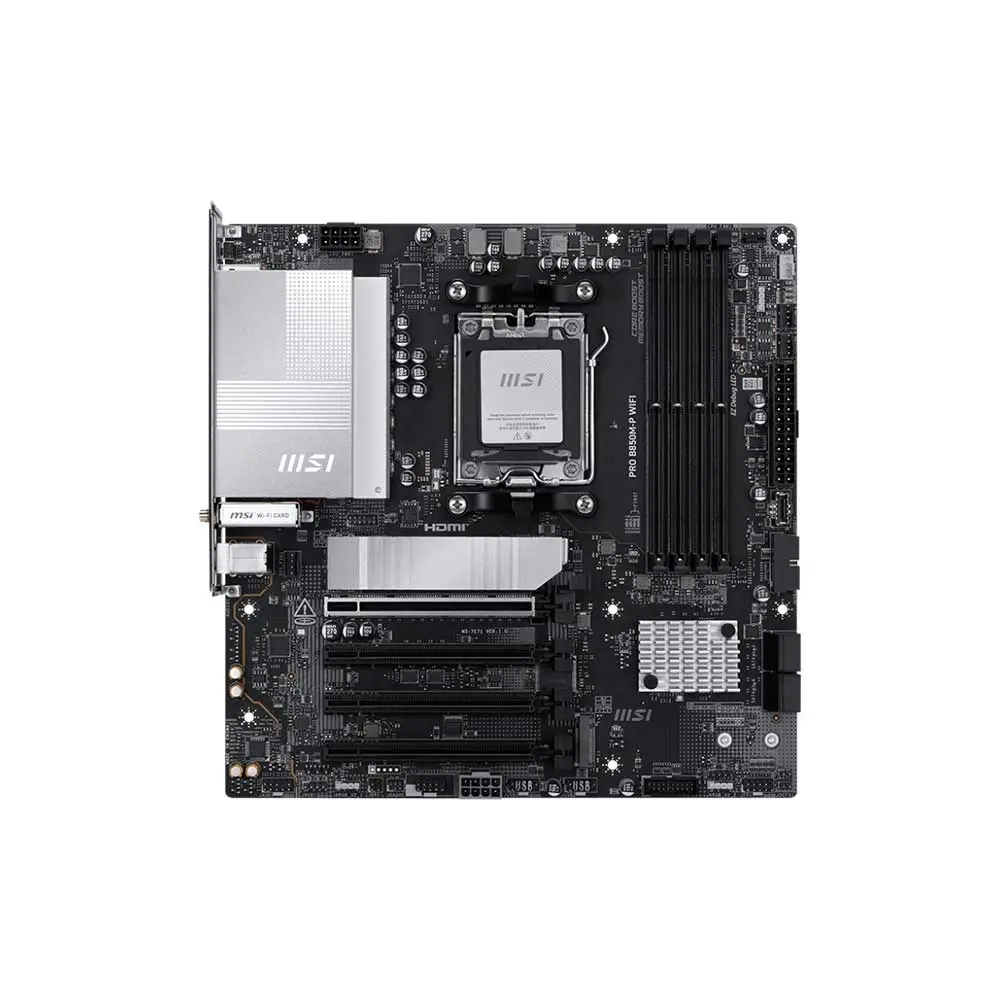

MSI Pro B850M-P WiFi AM5 Micro ATX Motherboard
MSI Pro B850M-P WiFi offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/sSupports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6GM2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. |
| Raid | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
| LAN | Realtek® 8126VB 5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Wireless & Bluetooth | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM |
| LED Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |

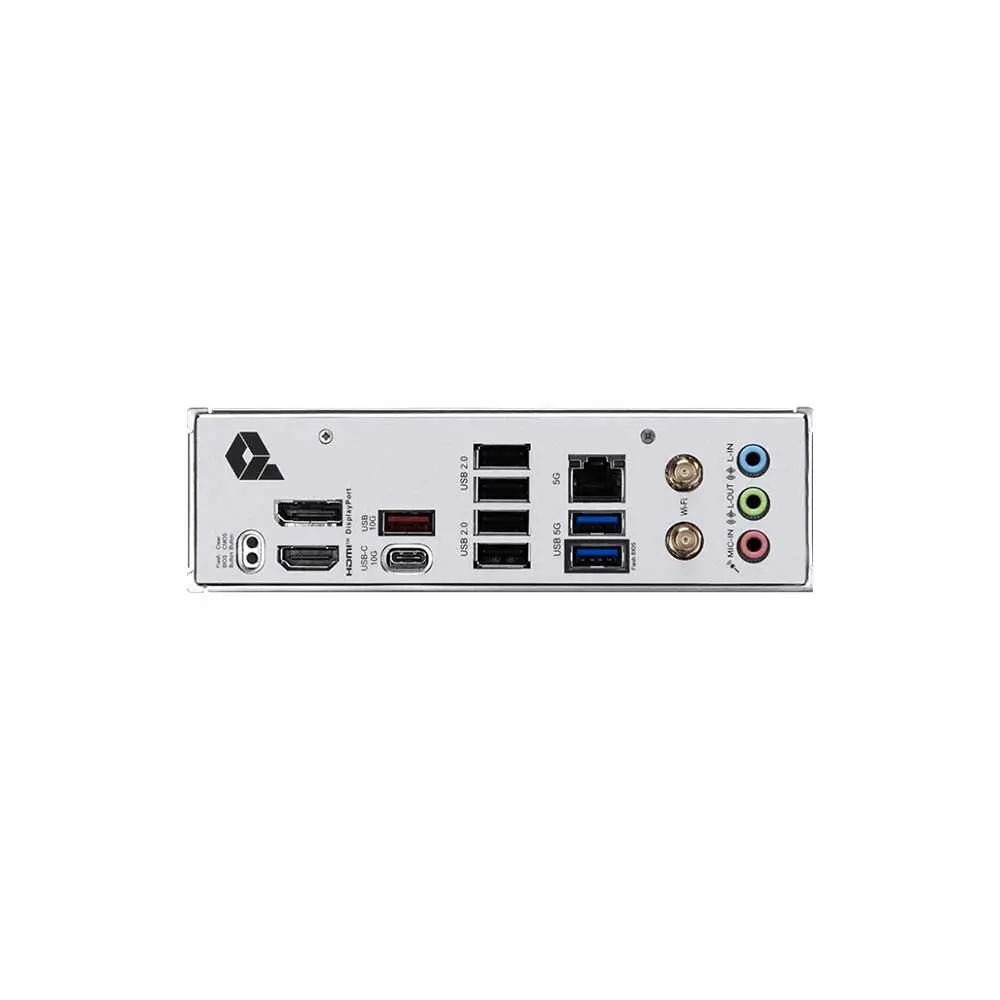

| Back Panel Ports | Clear CMOS Button DisplayPort USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 5Gbps Type-A |
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | mATX 243.84mmx243.84mm |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
