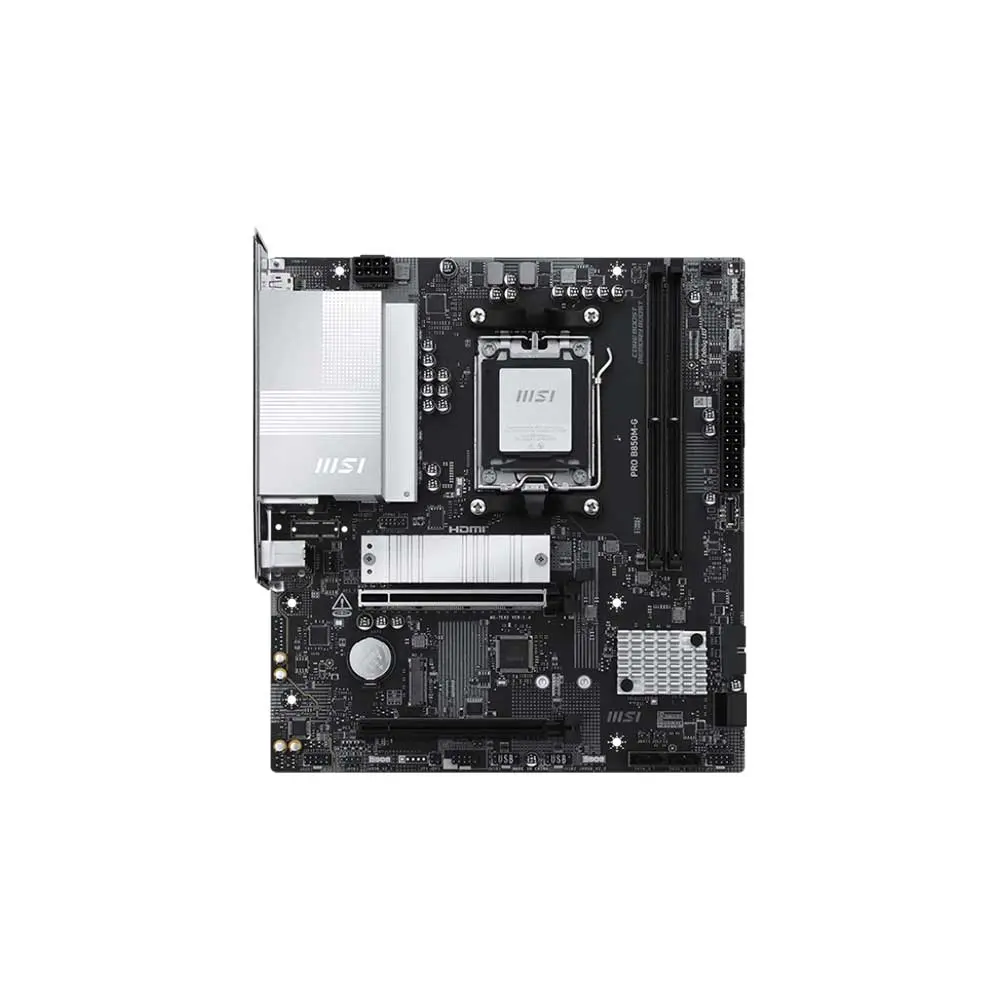

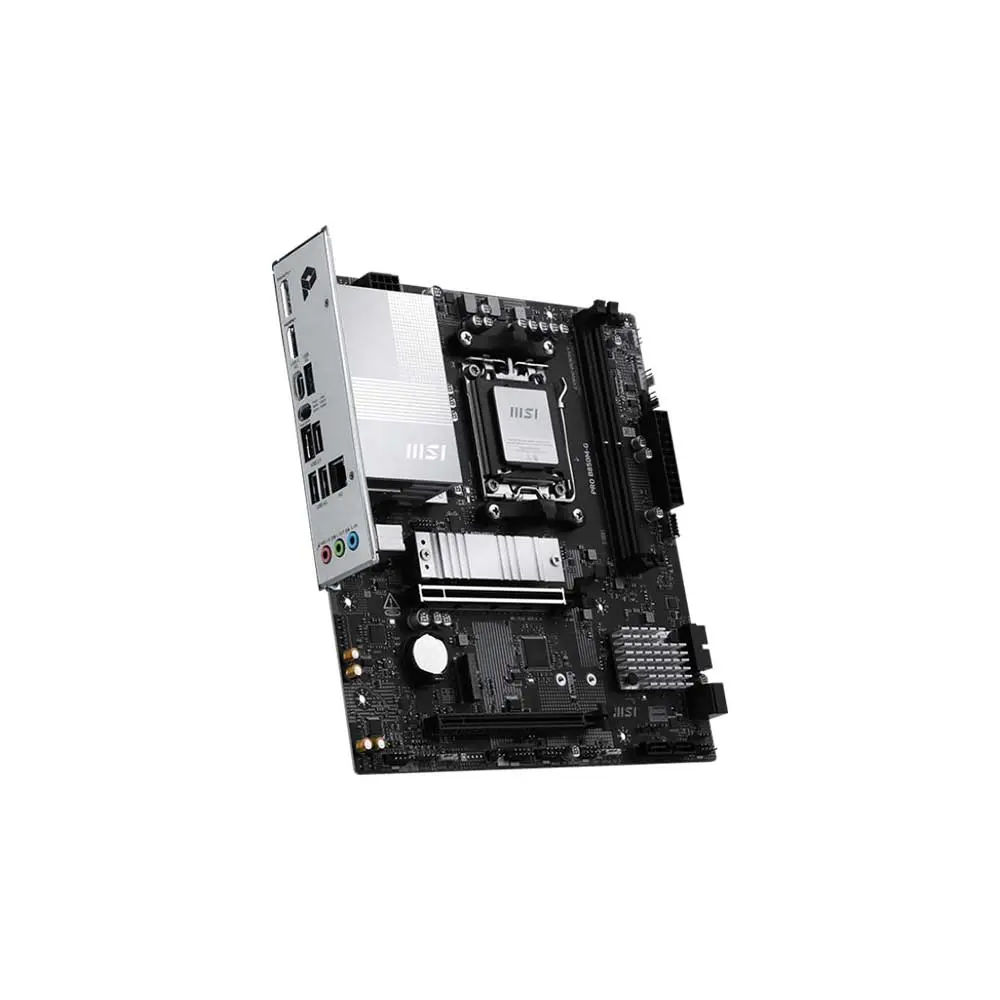

MSI Pro B850M-G AM5 Micro ATX Motherboard
MSI Pro B850M-G offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, 5G LAN, PCIe 5.0 M.2 with M.2 Shield Frozr, and EZ PCIe Clip II, ready for the AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: Direct 7+2+1 Power System with P-PAK, an 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- 5G LAN: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/sSupports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6GM2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
| LAN | Realtek® 8126 5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |

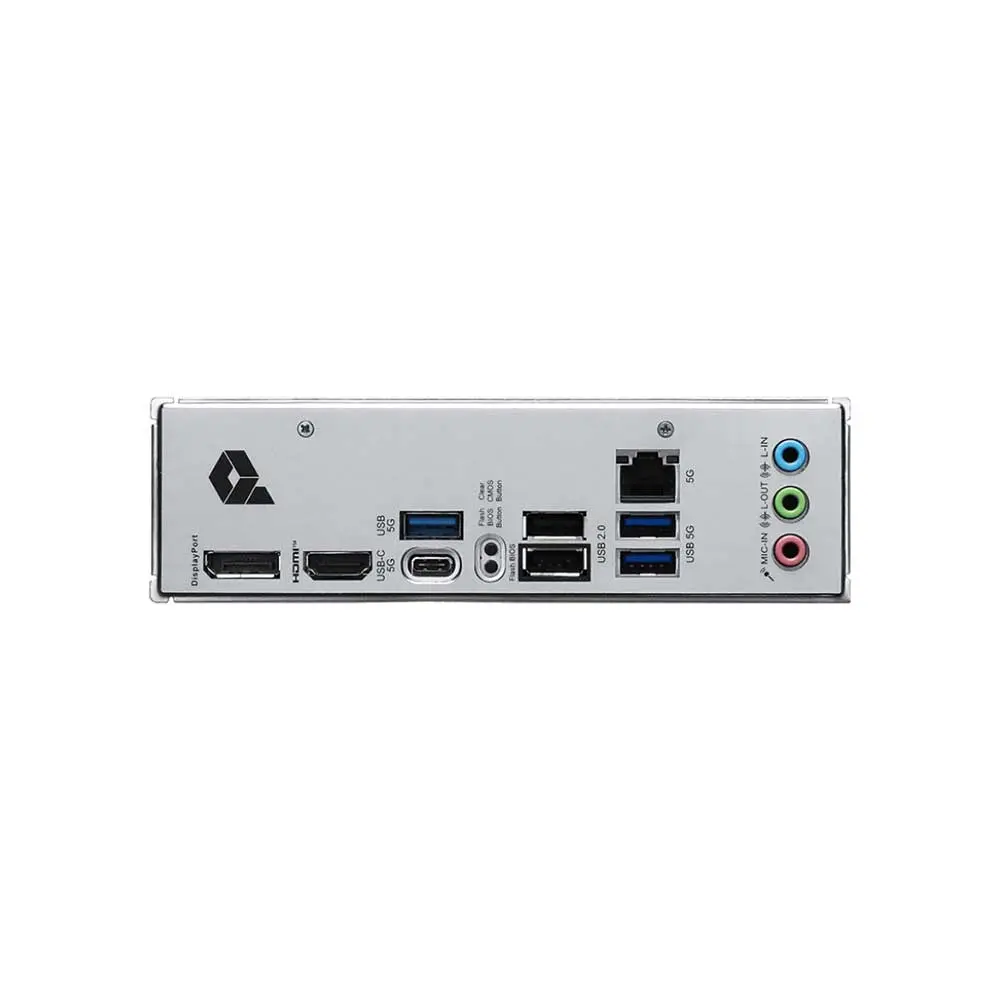

| Back Panel Ports |
|
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | mATX 226mmx243.84mm |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
