Msi Mpg X870E Edge Ti WiFi AM5 ATX Motherboard

Description

Msi Mpg X870E Edge Ti WiFi AM5 ATX Motherboard

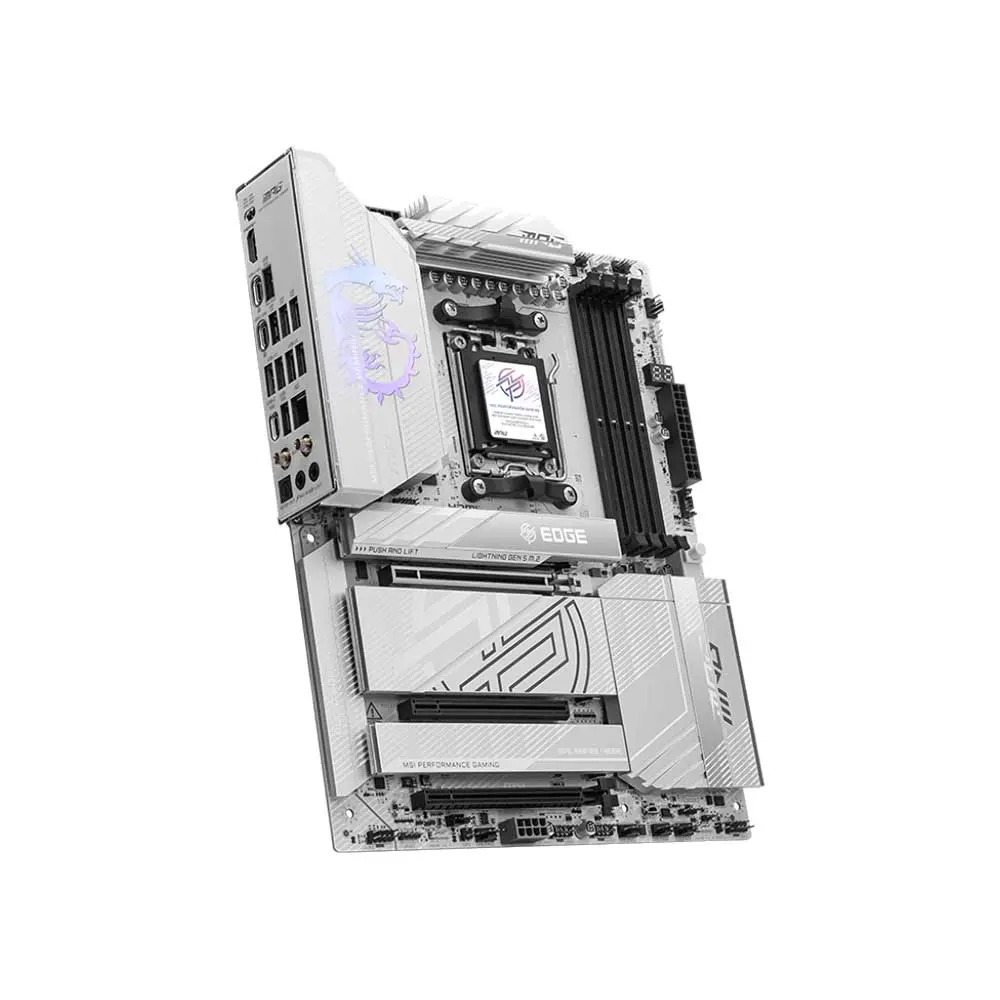

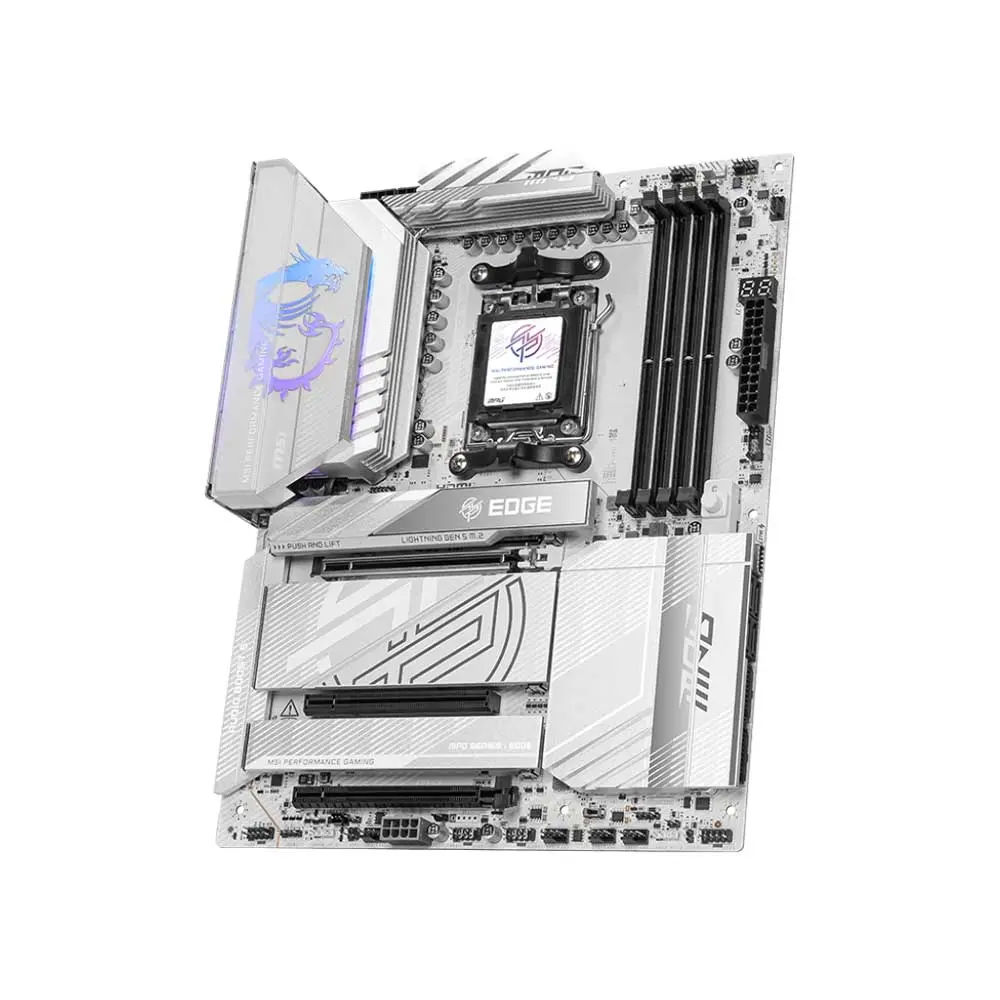

Msi Mpg X870E EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. The motherboard is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870E ATX motherboard for AMD Ryzen™ 9000 series processors.

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO^TM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4^® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek^® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
RAID	Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek^® 8126 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Wireless LAN & Bluetooth	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4**, MLO, 4KQAM
LED Feature	4x EZ Debug LED 1x EZ Digi-Debug LED

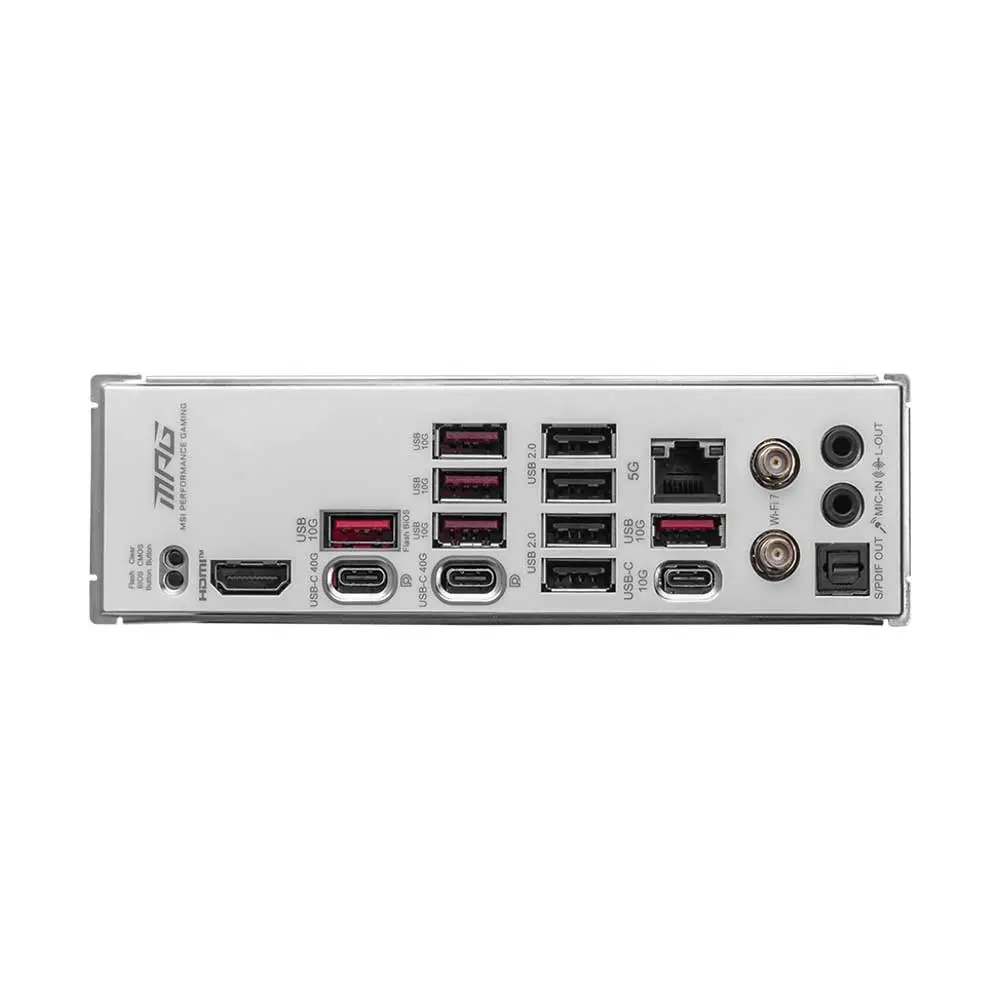

Back Panel Ports	Clear CMOS Button USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Optical S/PDIF Out
Operating System	Support for Windows® 11 64-bit
PCB Info	ATX 243.84mmx304.8mm
Warrranty	3 Years
Note**	**Prices, Specifications & Features are subject to change without notice
