Description

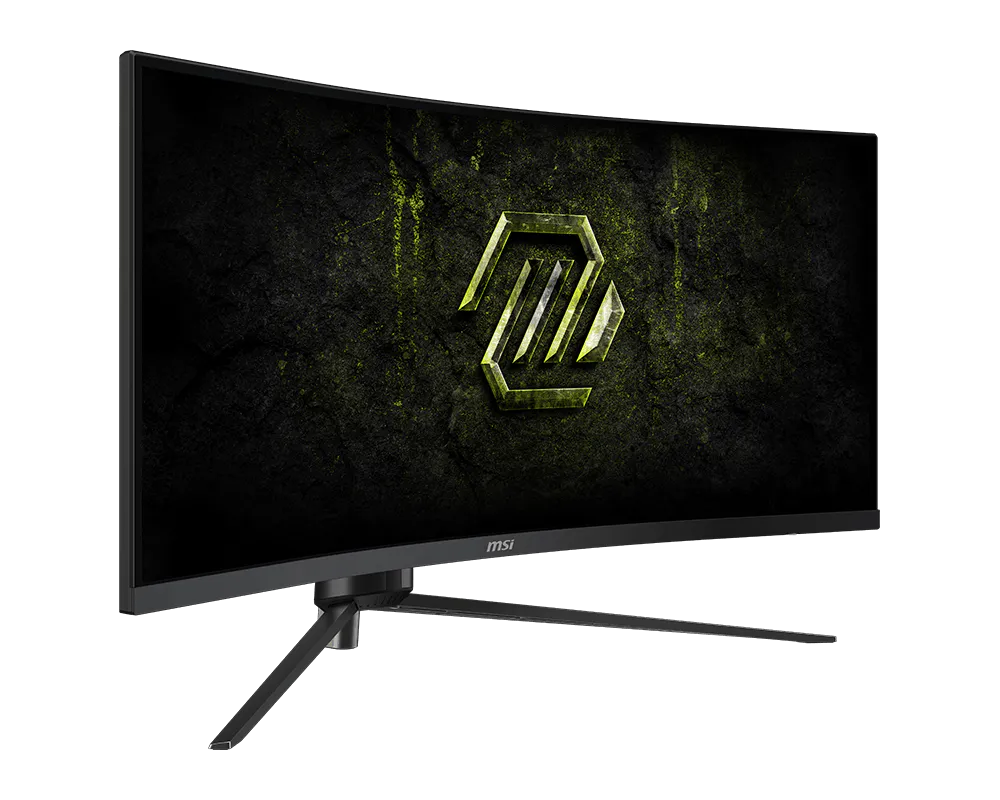

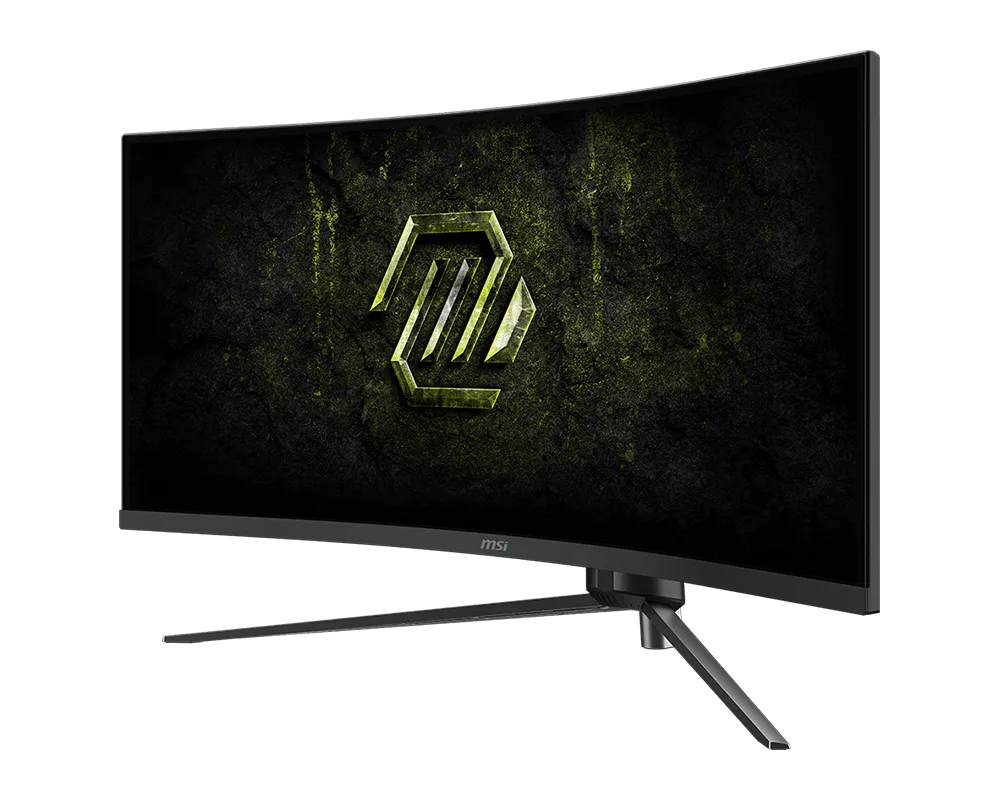

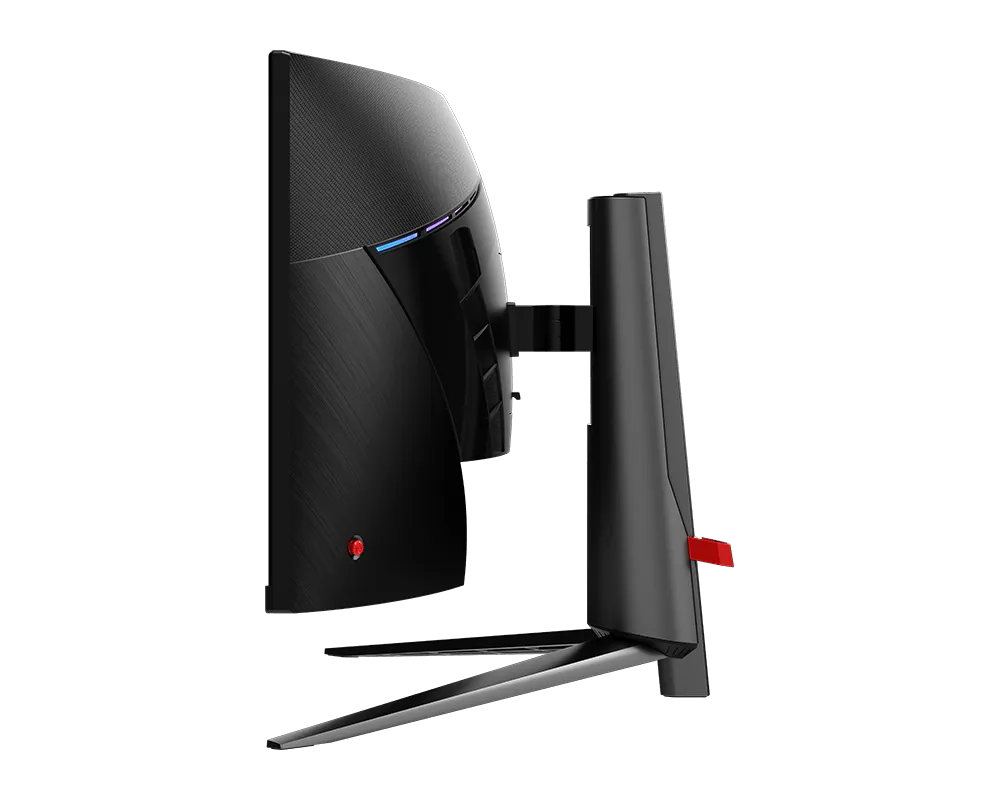

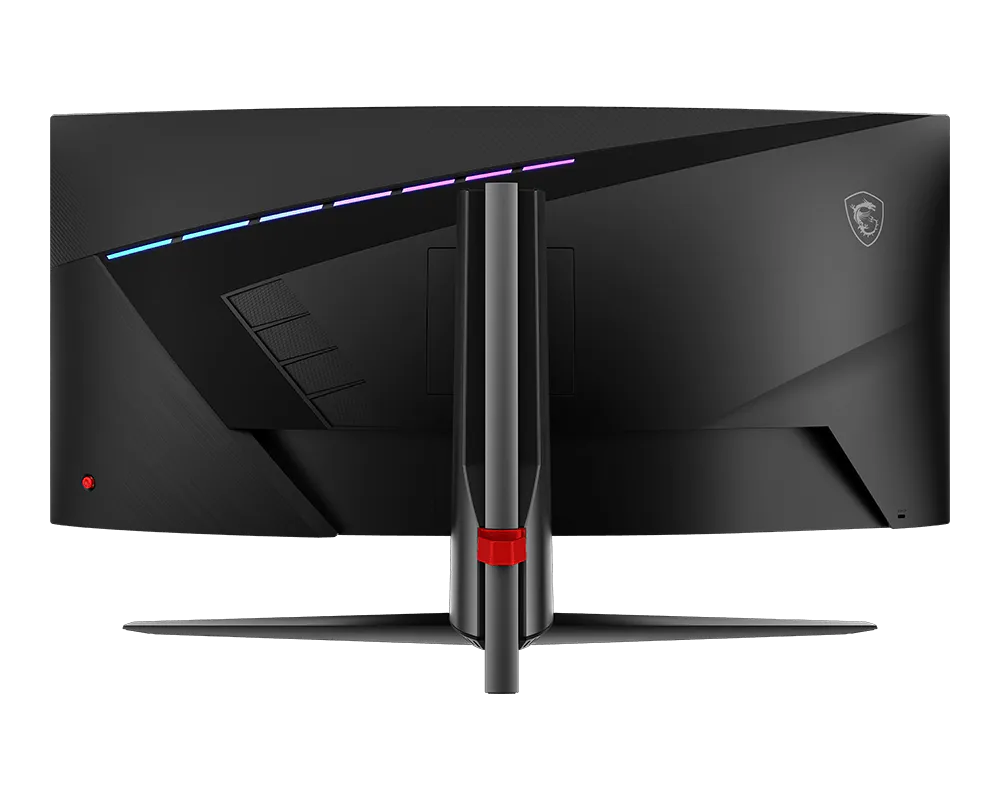

MSI MAG 345CQRF E20 34 Inch UWQHD 200Hz Curved Gaming Monitor
Experience immersive gaming with the MAG 345CQRF E20 gaming monitor. It features a 3440×1440 (UWQHD) panel, a 200Hz refresh rate, and a rapid 0.5ms (GtG, Min) response time. The monitor is HDR Ready, enhancing eye-catching details through adjustments in contrast and shadows. Designed for competitive FPS, first-person RPG/MMORPG, and flight/racing simulator genres, the MSI MAG 345CQRF E20 gaming monitor takes casual gaming to a new level, challenging players to see beyond the game.
- Rapid VA Panel – Provides 0.5ms (GtG, Min.) response time, optimizes screen colors and brightness.
- 200Hz Refresh Rate – Respond faster with smoother frames.
- 0.5ms (GtG, Min.) Response Time – Eliminate screen tearing and choppy frame rates.
- AI Vision – The new AI Vision technology can not only reveal details in dark areas but also enhance overall brightness and saturate colors.
- Less Blue Light – Use a software solution to reduce the light emission in the blue-violet region of the blue light spectrum.
Specifications
| Number of Screens | 1 |
| Panel Size | 34″ |
| Active Display Area (mm) | 797.22 (H) × 333.72 (V) |
| Curvature | 1000R |
| Panel Type | Rapid VA |
| Panel Resolution | 3440 × 1440 (UWQHD) |
| Pixel Pitch (H × V) | 0.23175 mm × 0.23175 mm |
| Aspect Ratio | 21:9 |
| Brightness (nits) | SDR: 300 cd/m² |
| Contrast Ratio | 3500:1 |
| DCR | 100,000,000:1 |
| Signal Frequency | 71.51~285.31KHz(H) / 48~200 Hz(V) |
| Activated Range | 48~200 Hz |
| Refresh Rate | 200 Hz |
| Response Time | 0.5 ms (GtG, Min.) |
| Dynamic Refresh Rate Technology | Adaptive-Sync |
| HDR Support | HDR Ready |
| Video Ports | 1 × DisplayPort 1.4a (HBR3) 2 × HDMI™ 2.0b (UWQHD@100Hz) |
| Audio Ports | 1 × Headphone-out |
| Viewing Angle | 178° (H) / 178° (V) |
| Adobe RGB / DCI-P3 / sRGB | 88% / 90% / 110% (CIE1976 Standard) |
| Surface Treatment | Anti-glare |
| Display Colors | 1.07B, 10 bits (8 bits + FRC) |
| Console Mode | Supported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz 1440p: 60Hz and 120Hz HDMI™ CEC: Supported VRR: PS5 and Xbox Supported |
| Power Type | External Adapter 19V 3.42A |
| Power Input | 100~240V, 50/60Hz |
| Adjustment (Tilt) | -5° ~ 20° |
| Adjustment (Swivel) | -30° ~ 30° |
| Adjustment (Pivot) | -1.5° ~ 1.5° |
| Adjustment (Height) | 0 ~ 100 mm |
| Kensington Lock | Yes |
| VESA Mounting | 100 × 100 mm |
| Dimension with Stand (W × D × H) | 797.53 × 332.32 × 418.9 mm (31.3 × 13.08 × 16.4 inch) |
| Dimension without Stand (W × D × H) | 797.53 × 158.18 × 363.02 mm (31.3 × 6.2 × 14.2 inch) |
| Weight (NW / GW) | 7.75 kg (17 lbs) / 11.3 kg (24.9 lbs) |
| Carton Dimension (W × D × H) | 985 × 228 × 510 mm (38.7 × 8.9 × 20 inch) |
| Accessories | 1× DisplayPort Cable (1.4a) 1× Power Cord (C13) 1× Power Adaptor 1× Quick Guide 4× VESA Screw |
| Note | HDMI™: 3440 × 1440 (Up to 100Hz) DisplayPort: 3440 × 1440 (Up to 200Hz) Support: HDMI™ CEC; PIP/PBP; Non Support: KVM |
