Description

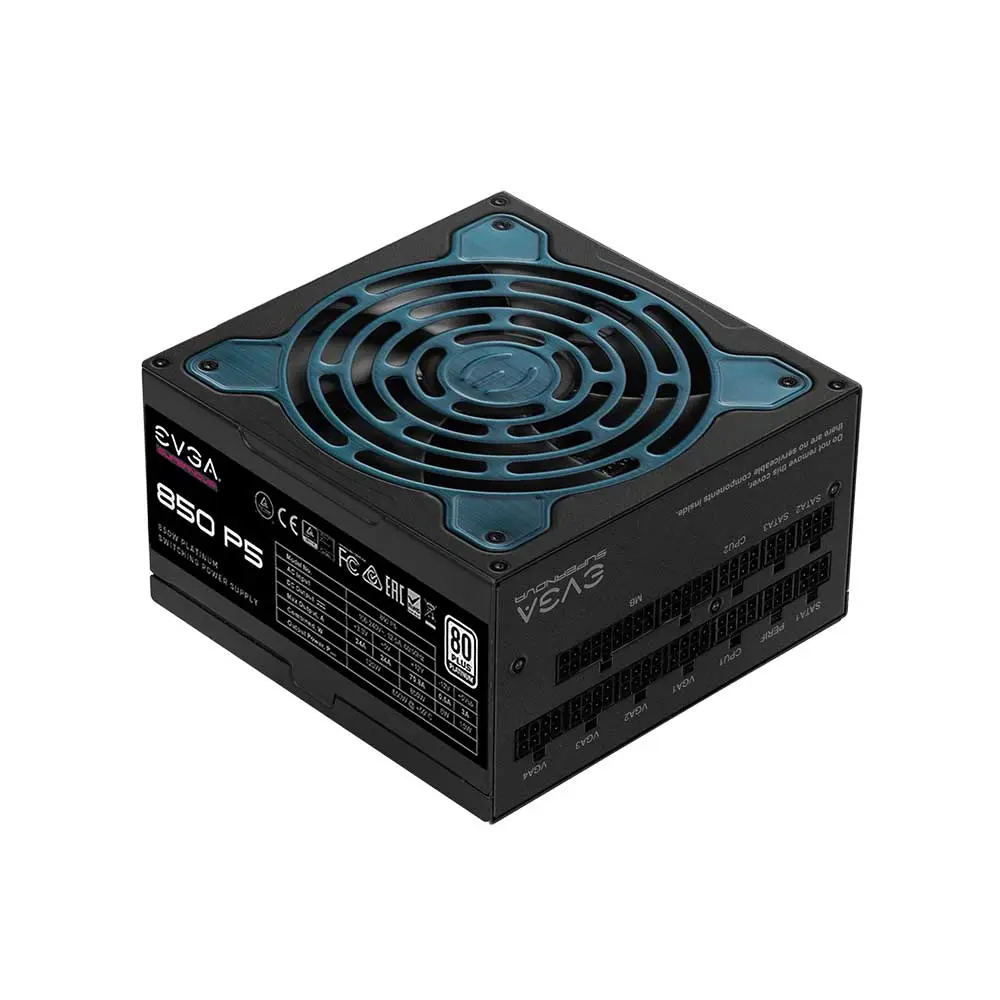

EVGA SuperNova 850 P5 850 Watt 80 Plus Platinum Fully Modular Power Supply
EVGA SuperNOVA 850 P5, 80 Plus Platinum 850W, Fully Modular, Eco Mode with FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Compact 150mm Size, Power Supply

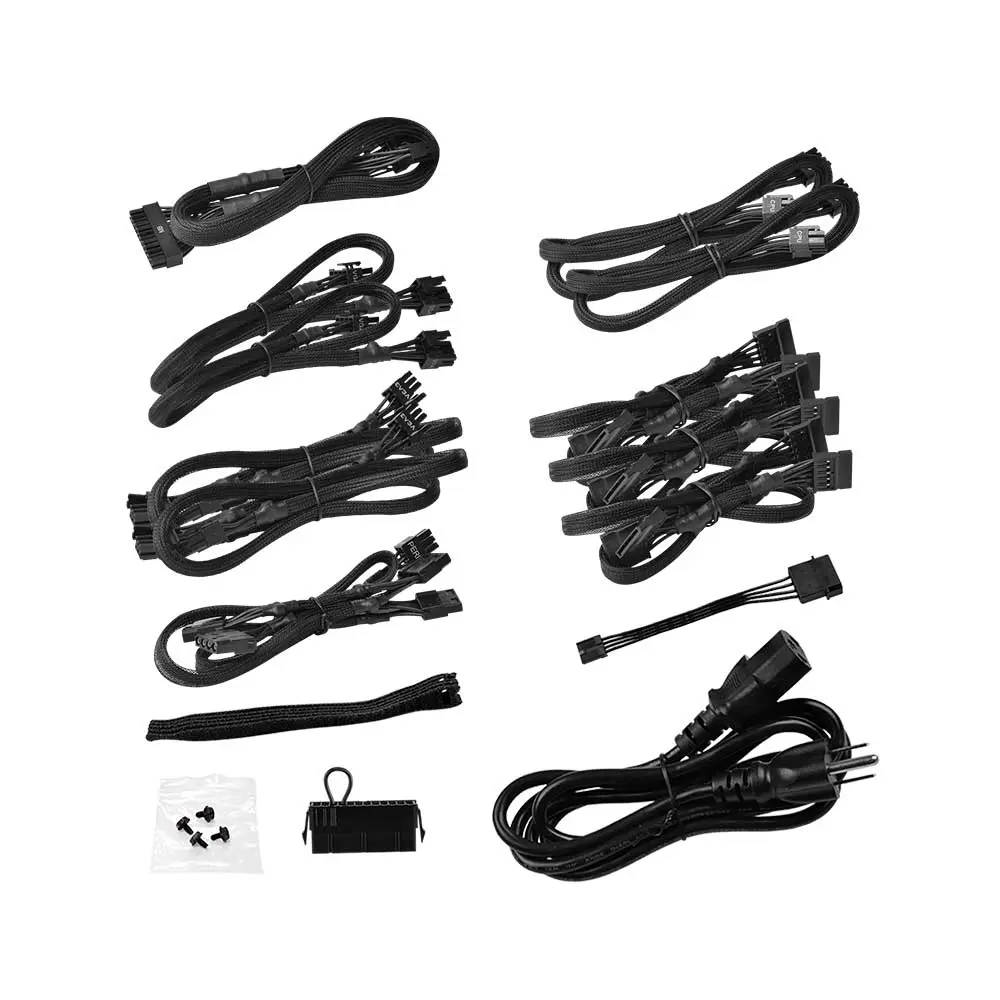

| Cable Length | |
| ATX Cable | 1x 600mm |
| EPS Cable | 2x 700mm |
| PCIe Cable | 2x 700mm, 2x 700mm, 850mm |
| SATA Cable | 3x 550mm, 650mm, 750mm |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm |
| Floppy Adapter | 1x 100mm |
| AC Power | 1x 1500mm |
| Modular Cable Type | Full |
| Connector Quantity | |
| 24 Pin ATX | 1x 24pin |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIe | 6x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |
| Power Specs | |
| AC Input | 100-240V~, 12-5A, 60/50 Hz |
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 24A | 70.8A | 3A | 0.5A |
| 120W | 850W | 15W | 6W |
| Total | 850W |
| Additional Details | |
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 6.70 lbs |
| Size | 86mm (H) x 150mm (W) x 150mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
| Warranty | 10 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
