Description
EVGA SuperNova 1300 P Plus Platinum 1300 Watt Fully Modular Power Supply
Features:
- Platinum Rated Efficiency: 80 Plus certification ensures that your power supply isn’t wasting power and turning it into excess heat. Under typical load, this power supply is 92% efficient or higher.
- 100% Solid State Capacitors: Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

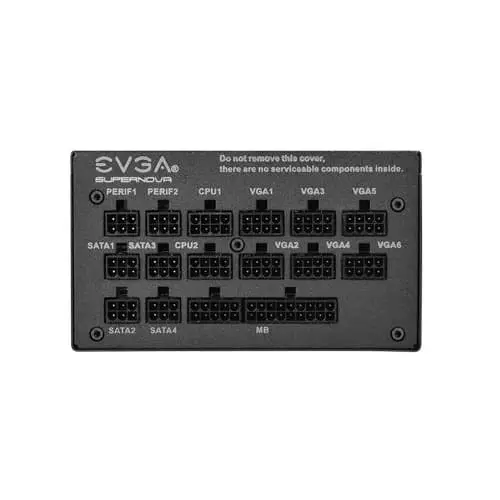

- Fully Modular Design: A fully modular design, allows cables to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.
- Tight Voltage Regulation (<1%): A single +12V rail offers the best power output, rail stability, and compatibility with the latest hardware. EVGA SuperNOVA P+ power supplies provide up to 133A on a single rail!
- Quiet and Durable Fan Bearings with EVGA ECO Mode: A high-quality 135mm fan gives the SuperNOVA P+ an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime. With EVGA ECO Mode, your power supply will remain silent under medium-to-low loads.
- To Protect and to Serve: This PSU will cover your circuits with complete protection: OCP, OVP, OTP, OPP, SCP, and UVP.
The SuperNOVA P+ PSU
Enter the SuperNOVA P+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Platinum Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 P2 and 1200 P2 power supplies left off and continue the tradition of EVGA quality and performance.
Additionally, the SuperNOVA P+ power supplies feature a cleaner internal layout to increase airflow, a Variable Resistor module (to increase voltage stability), two DC to DC modules for more efficient power switching on all models, EVGA ECO Mode, a full suite of power supply protections, and EVGA’s World-Leading Global 10-Year Warranty on all P+ power supplies.Additionally, the SuperNOVA P+ power supplies feature a cleaner internal layout to increase airflow, a Variable Resistor module (to increase voltage stability), two DC to DC modules for more efficient power switching on all models, EVGA ECO Mode, a full suite of power supply protections, and EVGA’s World-Leading Global 10-Year Warranty on all P+ power supplies.
When it comes to building a system, even the smallest differences can make or break your build. The 1600 P+ is 20mm shorter than its P2 counterpart, giving you more space without sacrificing quality.
Quiet and Long-Lasting Fans
Double Ball Bearings are the industry standard for any power supply expected to carry heavy loads on a regular basis due to their durability and low noise level. Fluid Dynamic Bearings reduce the wear and tear on a fan’s bearing, which reduces noise and increases its lifespan.
The SuperNOVA P+ is loaded in many areas, including a single 12V. rail, 100% Japanese capacitors, VR module, and DC to DC converter on all SuperNOVA P+ power supplies. Compliant with IEC 62368, this results in over 92% efficiency, tight 12V. load regulation, and stable power to all connected devices.
Operating Temperature:0° to 50° C
Japanese Capacitors: 100%
ECO Mode: Yes
MTBF:100,000 Hours
Size: 86mm (H) x 150mm (W) x 200mm (L)
Approvals:TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing:135mm Fluid Dynamic Bearing
| Wattage | 1300 Watt |
| Certification | 80 Plus Platinum |
| Modular | FULLY MODULAR |
| PCIe Connector (6+2) | 8 |
| SATA Connector | 12 |
| Peripheral (4-Pin) | 6 |
| Warranty | 10 Years |
| Note*** | Features, Price, Specifications are subject to change without notice. Images use for Representation Purposes Only. |
