Description

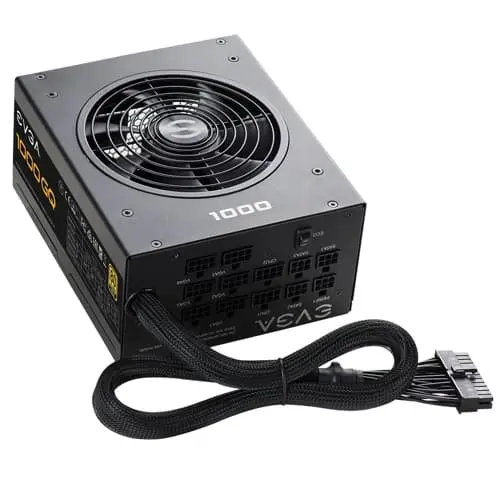

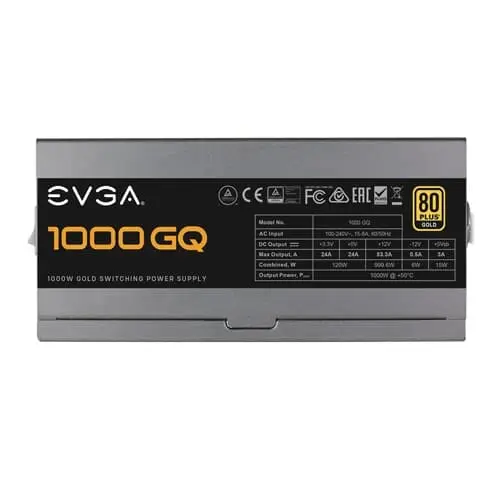

EVGA 1000 GQ 80+ Gold 1000 Watt Semi Modular Power Supply
EVGA 1000 GQ, 80+ GOLD 1000W, Semi Modular, EVGA ECO Mode, 5 Year Warranty, Power Supply 210-GQ-1000-V1
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- 5 Year Warranty and unparalleled EVGA Customer Support
- Modular Design to reduce clutter and improve airflow
- Active Clamp +DC to DC design for efficient operation
- Whisper Silent with 135mm Fluid Dynamic Bearing Fan
- NVIDIA SLI & AMD Crossfire Ready
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- 100% Japanese Capacitors ensure long-term reliability
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Active Power Factor Correction
Specification:
| Cable Lengths |
ATX Cable: 1x 600mm
EPS Cable: 2x 650mm
PCIe Cable: 4x 650mm, 750mm, 2x 650mm
SATA Cable: 3x 550mm, 650mm, 750mm, 850mm
Four-Pin Peripheral Cable: 1x 550mm, 650mm, 750mm
Floppy Adapter: 1x 100mm (m)
AC Power: 1x 1530mm
|

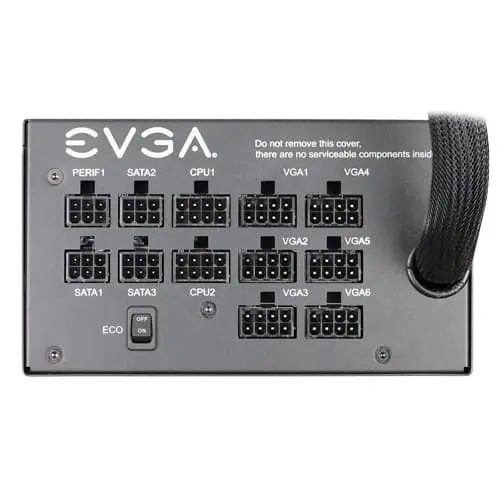

| Connector Quantity | 24 Pin ATX: 1x
EPS (CPU): 2x 8pin (4+4) PCIe: 10x 8pin (6+2) SATA: 12x Four-Pin Peripheral: 3x Floppy: 2x
|
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors ECO Mode MTBF Net Weight Size |
100% Yes 100,000 Hours 7 lbs 85mm (H) x 150mm (W) x 180mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing AC Input Wattage |

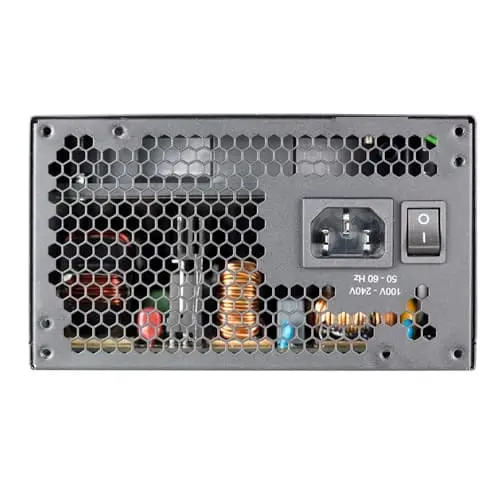

135mm Fluid Dynamic Bearing 100 – 240 VAC, 16A, 50 – 60 Hz 1000W |
| Warranty | 5 Years limited warranty with registration. |
| Note*** | *** Features, Price, Specifications are subject to change without notice. Images use for Representation Purpose Only. |
