Description

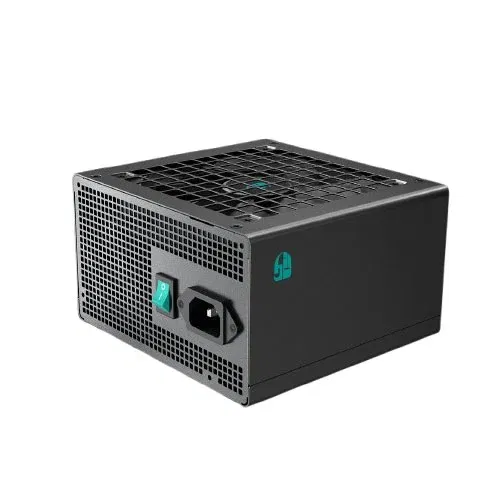

DeepCool Gamer Storm PN750M 80 Plus Gold ATX 3.1 Fully Modular Power Supply
Features:
- Type – ATX12V V3.1
- Product Dimensions – 150×140×86mm (W x L x H)
- Fan Size – 120mm
- Topology – Active PFC + Full Bridge SRC LLC + DC to DC
- Capacitors – Japanese Bulk Capacitor
- Power Good Signal – 100-150ms
- Hold Up Time – ≥16ms(80% Load)
- Efficiency – ≥90% Under Typical Load(50% Loading)
- Protection – OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
- Operation Temperature – 0 – 40℃
- MTBF – 100,000 Hours
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN750M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2×6 cable, the PN750M provides up to 450W for modern GPUs.
SLEEVED CABLES
The PN750M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
DYNAMIC FDB FAN

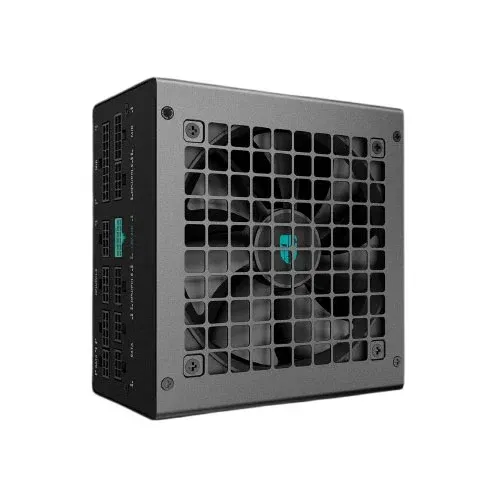

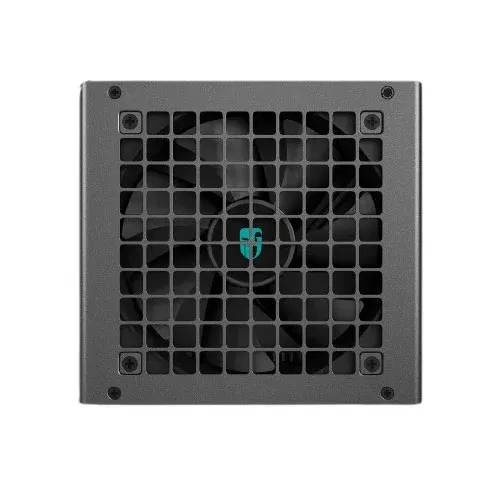

The PN750M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN750M will operate at altitudes up to 5000 meters above sea level
| Wattage | 750 Watt |
| Series | PN-M SERIES |
| Certification | 80 Plus Gold |

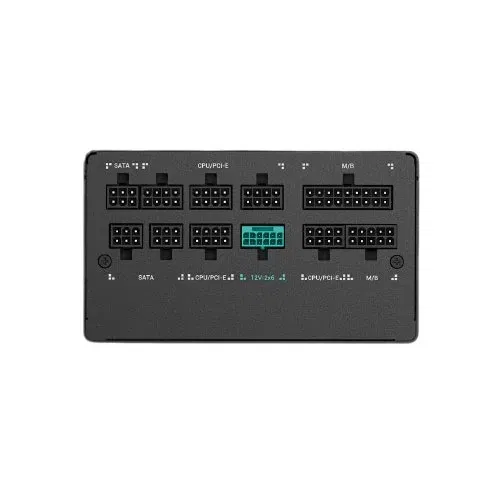

| Modular | FULLY MODULAR |
| PCIe Connector (6+2) | 3 |
| SATA Connector | 4 |
| Peripheral (4-Pin) | 1 |
| Warranty | 10 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
