DeepCool CL660 ARGB ATX Mid Tower Cabinet
CL660 rethinks the design of the body for the liquid cooling era. Thanks to the physical separation of thermal zones and air flow routes, it prevents the accumulation of heat and cross interference, which cannot be avoided in traditional structures. In addition, at the bottom of the body there are two fans with reverse blades, which ensures a balance between cooling efficiency and modern aesthetics.
SEPARATION FOR THE PERFECT FLOW
CL660 provides more efficient cooling thanks to a modular design with separated cameras. Radiators are located in a special zone, creating separate air flow routes for heat-generating components, and allowing the entire system to work with maximum efficiency.
BALANCE IN LAYERS

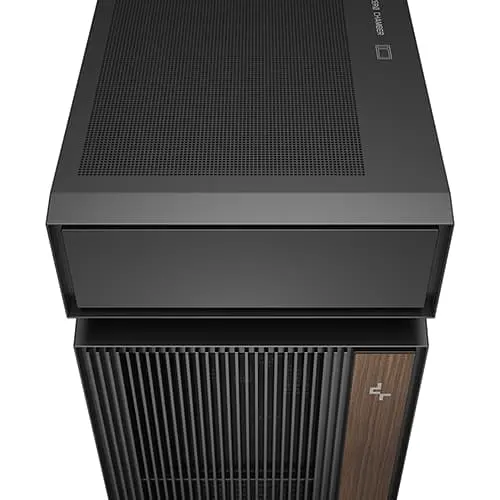

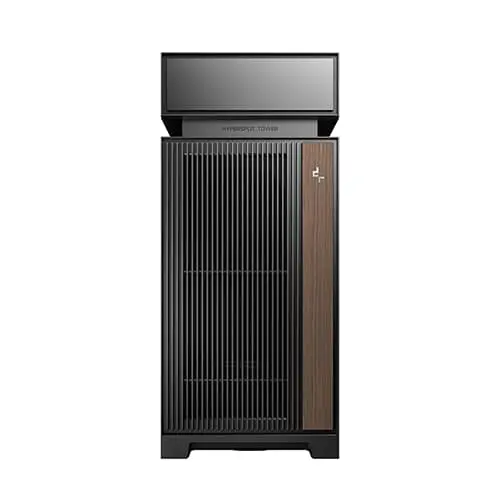

The raised upper chamber redefines the overall silhouette and provides a good organization of space. The vertical grille on the front panel provides a natural inflow of air and sets a visual rhythm, and natural wood organically complements the modern concise image.
BUILT-IN ATMOSPHERE
Pre-installed and well-built binary FL12R SE fans at the bottom pull the fresh air and illuminate your design with bright light without taking visual space.
WIDE RANGE OF COOLING OPPORTUNITIES
Disclose the maximum cooling potential by supporting all-in-one SWO and eight fans with a diameter of 120 mm. Above the radiator you can install three fans with a diameter of 120 mm or two fans with a diameter of 140 mm in the configuration of push-pulll (the fan – radiator – fan)
Support for radiators
- Top: 120/240/280/360 mm
- Front: N/A.
- Back: 120 mm
Support for fans
- Top: 3×120 mm / 2×140 mm
- Front: 2×140 mm
- Back: 1×120 mm / 1×140 mm
- Bottom: 2×120 mm Preinstalled
COLLECT WITH CONFIDENCE
The CL660 provides enough space for high-performance systems, accommodating 788 mm high graphics cards, high air coolers up to 175 mm high and standard ATX power supplies up to 160 mm long. Support for the rear connection of the motherboard and 7 expansion slots simplify future updates.
Simple Cable Control
35 mm space for laying cables, velcro and neat covers simplify the laying of cables for everyone.
Built-in hook for headphones
The hidden retractable hook in the connecting bridge allows you to keep order on the table.
Panels with fast mounting
All panels are removed without tools, which provides fast and full access at any time.
GPU Support
Included is a strong bracket for reliable fixation of the video card.
Front-line installation of the power supply
The power supply is installed in the front in a horizontal position, with cable connectors facing the rear side of the motherboard.
Available I/O ports
2 USB 3.0 ports, Gen 2 Type-C port and audio jack, all located within easy availability
- Size of the device: 457.5×235×533.5mm(D x W x H)
- Net Weight: 10.02kg
- Materials: ABS+SPCC+hard-floored glass
- Support for the motherboard: Mini-ITX / Micro-ATX / ATX (Back connector)/Micro-ATX(Reverse connector)
- Front panel I/O: USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
- 3.5″ Compartment: 2+1
- 2.5″ Compartments: 1+1
- Expansion Slots: 7 slots
- Pre-installed fans: Bottom part: 2×120mm ARGB(Reverse Blade)
- Maximum CPU Height: 175mm
- GPU Size Limit: 413mm/388mm (With Front Of Fan)
- Type of power unit: ATX PS2(maximum length: 160mm)/SFX/SFX-L
| Cabinet Size | MID-TOWER |
| Color | Black |
| Material | ABS,SPCC,Hard-Floored Glass |
| Expansion Slots | 7 |
| Motherboard Size | ATX,M-ATX,M-ITX |
| Max CPU Cooler Height | 175mm |
| Max PSU Length | 160mm |
| Max Gpu Length | 388mm |
| Max 3.5″ HDD | 2 |
| Max 2.5″ SSD | 1 |
| Dust Filters | Top, Bottom |
| Pre Installed Fans | 2 |
| Max Fan Support | 8 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | USB3.0×2, Gen2 Type-C x1, Audio/Mic×1 |
| Warranty | 1 Year |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
