Description

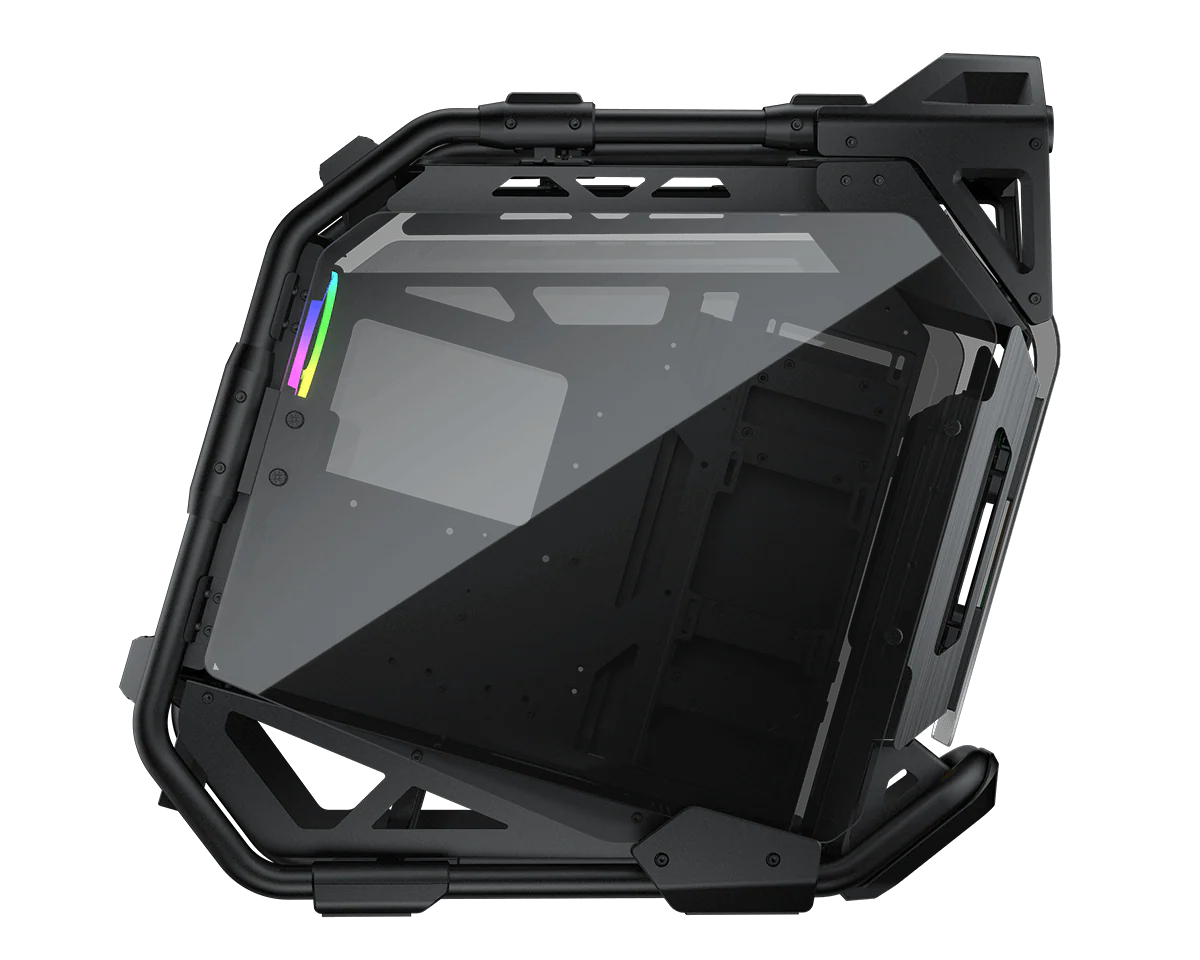

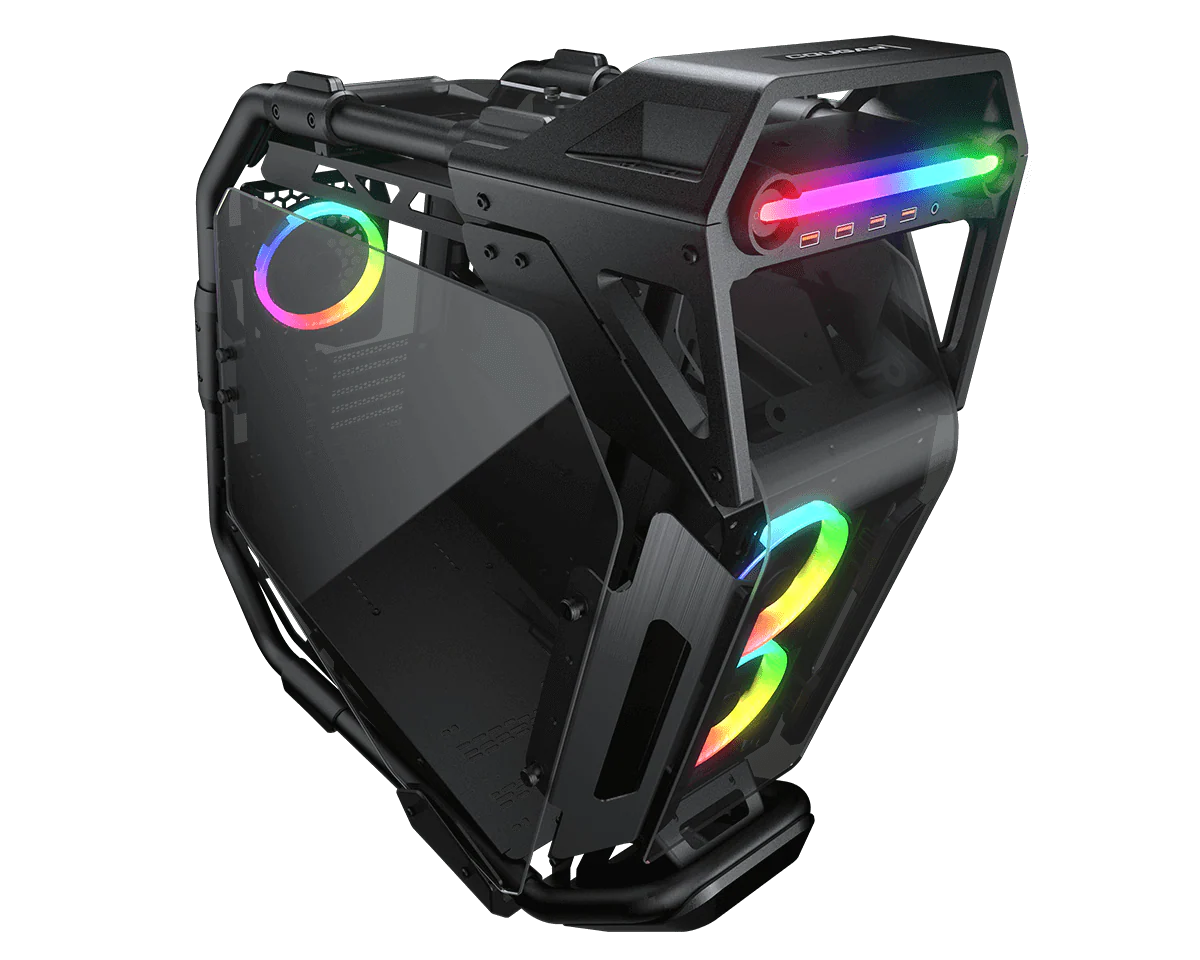

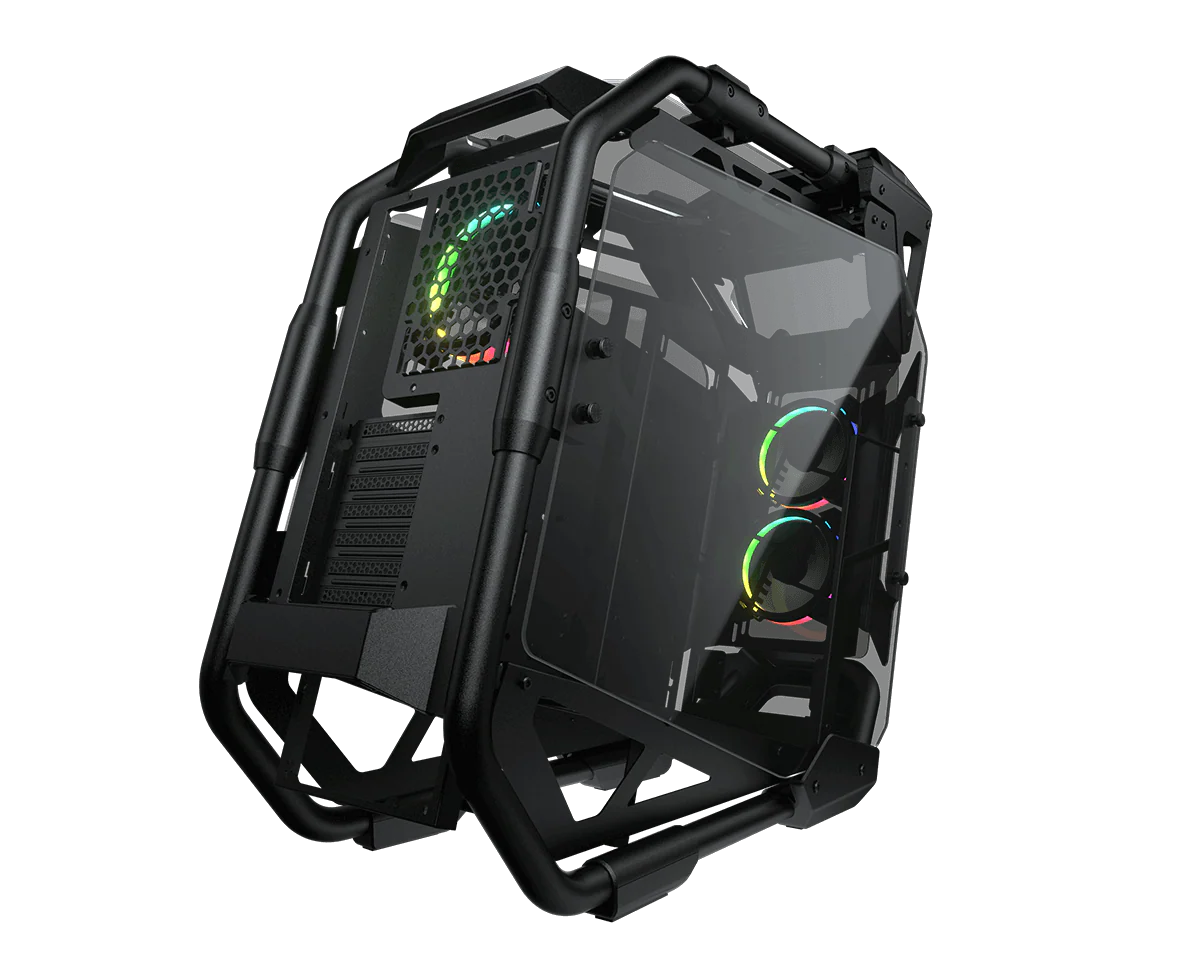

COUGAR CRATUS ATX Mid-Tower RGB Cabinet
| Product Name | Cratus | |
|---|---|---|
| Model No. | CGR-5LMSB | |
| Case Form Factor | Mid Tower | |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX | |
| Dimensions (WxHxD) | 283 x 636 x 635 (mm) 11.1 x 25 x 25 (in) |
|
| I/O Panel | Type C Gen 2 (Key A 20-pin connector) x 1, USB 3.0 x 4, 4 Pole Headset Audio Jack x1, RGB Button |
|
| 3.5″ Drive Bay | 2 | |
| 2.5″ Drive Bay | 3 + 2 (converted from 3.5″ drive bays) / (3 SSD trays included) | |
| Expansion Slots | Horizontal : 7 / Vertical : 4 (install with a vertical bracket in the accessory kit) | |
| Vertical GPU Support | Yes | |
| Cooling Fan Support | Front | 120mm x 2 / 140mm x 2 |
| Top | 120mm x 3 / 140mm x 2 | |
| M/B Side | 120mm x 3 | |
| Rear | 120mm x 1 | |
| Pre-installed Fans | Front | 120mm ARGB fan x 2 |
| Rear | 120mm ARGB fan x 1 | |
| Speed | 1000 ± 100 RPM | |
| Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) | |
| Maximun Number of Fans | 9 Max. | |
| Water Cooling Support | Front | *280mm / 240mm / 140mm / 120mm |
| Top | 360mm / 280mm / 240mm / 140mm / 120mm | |
| M/B Side | 360mm / 240mm / 120mm | |
| Transparent Panel | Tempered Glass x 4 | |
| Onboard Lighting System | Yes | |
| RGB Sync with M/B | Yes | |
| Max. Graphics Card Length | 460 (mm) / 18.1 (in) without fans and radiator at M/B side 325 (mm) / 12.8 (in) with fans and radiator at M/B side |
|
| Max. CPU Cooler Height | 190 (mm) / 7.5 (in) | |
| Max. PSU Length | 200 (mm) / 7.9 (in) | |
| Warranty | 2 Years | |
| Note** | **Prices, Specifications & Features are subject to change without notice | |
