Cougar CFV235 Mesh Vision ARGB White CEB Mid Tower Case

Description

Cougar CFV235 Mesh Vision ARGB White CEB Mid Tower Case

• Central Floating Ventilation (CFV) free-floating separation provides a unique visual identity.
• True floating void adds an extra dimension of airflow across 270° of access.
• A 3-in-1 front panel module pre-assembles a dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into a single unit for even easier maintenance.
• The module uses a pogo pin to connect with the case’s built-in counterpart, minimizing cabling for easy setup and a cleaner view.
• 9.16-inch IPS TFT LCD delivers real-time readouts and customizable visuals in 1920 x 462 resolution with 60Hz refresh rate, fully accessible from your desktop through control software.
• The Aurora RGB lighting strip brings the awe and glory of RGB lighting to the free-floating space.
• Accommodates a maximum GPU length of 400mm.
• Compatible with Reverse Connector / Mini ITX / Micro ATX / ATX / CEB motherboards.
• USB 3.2 Gen 2×2 Type-C (20 Gbps) x 1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device connectivity.
• Houses 2 x 3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays)

True Free-Floating Structural Separation

Conventional design squeezes both the PSU – a prime source of heat – and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.

270° Airflow Access Within Suspended Space

The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.

Plug and Play With One Module

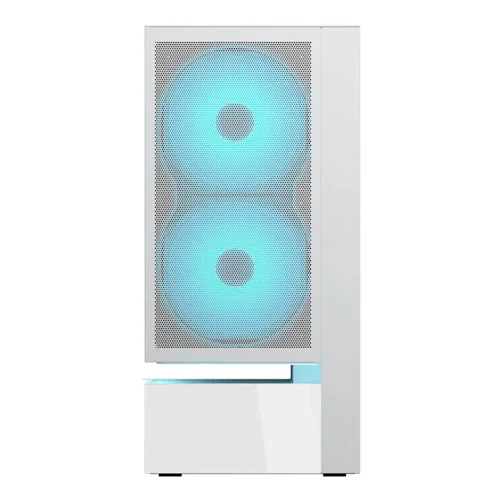

The 3-in-1 front panel module – merging dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into one pre-assembled unit – lets you handle maintenance in one smooth step.

Smart Pogo Pin Connector

A pogo pin on the 3-in-1 module maintains physical contact with a counterpart built into the CFV case minimizing cabling without compromising critical power and signal relay.

Pre-Installed Dual 160mm ARGB PWM Fans

Let your build hit the ground running: dual 160mm ARGB PWM fans are pre-installed and assimilated into the 3-in-1 front panel module, saving you setup time and providing ready-to-go, optimum cooling.

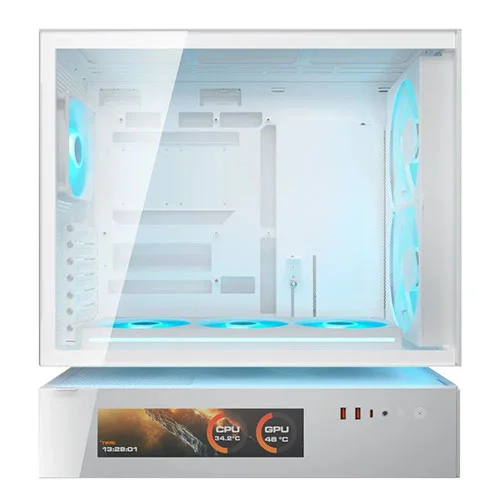

The CFV235 Mesh Vision integrates a 9.16-inch IPS TFT LCD panel for real-time system monitoring in an ultra-crisp 1920 x 462 resolution with a 60Hz refresh rate. Keep an eye on critical data from temperatures to fan speeds, while you personalize the display with JPG, PNG, GIF, or MP4 content, all managed through desktop software that acts as a live command center.

Operational Control

Performance data and absolute control over customisation and display alignment can be instantly and fully accessed through the installable software, equipping you with a command center console directly on your desktop.

The Rainbow In Between

The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.

Light. Speed

The CFV235 Mesh Vision features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.

Dual Magnetic Filtration

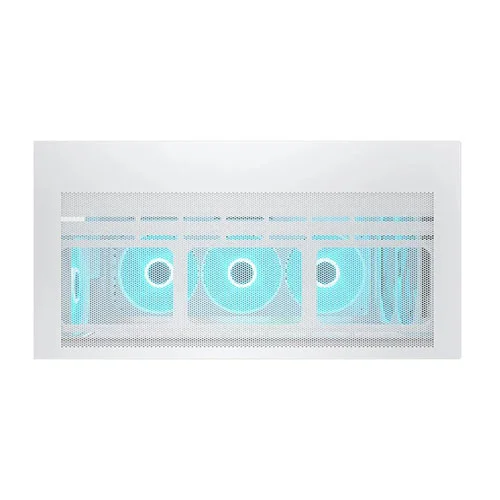

Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.

Vertical Spatial Efficiency

The placement of the central floating ventilation channel on a vertical axis avoids expanding the overall width, keeping the footprint tight.

Space Engineering

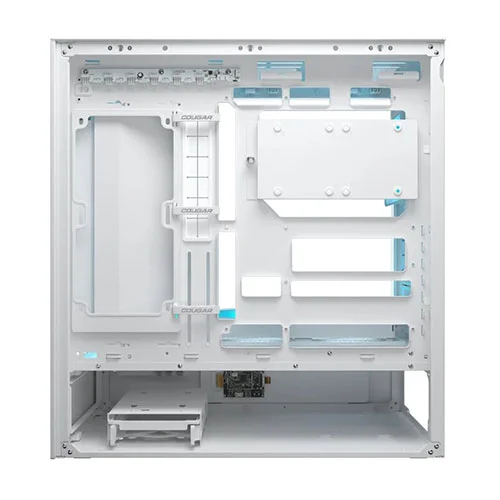

38mm of clearance behind the motherboard tray improves cable management ,offering more room to route and conceal cables of varying thickness. Five adjustable Velcro straps offer versatile options to secure and tidy your layout.

Architectural Strength

A 1.5mm-thick steel frame reinforces the chassis, preserving structural integrity even with the suspended central ventilation design. The result is a bold, open architecture that stays rigid, reliable, and ready for high-performance builds.

Versatile Compatibility

Compatible with reverse connector motherboards and accommodating GPUs of up to 400mm, the CFV235 Mesh Vision is engineered for the gaming rigs of the future. A cover pulls triple duty as airflow guide, cable management facilitator and GPU holder which can be optimally placed according to motherboard specifications: this makes the most efficient use of available space by not only reducing cable clutter but improving performance stability.

Cooling Capacity

The CFV235 Mesh Vision has a fan capacity of 3x120mm or 2x140mm on the top, 3x120mm on the floor of the main chamber, 2x160mm fans on the front, and 1x120mm on the rear (2x160mm and rear 120 mm ARGB PWM fans are pre-installed). Water cooling support maxes out at 360mm on the top.

Peripheral Vision

The CFV235 Mesh Vision is equipped with USB 3.2 Gen 2×2 Type-C (20 Gbps) x1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device and peripheral connectivity.

Full House

Accommodating 2×3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays), versatile storage options gives you plenty of room to expand your storage as needed.

Product Name: CFV235 Mesh Vision

Case Form Factor: Mid Tower

Motherboard Type: Mini ITX / Micro ATX / ATX / CEB

Dimensions (WxHxD): 235 x 493 x 460 (mm)

9.16″ LCD Monitor (1920 x 462 px): Yes

I/O Panel: USB 3.2 Gen 2×2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button

3.5″ Drive Bay: 2

2.5″ Drive Bay: 2+2 (converted from 3.5″ drive bays)

Expansion Slots: 7

Cooling Fan Support

• Front: 160mm
• Top: 120mm x 3 / 140mm x 2
• Bottom: 120mm x 3
• Rear: 120mm x 1

Pre-installed Fans

• Front: 160mm ARGB PWM fan x 2
• Bottom: Unity 360 ARGB PWM Reversed fan x 1
• Rear: 120mm ARGB PWM fan x 1
• Speed: 160mm ARGB PWM fan: 500-1200 ± 10% RPM / Unity 360 ARGB PWM Reversed fan: 700-1600 RPM ±10% /  120mm ARGB PWM fan: 500-1400 ± 10% RPM
• Connector: 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)

Maximun Number of Fans: 9

Water Cooling Support

• Top: 360mm / 280mm / 240mm / 140mm / 120mm
• Rear: 120mm

Aurora LED Strip: Yes

PWM and RGB hub Sync with M/B: Yes

Max. Graphics Card Length: 400 (mm) / 15.7 (in)

Max. CPU Cooler Height: 175 (mm) / 6.9 (in)

Max. PSU Length: 200 (mm) / 7.9 (in)

Specifications
