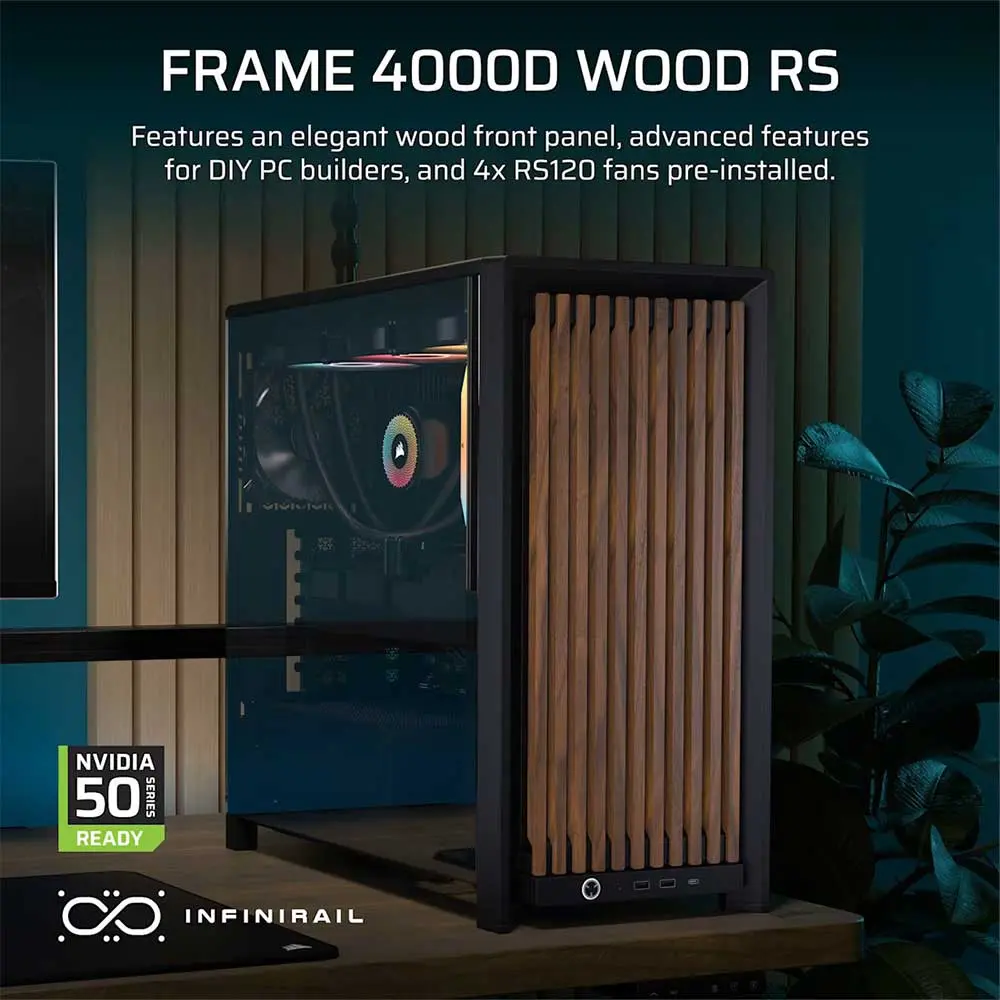

Corsair Frame 4000D Wood RS Module Mid Tower Cabinet Black/Walnut
The Corsair Frame 4000D WOOD RS lets you create a standout build that blends right in thanks to a refined front panel featuring real wood for the perfect mix of style and cooling performance.
- Real wood front panel for a natural aesthetic
- 4x RS120 PWM fans for effective low-noise cooling

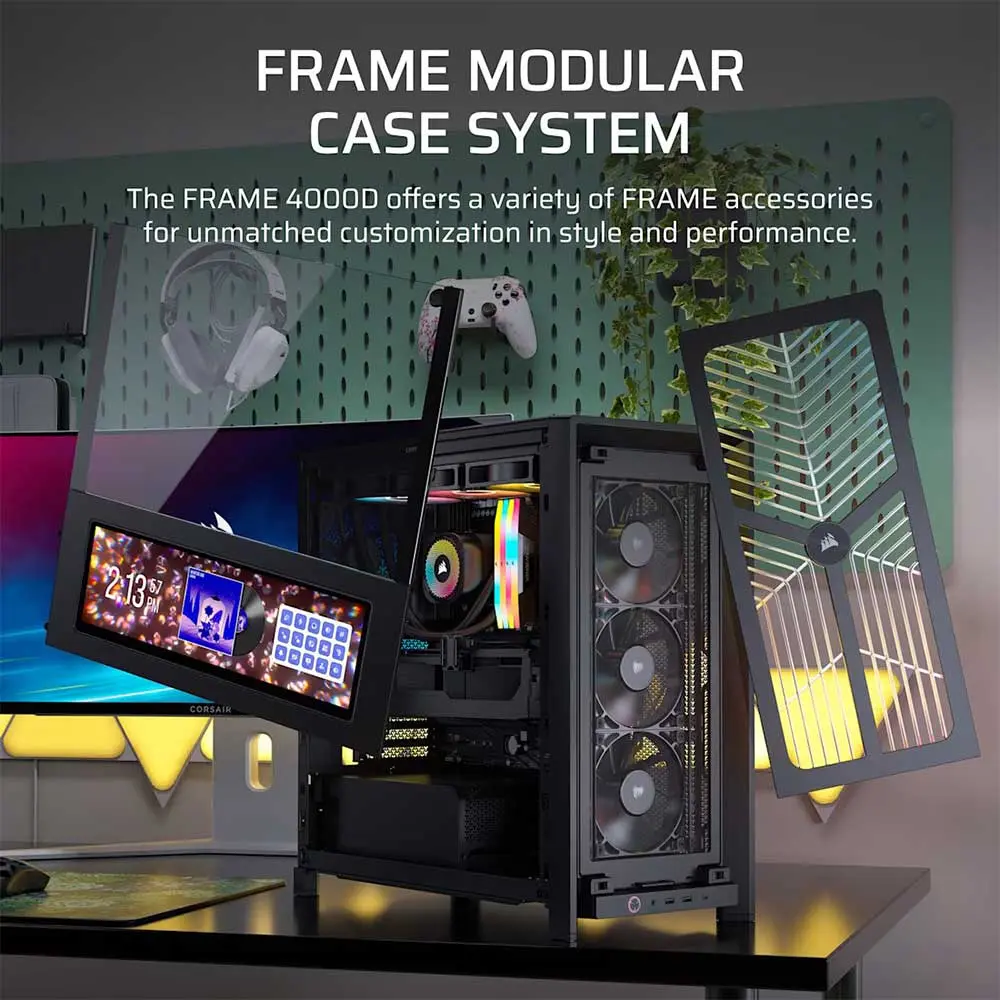

- Fully-modular design for next-level customization

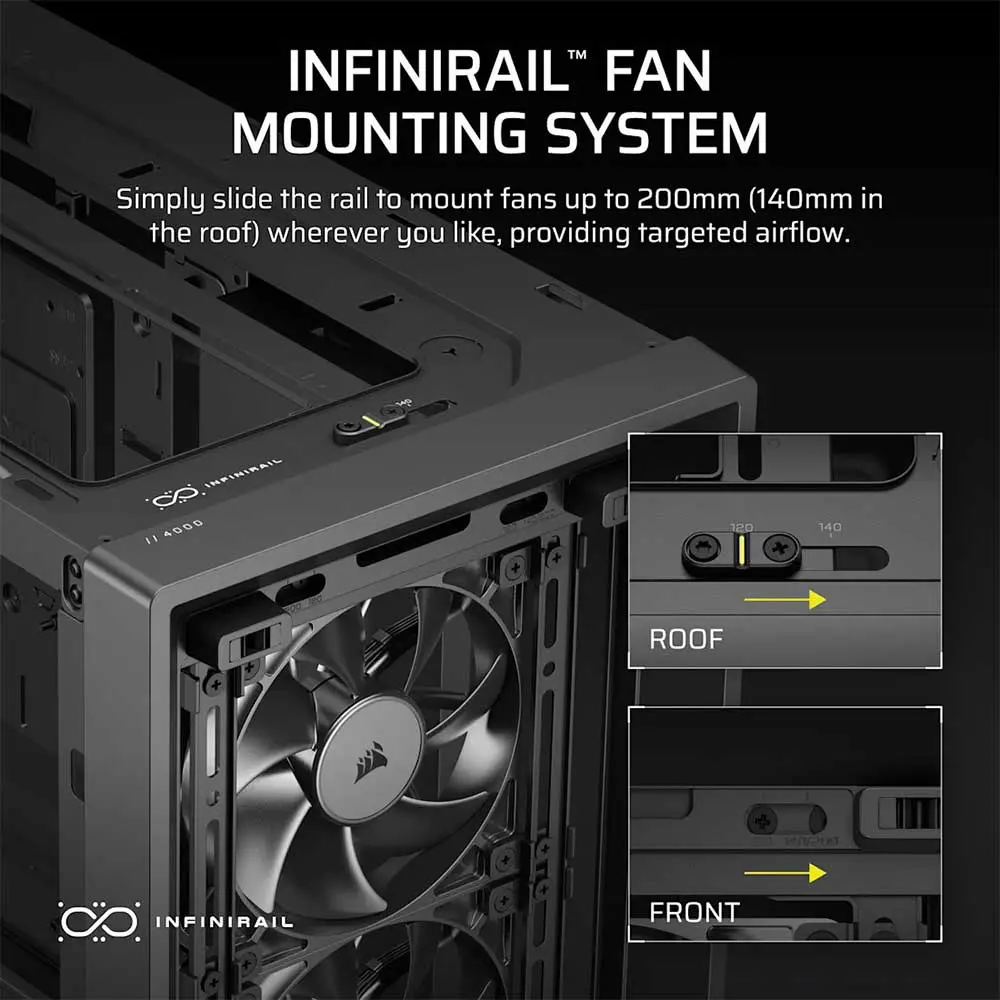

- InfiniRail™ Fan Mounting System for easier building
- 3x 360mm radiator mounting locations
- Built-in GPU Anti-sag Stabilization Arm
- Compatible with reverse-connector motherboards
| Case Supported | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Case Height | 486mm |
| Case Length | 490mm |
| Case Width | 239mm |
| Material | Steel, Solid Wood, Tempered Glass, Plastic |
| Color | Black |
| Case Size | Mid Tower |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Case Window | Tempered Glass |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Internal 3.5″ Drive Bays | 1 |
| Internal 2.5″ Drive Bays | 2 |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |

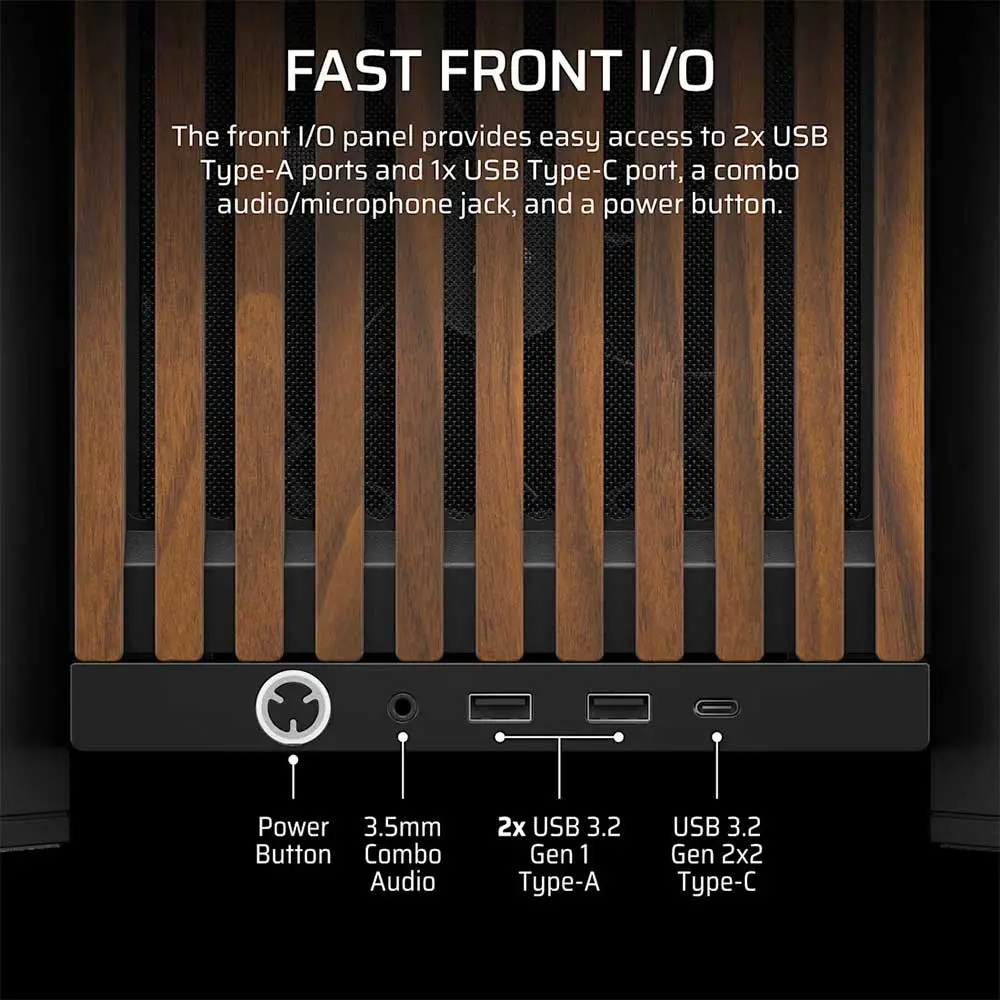

| Case Front IO | (1x) USB 3.2 Gen 2×2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Maximum GPU Length | 430mm |
| Weight | 11.82Kg |
| Case Expansion Slots | 7 Horizontal or 3 Vertical |
| Case Power Supply | ATX |

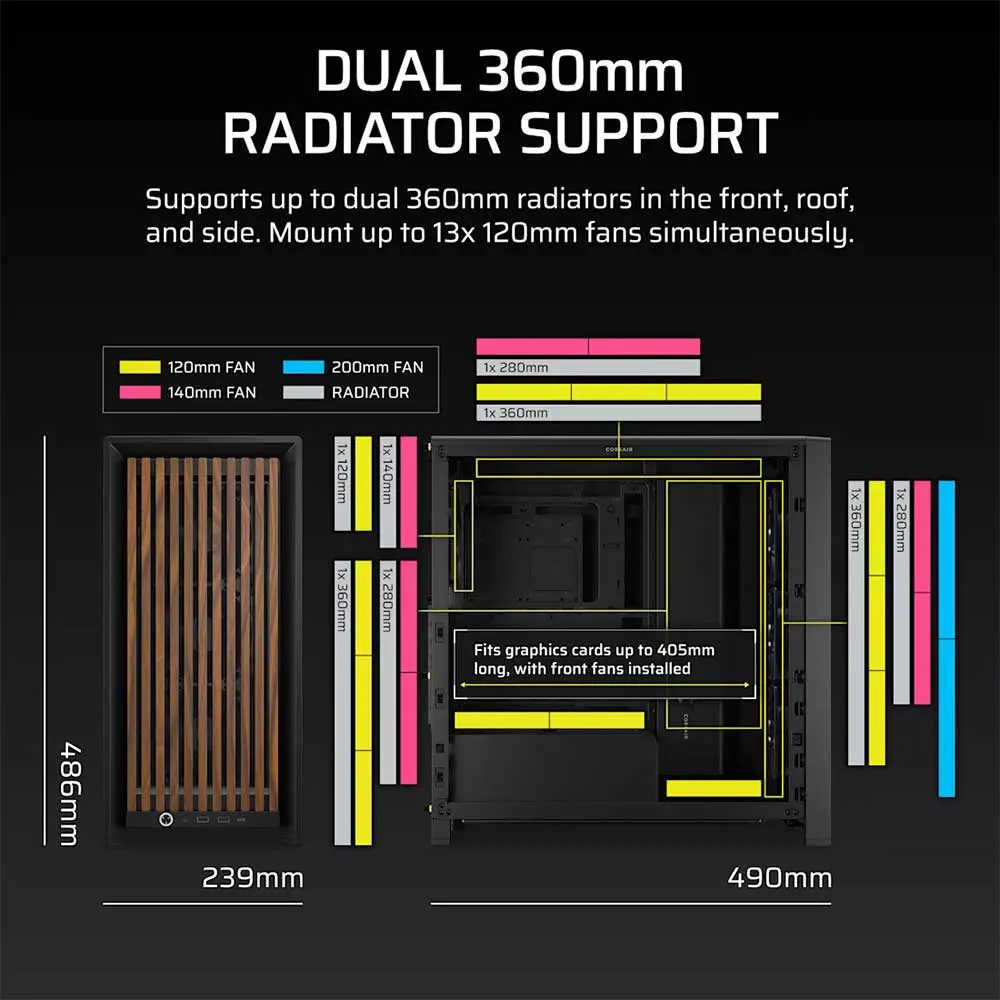

| Radiator Support – Top | 360mm, 280mm, 240mm |
| Radiator Support – Front | 360mm, 280mm, 240mm |
| Radiator Support – Bottom | None |
| Radiator Support – Side | 360mm, 280mm, 240mm |
| Radiator Support – Rear | 140mm, 120mm |
| Fan Support – Top | 3x 120mm, 2x 140mm |
| Fan Support – Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support – Bottom | 3x 120mm |
| Fan Support – Side | 3x 120mm; 2x 140mm |
| Fan Support – Rear | 1x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio |

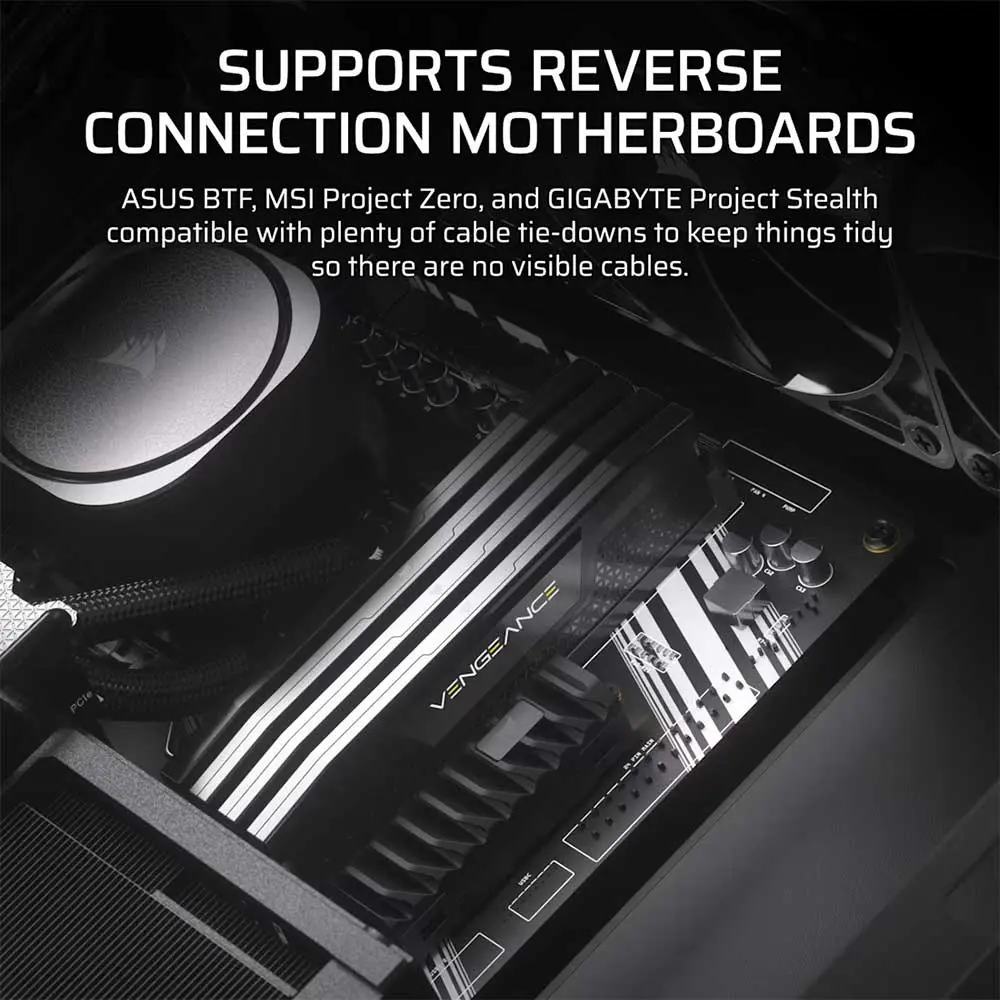

| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS Series |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| RapidRoute Included | No |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
