Description

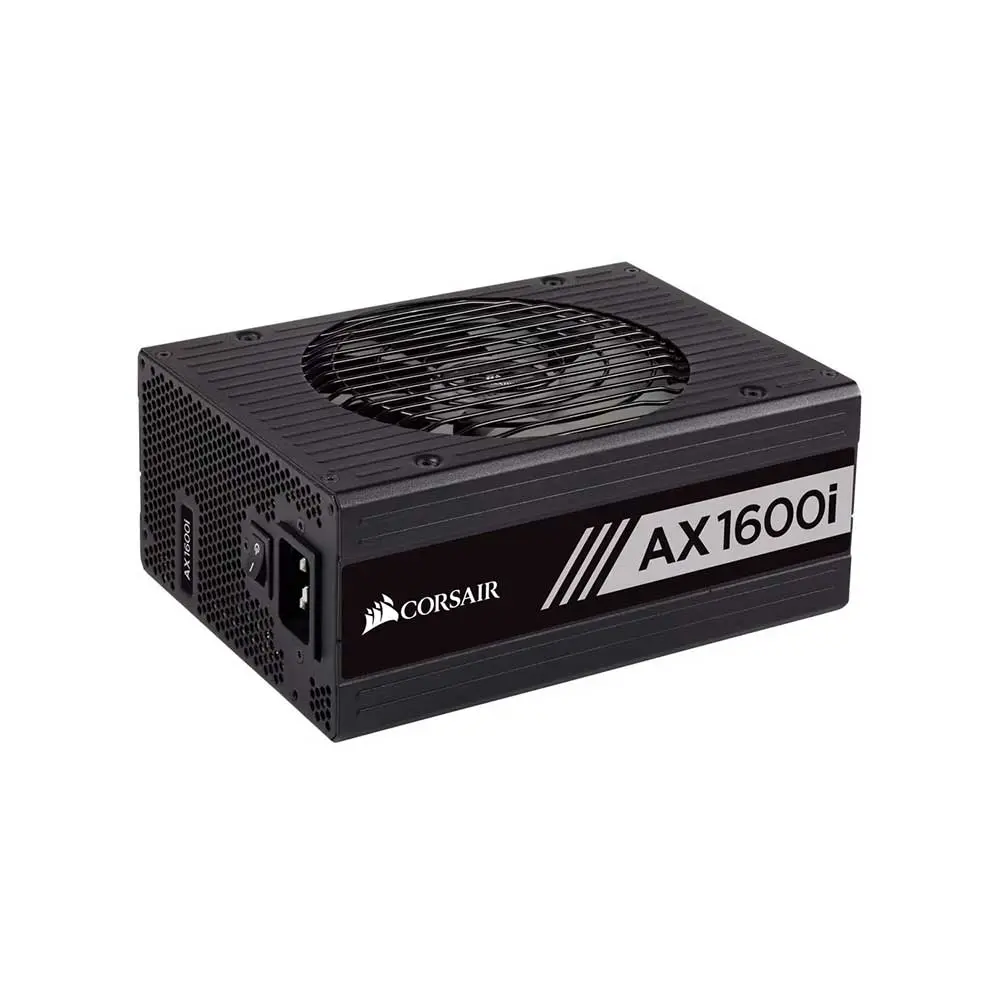

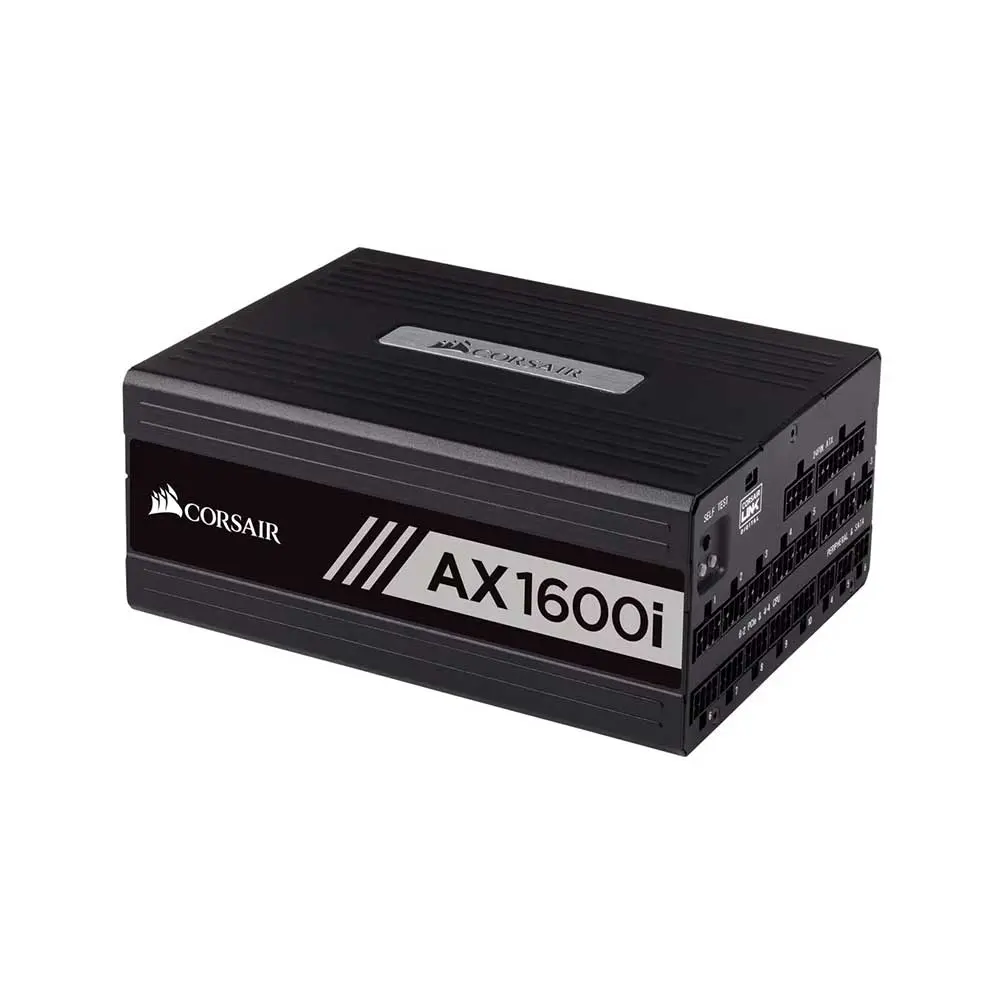

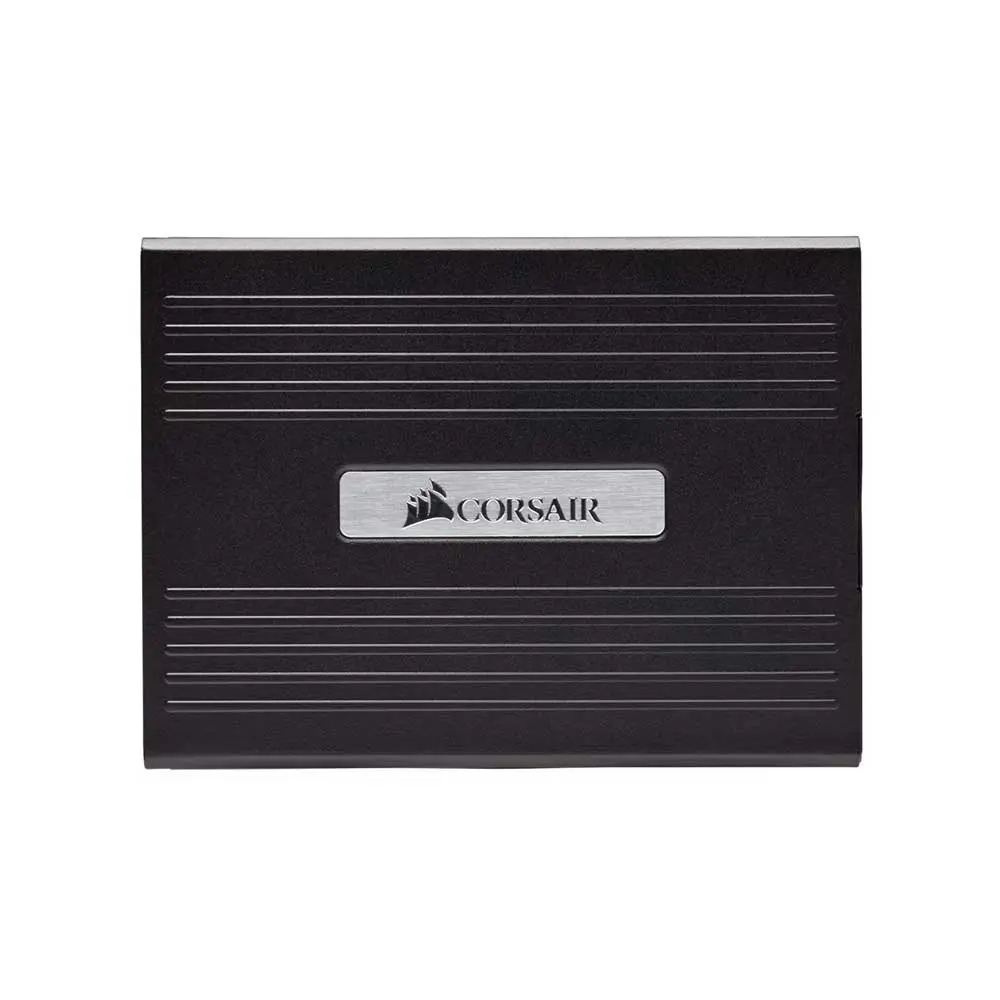

Corsair AX1600i 1600 Watt Digital ATX Fully Modular Power Supply
The Corsair AX1600i 1600 Watt is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.
| Special Technology | DSP, GaN Totem Pole PFC |
| PATA Connector | 9 |
| Protections | OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) |
| EPS Connector | 2 |
| SATA Connector | 16 |
| Fan Bearing Technology | Fluid Dynamic Bearing |
| Modern Standby | No |
| Dimensions | 150mm x 86mm x 200mm |
| Modular | Fully |
| PSU Compatibility | Conforms to ATX12V v2.4 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards | Delivers 1600 watts of co |
| Intel C6C7 Sleep State Compat | Yes |
| Cable Type | Low-Profile, All Black |
| Floppy Connector | 2 |
| PCIe Connector | 10 |
| Zero RPM Mode | Yes |
| PSU Form Factor | ATX |
| Single Multiple 12V Rail Toggl | Yes |
| Multi GPU Ready | Yes |
| Fan Size MM | 140mm |
| Continuous Power W | 1600 Watts |
| ATX Connector | 1 |
| ATX12V Version | v2.4 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Titanium |
| Weight | 5.46 Kg |
| Warranty | 10 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
