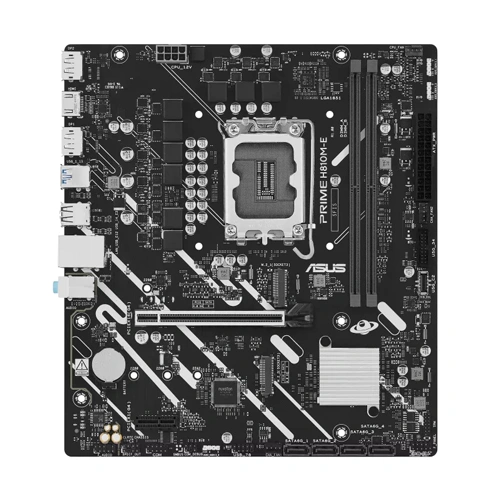

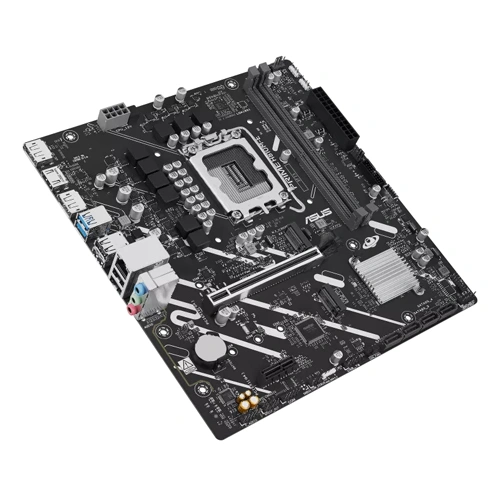

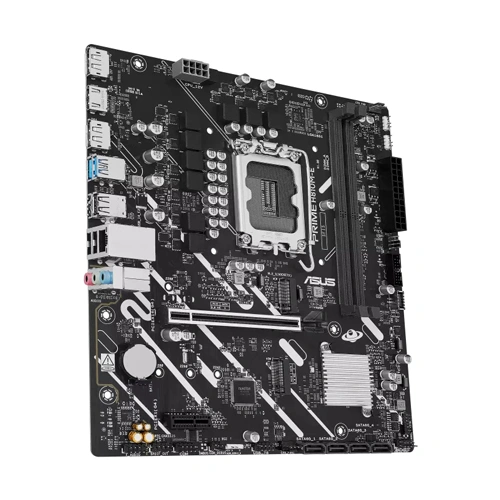

Asus Prime H810M-E DDR5 M-ATX Motherboard
Features:
PRIME H810M-E
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Digital Power Design
Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2).The PRIME H810M-E features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel processors plus steady performance for day-to-day use.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
Two M.2 slots (up to 64Gbps)
PRIME H810M-E offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Cooler by design
The PRIME H810M-E motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
Personalization
The PRIME H810M-E enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | H810 |
| Memory Speed | up to 6400 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) |
| Graphics Port | 2 x DisplayPort,1 x HDMI |
| Expansion Slots | Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel H810 Chipset 1 x PCIe 4.0 x1 slot |

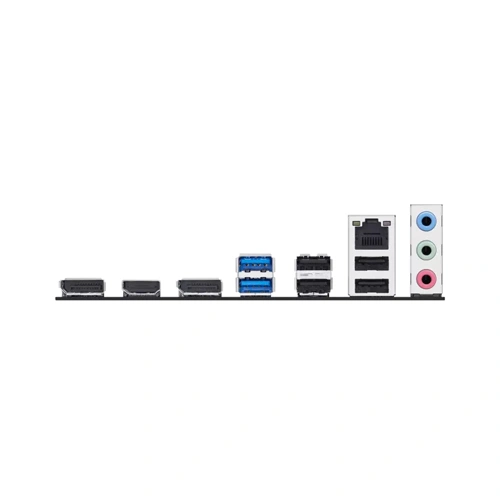

| Back Panel I/O Ports | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connector | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
