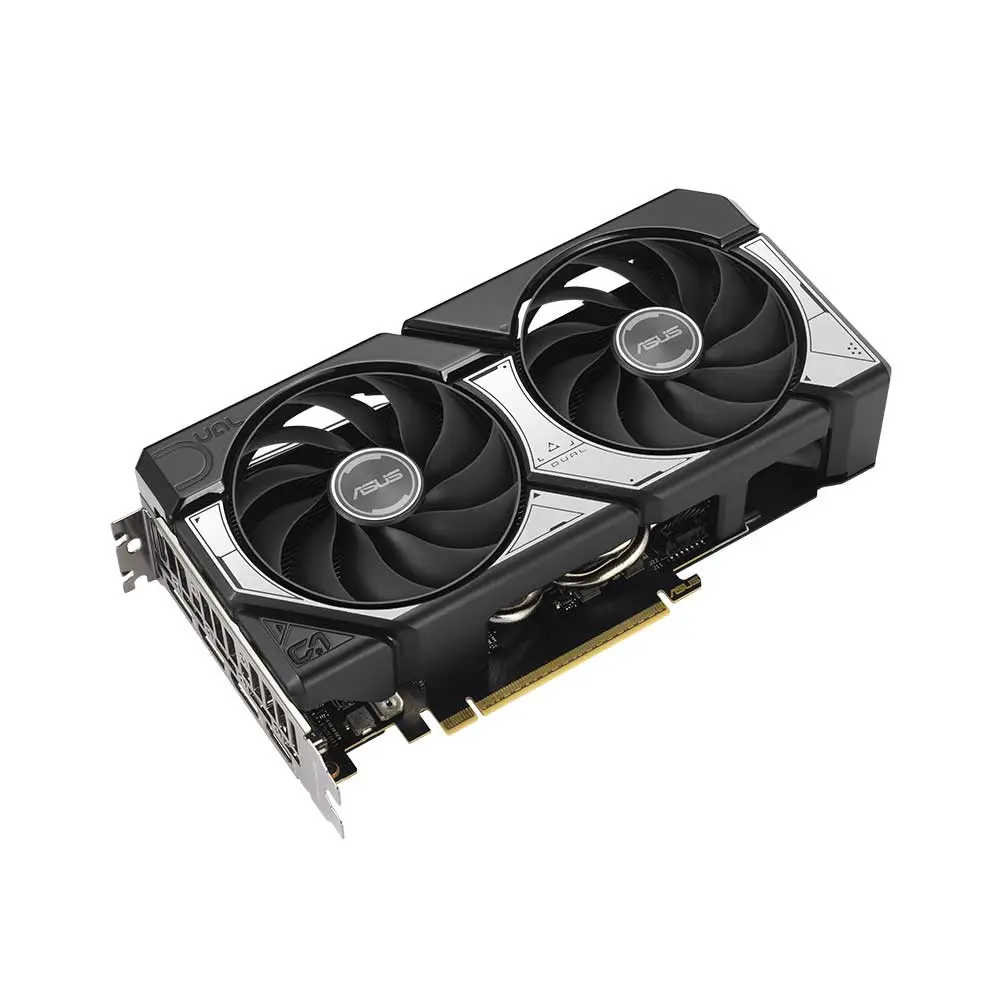

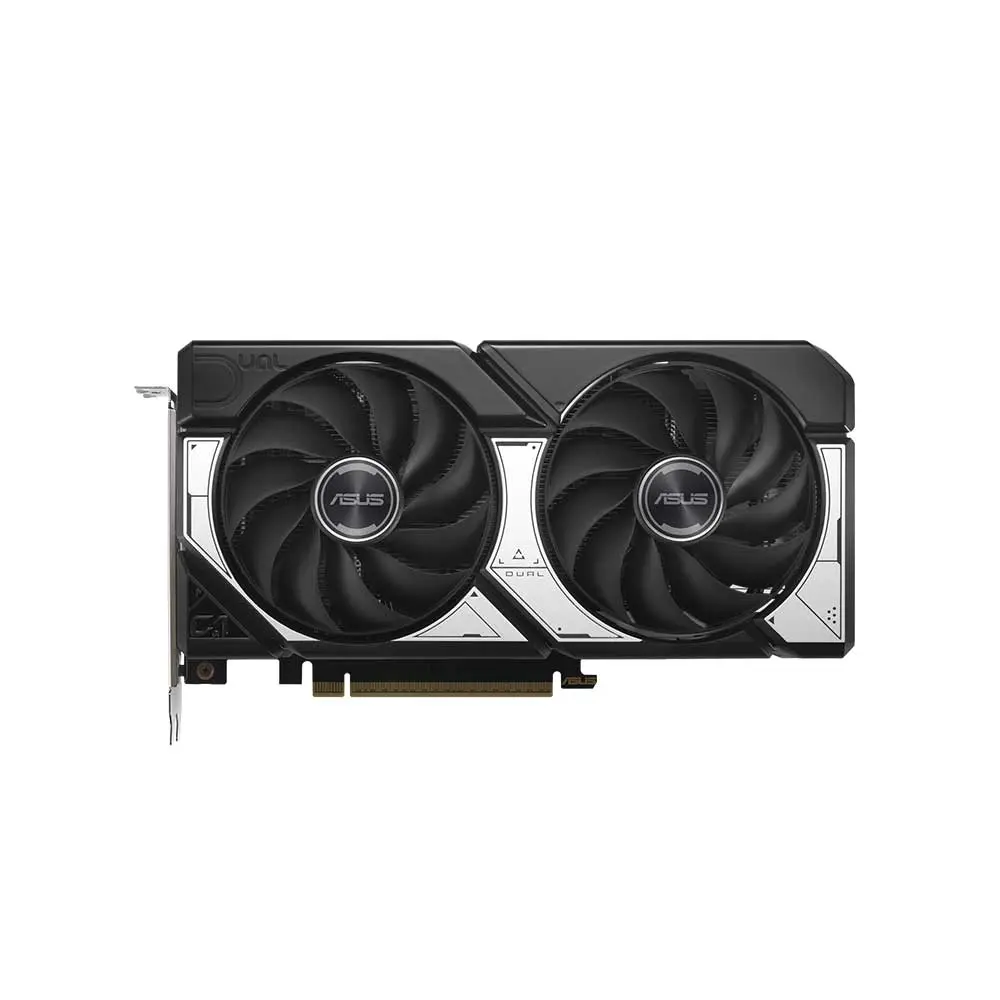

Asus Dual GeForce RTX 5060 Ti 16GB GDDR7 OC Edition Graphics Card
ASUS Dual GeForce RTX™ 5060 Ti 16GB GDDR7 OC Edition with two powerful Axial-tech fans and a 2.5-slot design for broad compatibility
- AI Performance: 767 AI TOPS
- OC mode: 2632 MHz (OC mode)/ 2602 MHz (Default mode)
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
- 0dB technology lets you enjoy light gaming in relative silence.
- Dual BIOS lets you toggle between Quiet and Performance BIOS profiles.
- Dual ball fan bearings last up to twice as long as sleeve bearing designs.
| Model | DUAL-RTX5060TI-O16G |
| Graphic Engine | NVIDIA® GeForce RTX™ 5060 Ti |
| AI Performance | 767 TOPs |
| Bus Standard | PCI Express 5.0 |
| Open GL | Open GL 4.6 |
| Video Memory | 16GB GDDR7 |
| Engine Clock | OC mode: 2632MHz Default mode: 2602MHz (Boost Clock) |
| Cuda Core | 4608 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128 Bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

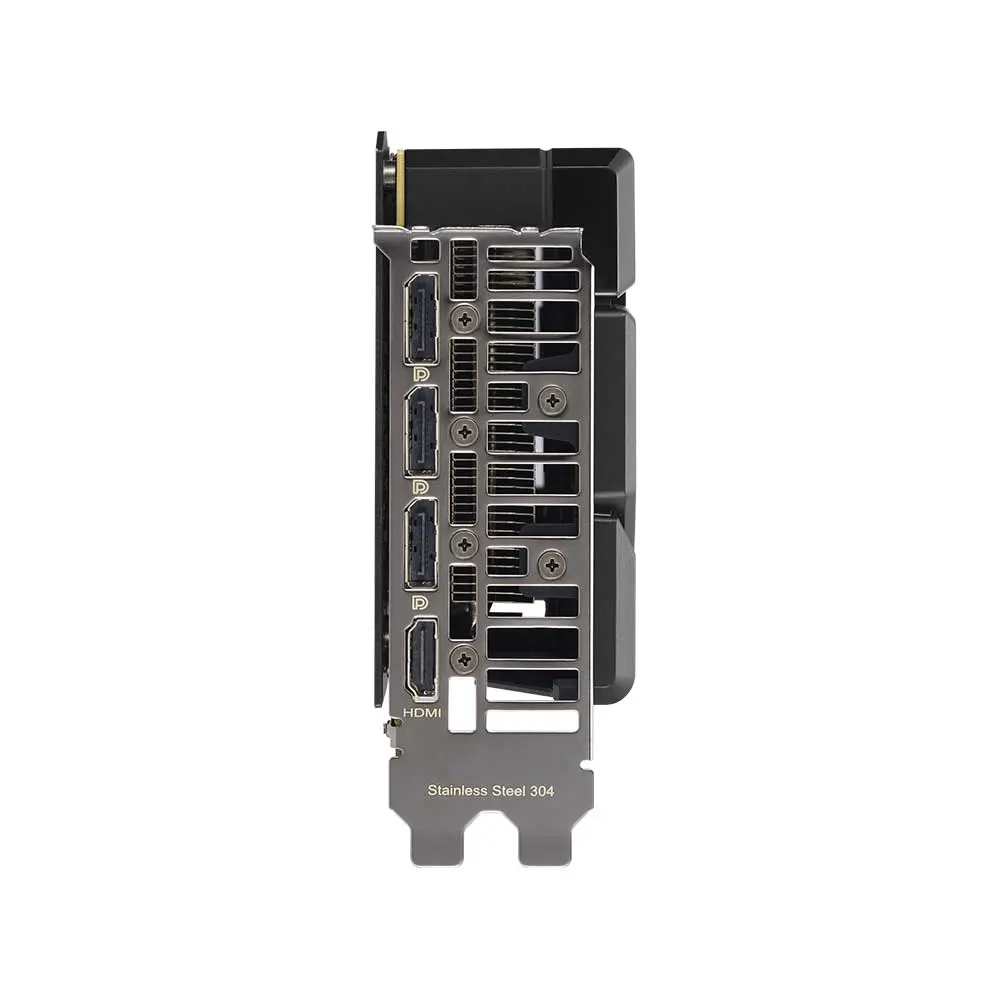

| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual 1 x Thank You Card |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 229 x 120 x 50mm |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| SFF Ready | Compatible |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
