Description

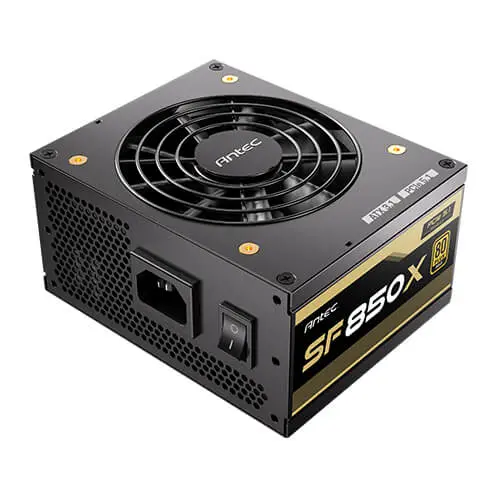

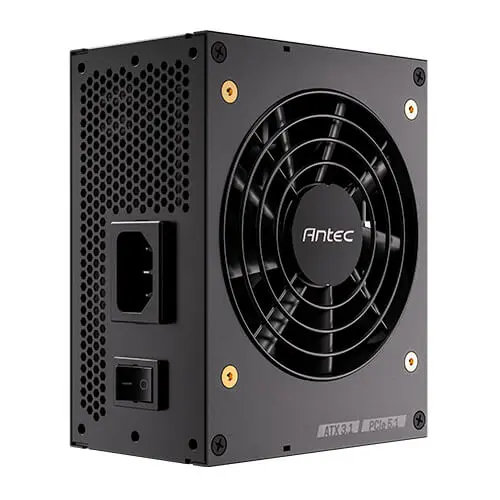

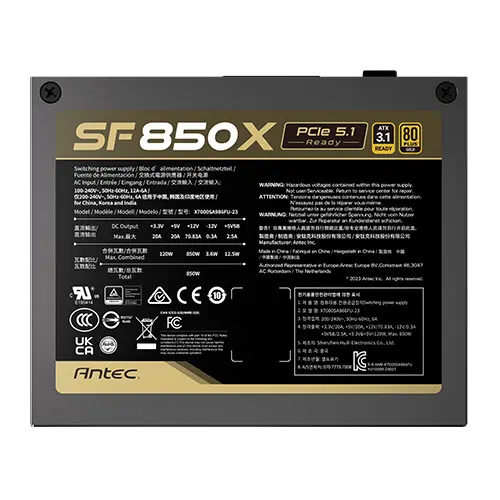

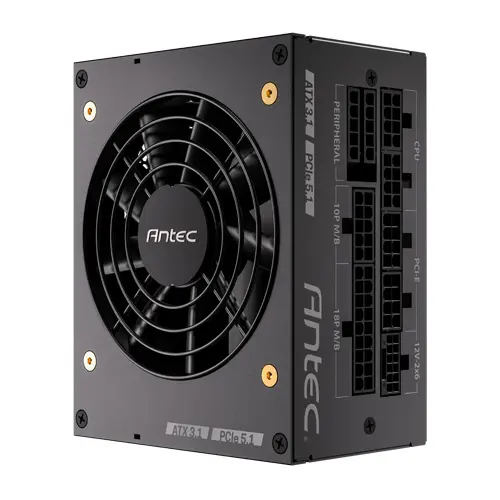

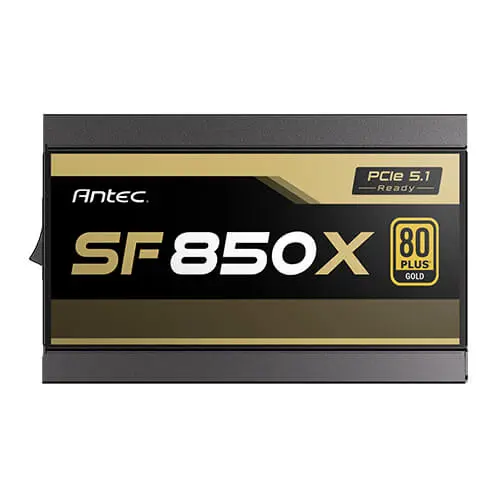

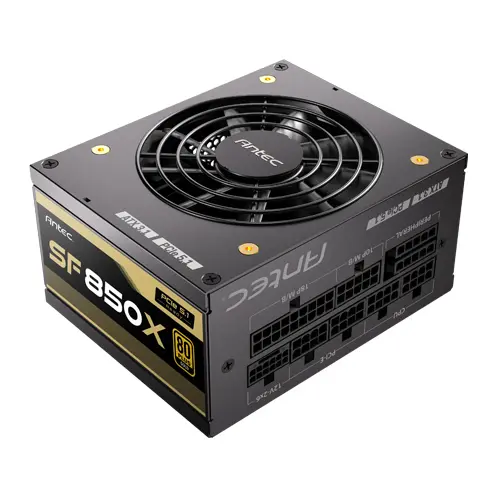

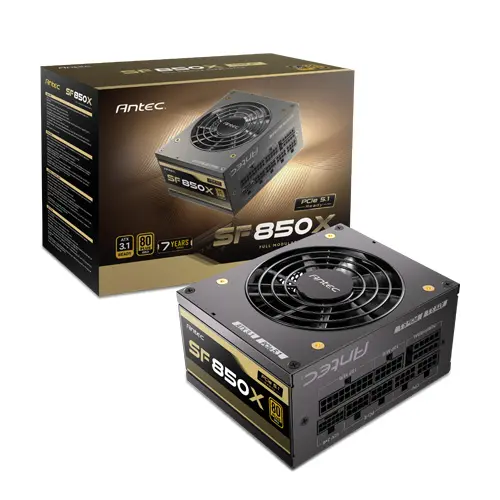

Antec SF850X 850 Watt 80 plus Gold Power Supply
| Model | SF850X 80PLUS Gold |
| Type | ATX 12V 3.1 (SFX 4.1) |
| Dimension | 100 x 125 x 63.5mm (LWH) |
| Modular | Full-Modular |
| Warranty | 7 years |

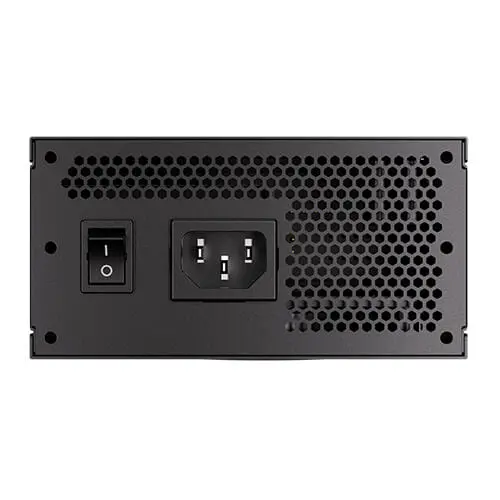

| Input Voltage | 100V-240V |
| Input Current | 12A-6A |
| Input Frequency Range | 60Hz-50Hz |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC BIS / BSMI / KC / UKCA / ICES / CCC |

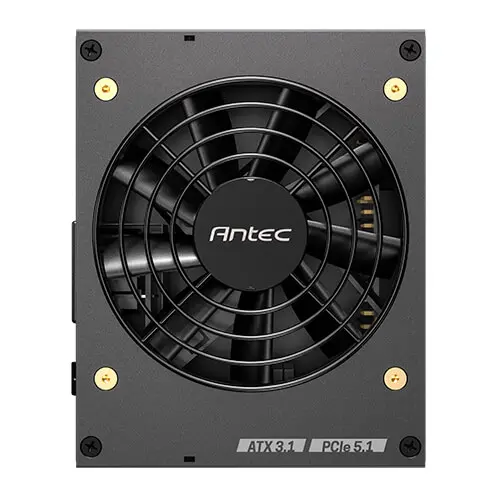

| Fan | 92mm Silent Fan |
| Certifications | 80 Plus Gold |

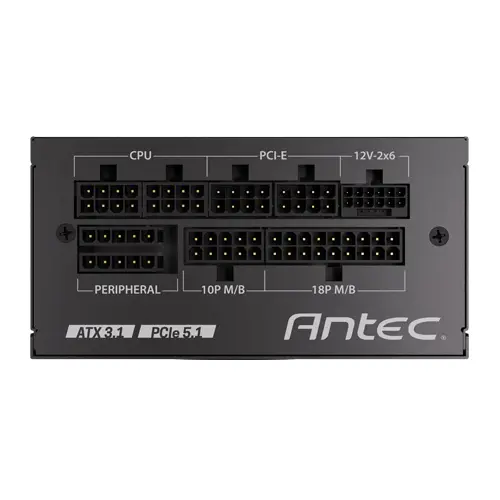

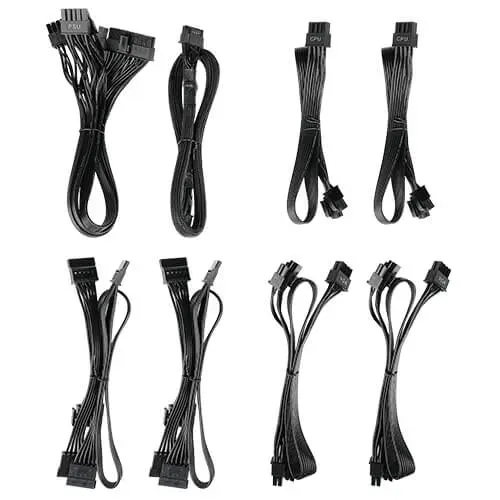

| Connector | 1 x 24(20+4)pin MB |
| 1 x 16(12+4)pin PCIE 5.1 12V-2×6 | |
| 2 x 8(4+4)pin CPU | |
| 4 x 8(6+2)pin PCI-E | |
| 6 x SATA | |
| 2 x Molex | |
| Unit Box Dimensions | 236 x 184 x 106mm (L*W*H) |
| Shipping Box Dimensions | 559 x 500 x 203mm (L*W*H) |
| Net Weight | 1.785kg |
| Gross Weight | 2.12kg |
| UPC# | 0-761345-20024-0 SF850X US 0-761345-20025-7 SF850X JP 0-761345-20026-4 SF850X GB 0-761345-20027-1 SF850X EC 0-761345-20028-8 SF850X AU |
| Warranty | 5 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
