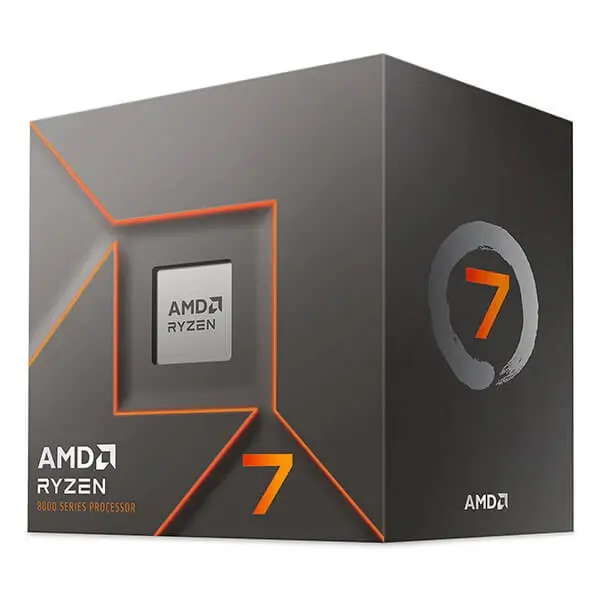

Amd Ryzen 7 8700F Desktop Processor
The AMD Ryzen 7 8700F processor deliver exceptional gaming performance and efficiency. Experience AI acceleration through its Neural Processing Unit (NPU) technology for enhanced software performance. Enjoy smooth and immersive gaming experience.
Specifications:
| Model | AMD Ryzen 7 8700F |
| P/N | 100-100001590BOX |
| Family | Ryzen |
| Series | Ryzen 8000 Series |
| Form Factor | Desktops |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Architecture | Zen 4 |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 5 GHz |
| Base Clock | 4.1 GHz |
| L2 Cache | 8 MB |
| L3 Cache | 16 MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| CPU Compute Die (CCD) Size | 178mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64 |
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 4 (40Gbps) Ports | 2 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 2 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express Version | PCIe 4.0 |
| Native PCIe Lanes (Total/Usable) | 20 , 16 |
| NVMe Support | Boot , RAID0 , RAID1 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 |
| Graphics Capabilities | |
| Graphics Model | Discrete Graphics Card Required |
| AMD SmartAccess Memory | Available |
| AI Engine Capabilities | |
| Brand Name | AMD Ryzen AI |
| AMD Ryzen AI | Available when paired with a compatible Radeon graphics card with AI acceleration |
| Performance | Up to 16 TOPS |
| Security, Virtualization, and Manageability | |
| AMD Enhanced Virus Protection (NX bit) | Yes |
| Warranty | 3 years |
| Note | *** Image use for reference only
*** Features, Price, Specifications are subject to change without notice. |
