Description

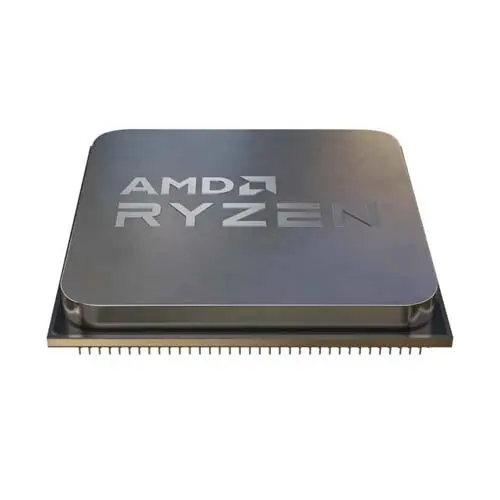

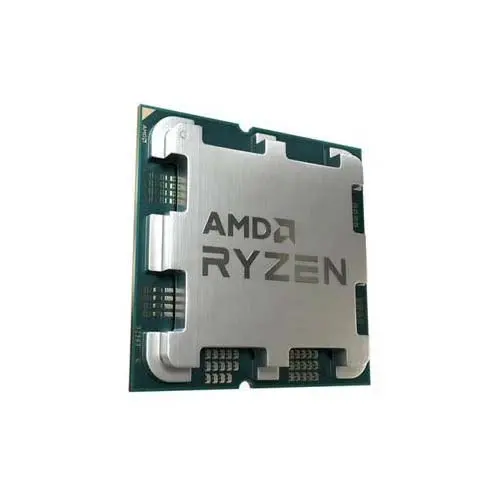

Amd Ryzen 7 7800X3D Gaming Processor Oem Pack No Stock Cooler
The Dominant Gaming Processor, with AMD 3D V-Cache Technology for Even More Game Performance
Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.
Specification :Â
| Platform | Desktop |
| Market Segment | Enthusiast Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 7 Processors |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Architecture | Zen 4 |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 5.0GHz |
| Base Clock | 4.2GHz |
| L1 Cache | 512KB |
| L2 Cache | 8MB |
| L3 Cache | 96MB |
| Default TDP | 120W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 122mm² |
| Package Die Count | 2 |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | X670E |
| X670 | |
| B650E | |
| B650 | |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX( ), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not included |
| Max. Operating Temperature (Tjmax) | 89°C |
| Launch Date | 04-06-2023 |
| *OS Support | Windows 11 – 64-Bit Edition |
| Windows 10 – 64-Bit Edition | |
| RHEL x86 64-Bit | |
| Ubuntu x86 64-Bit | |
| *Operating System (OS) support will vary by manufacturer. | |
| Connectivity | |
| USB Type-C® Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native SATA Ports | 0 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28/24 |
| Additional Usable PCIe Lanes from Motherboard | AMD X670E : 12x Gen4 |
| AMD X670 : 12x Gen4 | |
| AMD B650E : 8x Gen4 | |
| AMD B650 : 8x Gen4 | |
| NVMe Support ” Boot, RAID0, RAID1, RAID10 | |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R : DDR5-5200 |
| 2x2R : DDR5-5200 | |
| 4x1R : DDR5-3600 | |
| 4x2R : DDR5-3600 | |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Integrated Graphics | Yes |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| GPU Base | 400 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
| Product IDs | |
| Product ID Boxed | 100-100000910WOF |
| Product ID Tray | 100-000000910 |
| Key Features | |
| Supported Technologies | AMD EXPO™ Technology |
| AMD Ryzen™ Technologies | |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice. |
