Description

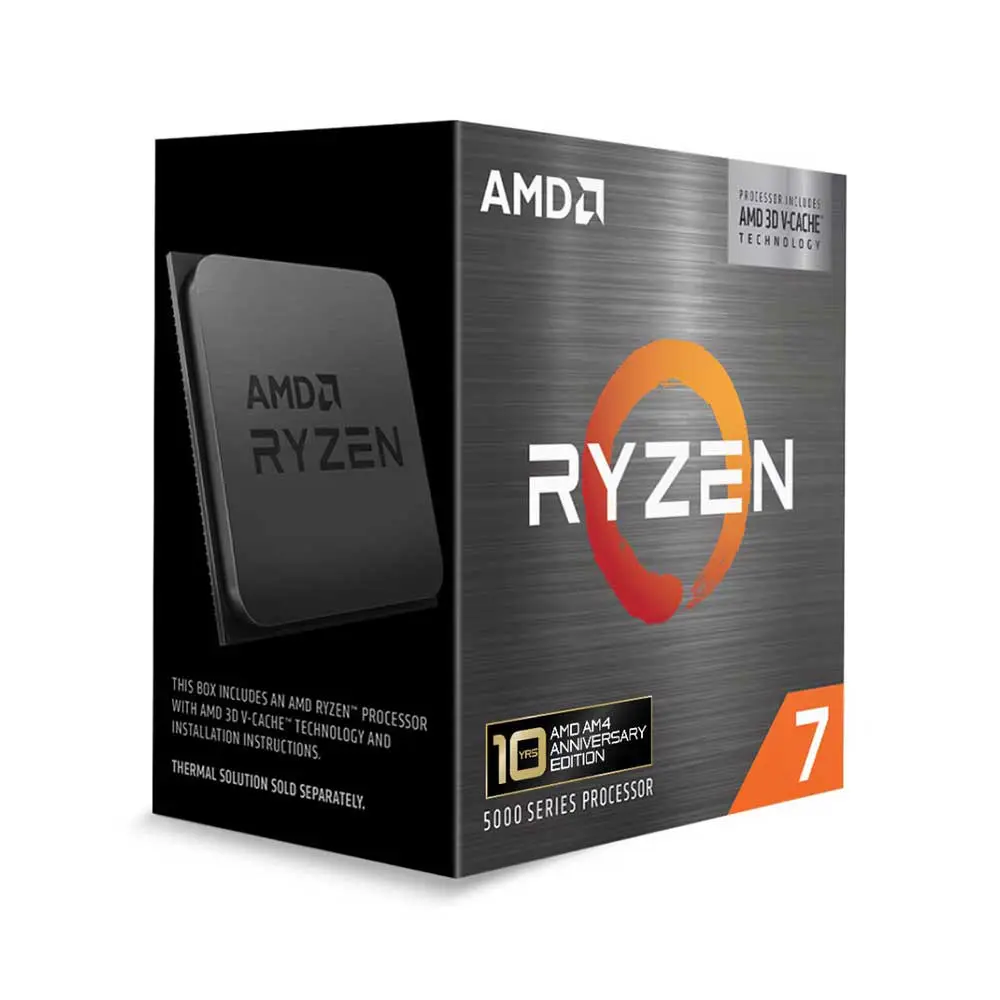

AMD Ryzen 7 5800X3D Desktop Gaming Processor
Ryzen 5000 Series, Vermeer High-End Desktop Processor, Ryzen 7 5800X3D with 8 Cores, 16 Threads at 4.5 GHz, Delivers Remarkable performance and efficiency on the same 7nm FinFet Node.
Specifications:
| General Specifications | |
| Platform | Desktop |
| Market Segment | Enthusiast Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 7 Desktop Processors |
| Commercial Use | No |
| Consumer Use | Yes |
| Former Codename | “Vermeer” |
| Architecture | “Zen 3” |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 4.5GHz |
| Base Clock | 3.4GHz |
| L1 Cache | 512KB |
| L2 Cache | 4MB |
| L3 Cache | 96MB |
| Default TDP | 105W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| Processor Technology for I/O Die | 12nm (Globalfoundries) |
| CPU Compute Die (CCD) Size | 74mm² |
| I/O Die (IOD) Size | 125mm² |
| Package Die Count | 1 |
| CPU Socket | AM4 |
| Socket Count | 1P |
| Supporting Chipsets | X570
X470 B550 B450 A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not included |
| Max. Operating Temperature (Tjmax) | 90°C |
| *OS Support | Windows 11 – 64-Bit Edition
Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| USB Type-C® Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe 4.0 |
| Native PCIe® Lanes (Total/Usable) | 24/20 |
| Additional Usable PCIe Lanes from Motherboard | AMD X570 16x Gen 4
AMD X470 2x Gen 3 AMD X470 8x Gen 2 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR4-3200
2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Integrated Graphics | No |
| Graphics Model | Discrete Graphics Card Required |
| Key Features | |
| Supported Technologies | Windows® 11 Gaming
AMD StoreMI Technology AMD “Zen 3” Core Architecture AMD Ryzen™ VR-Ready Premium |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
