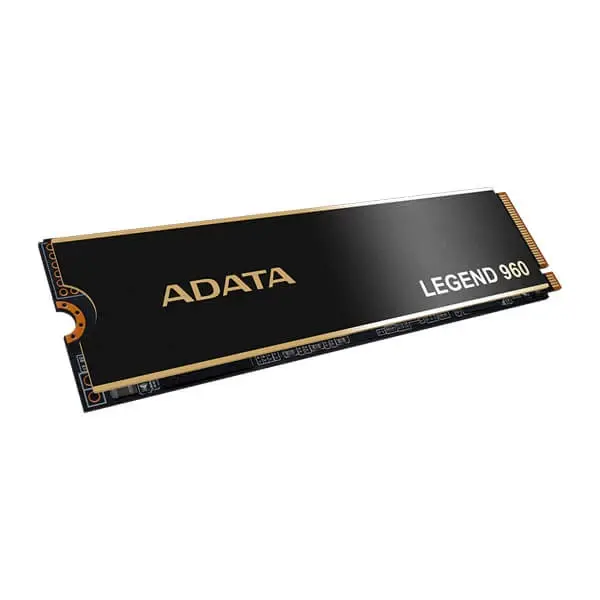

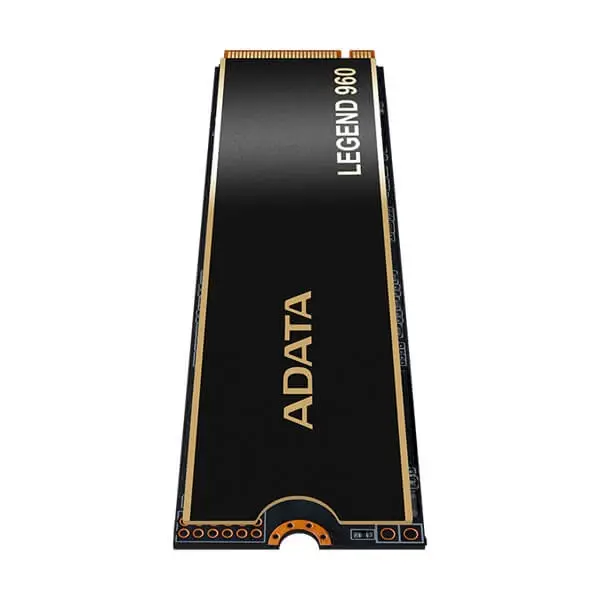

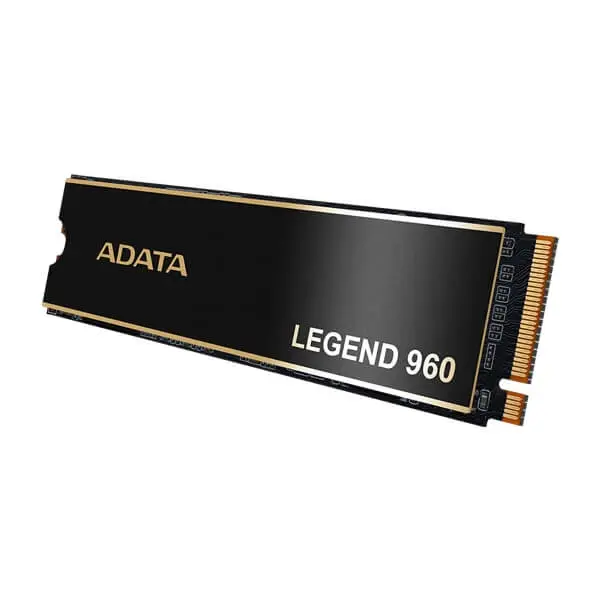

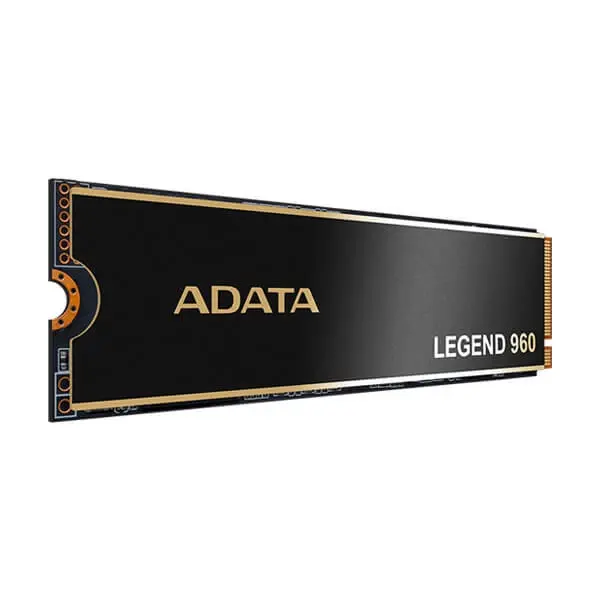

Adata Legend 960 1Tb M.2 Nvme Gen4 Internal Ssd (ALEG-960-1TCS)
Adata Legend 960 1TB SSD is the latest PCIe Gen4 x4 interface, which meets the NVMe 1.4 standard. It offers excellent read and write performance and support for the latest Intel and AMD platforms
Features:
- PCIe Gen4 x4
- Max. read/write speed: 7,400/6,000MB/s
- Capacity: 1TB
- Heatsink provides effective cooling
- Supports latest Intel and AMD platforms
- Work with PS5
- 5-years warranty
Redefining the Speed of Creativity
LEGEND 960 supports the latest PCIe Gen4 x4 interface, which meets the NVMe 1.4 standard. It offers excellent read and write performance, expanded device connectivity, and support for the latest Intel and AMD platforms. Whether on a desktop or notebook PC, get your creativity up to speed.
The Ultimate in Performance
LEGEND 960 delivers sequential read and write speed of 7,400/6,800MB per second, which is up to 4 times faster than a standard PCIe Gen3 SSD and 13 times faster than a SATA SSD. It is backward compatible with PCIe 3.0 and made for creating, whether virtual design, animation, or game development!
Works with PS5
LEGEND 960 supports PCIe 4.0 and works with PS5 consoles as expanded storage. Not only does its size conform to the slot design, it also provides for smooth and non-laggy gaming.
Cool and Cool
The LEGEND 960’s black heat sink design with bronzing trimming and sandblasted surfaces look cool and keep things cool. Through a cutting-edge surface treatment, it dissipates heat incredibly effectively reducing temperature.
The Consummate Professional
LEGEND 960 comes with SLC Caching and DRAM Cache Buffer for advantages in system loading and data caching. It features 4K random read/write of up to 750K/630K IOPS for smoother multitasking.
Create Without Worry
LDPC (Low Density Parity check Code) and AES 256-bit encryption ensure data accuracy and file security.
SSD ToolBox Software
ADATA SSD Toolbox allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used, plus keeps you up-to-date on firmware.
5-Year Warranty
LEGEND series solid state drives use high-quality chips that can withstand the test of time and space. They undergo a rigorous verification and testing process to ensure reliability. If that wasn’t enough, they come backed by a 5-year warranty.
Specifications:
| Model Number | ALEG-960-1TCS |
| Capacity | 1TB |
| Form factor | M.2 2280 |
| NAND Flash | 3D NAND |
| Controller | SMI SM2264 |
| Dimensions (L x W x H) | 80 x 22 x 4.68mm / 3.15 x 0.87 x 0.18inch (with heat sink) 80 x 22 x 3.38mm / 3.15 x 0.87 x 0.13inch (without heat sink) |
| Weight | 11g / 0.39oz (with heat sink) 8g / 0.28oz (without heat sink) |
| Interface | PCIe Gen4 x4 |
| Sequential Read (Max) | Up to 7,400MB/s |
| Sequential Write (Max) | Up to 6,000MB/s |
| 4KB Random Read IOPS(Max) | Up to 750K |
| 4KB Random Write IOPS(Max) | Up to 630K |
| Operating temperature | 0°C – 70°C |
| Storage temperature | -40°C-85°C |
| Shock resistance | 1500G/0.5ms |
| MTBF | 2,000,000 hours |
| Terabytes Written (TBW) | 3,120TB |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
